Запчасти Case IH PATRIOT NT (09-008) - 500-660 GAL PRESSURE COMPONENTS Liquid Plumbing

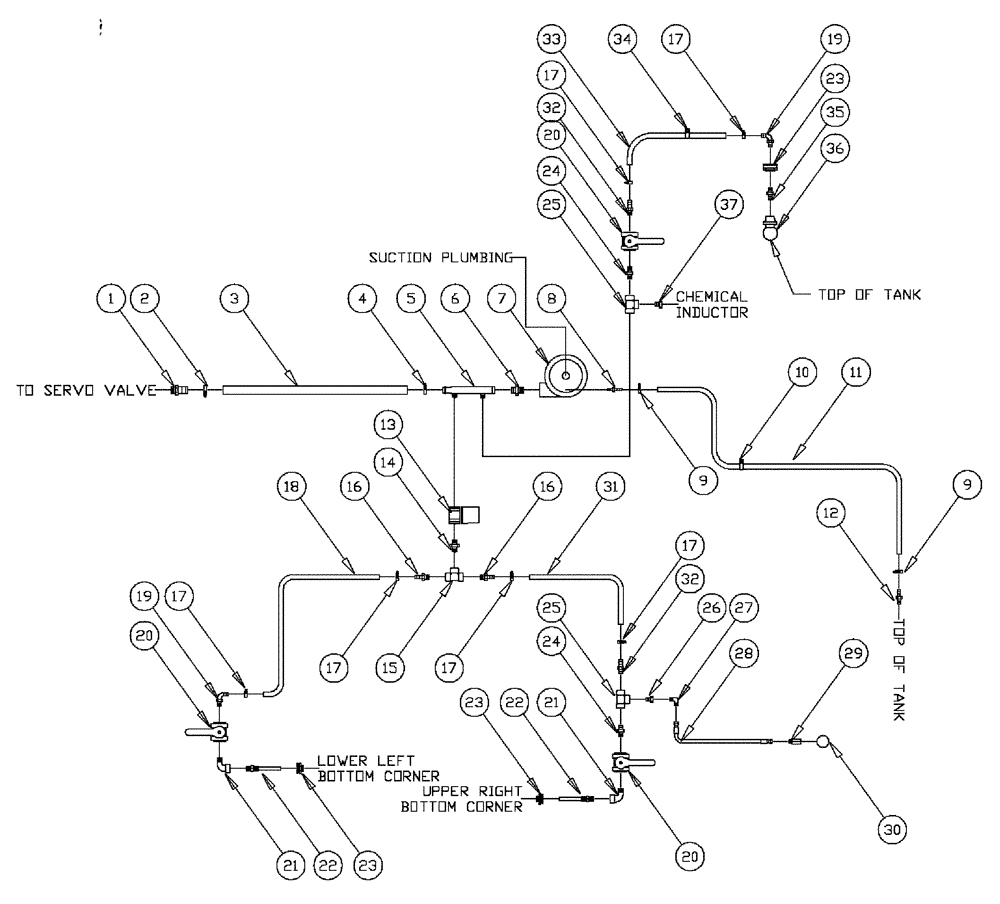

Схема запчастей Case IH PATRIOT NT - (09-008) - 500-660 GAL PRESSURE COMPONENTS Liquid Plumbing
2
25
28
17
17
22
5
35
21
17
15
36
25
17
24
11
24
20
19
13
4
23
23
14
17
37
18
12
6
8
29
17
27
26
30
20
3
1
21
33
20
10
9
16
23
16
22
34
32
31
19
7
9
32

Артикул

Название

Примечание

Количество

1

BN29891

FITTING

Hosebarb 1" NPT x 3", SS

1шт.

2

BN76084

HOSE CLAMP

Adj. #24, SS

1шт.

3

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

4

BN53810

HOSE CLAMP

1.75" ID "T" Bolt

1шт.

5

BN24157

MANIFOLD

Liquid Product 774

1шт.

6

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

7

BN53670

HYDROSTATIC PUMP

Hypro w/HMI Motor

1шт.

BN53670R

REMAN-HYDROSTAT PUMP

PATRIOT NT (3/95 - 5/97)

1шт.

BN53670C

CORE-HYDROSTAT PUMP

Return Number

1шт.

8

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

9

BN76094

HOSE CLAMP

SS #M4

2шт.

10

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

11

BN53785

HOSE,74.00"

1шт.

12

BN53433

FITTING

1/4" NPT x 1/4" Hose Barb, Stainless Steel

1шт.

13

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

14

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

15

BN73629

TEE

1" Poly Pipe

1шт.

16

BN53666

FITTING

Barb - 1 NPT X 3/4 Hose

2шт.

17

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

6шт.

18

BN53783

HOSE

EPDM 3/4" ID X 39"

1шт.

19

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

20

BN73564

VALVE

3/4" Ball Poly 2 Way

3шт.

21

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

22

BN53671

AGITATOR

2шт.

23

BN73563

BULKHEAD

3шт.

24

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

Fitting, NP, 3/4" Short Pipe, Poly

2шт.

25

BN73560

TEE

3/4" NPT, Poly

2шт.

26

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

27

BN53734

ELBOW

Fitting, 90° 1/4" NPT x 9/16" JIC

1шт.

28

BN29999

HOSE

3/8" id EPDM x 260"

1шт.

29

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

1шт.

30

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

31

BN53740

HOSE,0.75" ID x 57.00"

EPDM

1шт.

32

BN73561

FITTING

HB, 3/4NPT X 3/4 HS

2шт.

33

BN53765

HOSE,85.00"

1шт.

34

BN57232

CLAMP

Vinyl Coated 1" DIA.

1шт.

35

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

36

29568

NOZZLE

Rinse 360 Degree

1шт.

37

BN73553

PLUG

3/4" NPT, Poly

1шт.

Выбрано товаров: 39
