Запчасти Case IH PATRIOT NT (09-005) - 24M, 3 BOOM SHUT-OFF, LEFT HAND BOOM Liquid Plumbing

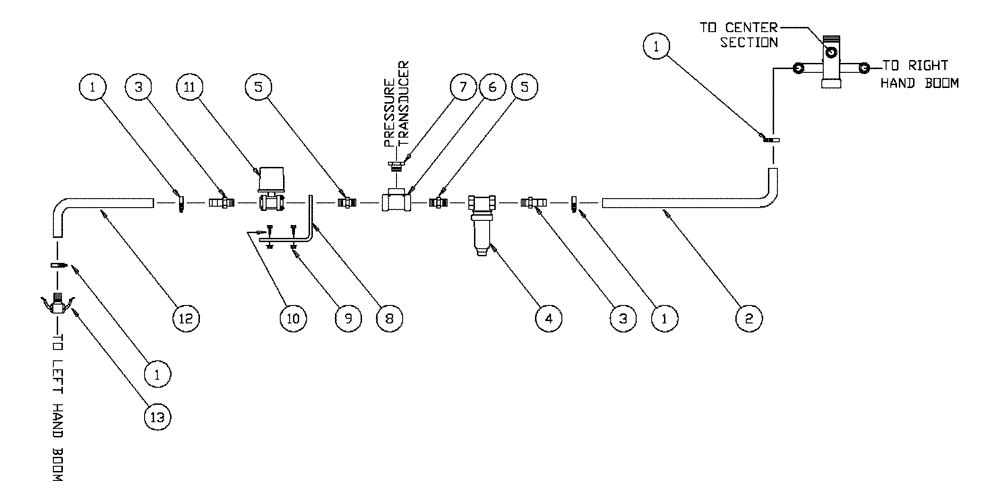

Схема запчастей Case IH PATRIOT NT - (09-005) - 24M, 3 BOOM SHUT-OFF, LEFT HAND BOOM Liquid Plumbing
1
4
3
11
5
1
6
1
10
5
7
13
9
3
8
1
2
12

Артикул

Название

Примечание

Количество

1

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

2

BN53885

1" EPDM X 156"

1шт.

3

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

4

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

5

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

6

BN73629

TEE

1" Poly Pipe

1шт.

7

BN53665

BUSHING

1" x .75 Poly

1шт.

8

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

9

BN50051

NUT,1/4"-20, USR

2шт.

10

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

11

87389559

VALVE

Electric, 1" Ball

1шт.

12

BN53911

1" ID EPDM X 128"

1шт.

13

BN53668

COUPLING

1" Female, HS SHK

1шт.

Выбрано товаров: 13
