(09-003) - 24M, 20” SPACING, 3-WAY NOZZLE, RIGHT & LEFT HAND / 3 BOOM SHUT-OFF

Запчасти Case IH PATRIOT NT (09-003) - 24M, 20” SPACING, 3-WAY NOZZLE, RIGHT & LEFT HAND / 3 BOOM SHUT-OFF Liquid Plumbing

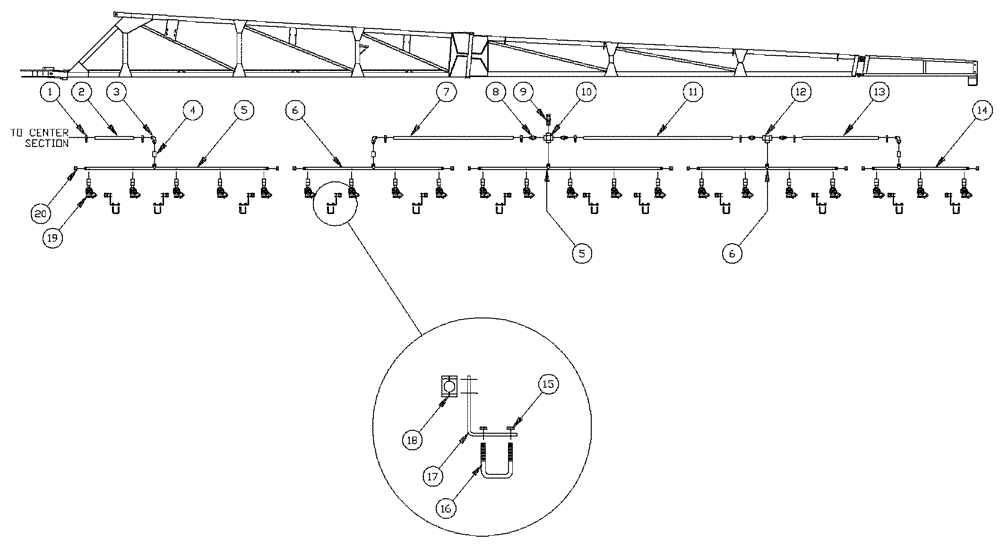

Схема запчастей Case IH PATRIOT NT - (09-003) - 24M, 20” SPACING, 3-WAY NOZZLE, RIGHT & LEFT HAND / 3 BOOM SHUT-OFF Liquid Plumbing
8
6
7
5
19
20
18
2
11
10
6
3
4
13
15
12
9
5
14
17
1
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN75990

HOSE CLAMP

#16, Stainless Steel

8шт.

2

BN53820

EPDM 1" ID x 92"

1шт.

3

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

3шт.

4

BN66968

COUPLING

1" Poly

3шт.

5

BN69756

BOOM

Wet 20" Spacing

2шт.

6

BN69755

Wet 20" Spacing

2шт.

7

BN69393

HOSE

1" EPDM X 58"

1шт.

8

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

10

BN53663

COUPLING

Cross - 1" NPT Poly

1шт.

11

BN69392

1" EPDM X 97"

1шт.

12

BN73629

TEE

1" Poly Pipe

1шт.

13

BN69391

1" EPDM X 96"

1шт.

14

BN69754

BOOM

Wet 20" Spacing

1шт.

15

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

24шт.

16

BN53731

U-BOLT

3/8" - square bend 2" ID

12шт.

17

BN65315

MOUNTING PLATE

1/4" HR 1.25 X 9.5

12шт.

18

BN65324

CLAMP

1" OD, Poly

12шт.

19

BN65323

Assembly - Nozzle (3-Way) 3/4 Pipe

21шт.

20

BN73571

CAP

3/4" NPT

10шт.
