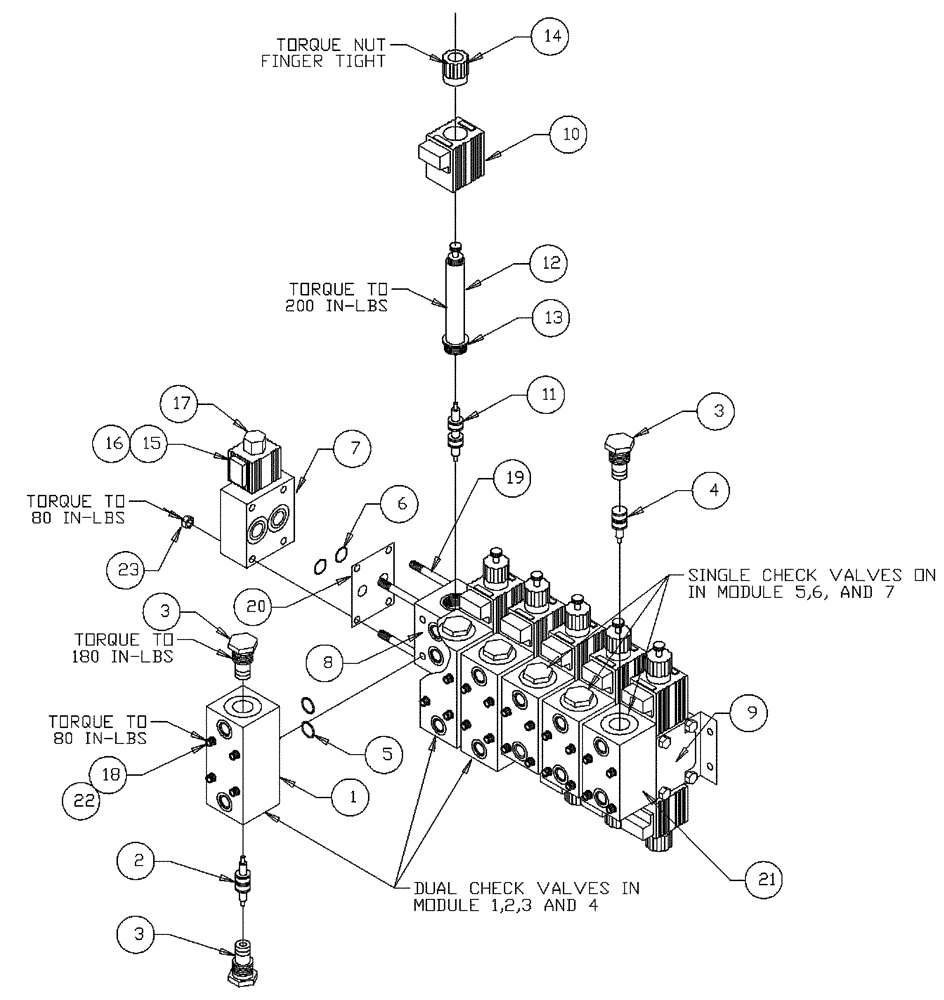

Запчасти Case IH PATRIOT NT (06-010) - VALVE 6-BANK DIRECTIONAL Hydraulic Plumbing

1

BN98677

BLOCK

Check (Dual)

3шт.

2

BN98679

CHECK VALVE

Piston, Dual, 29345

3шт.

3

BN98227

VALVE

Check, 30 PSI (Top & Bottom on Dual Check Module 1, 2, 3, & 4. Top Only on Single Check Module #5, #6, #7)

9шт.

3

BN98219

SEAL KIT

For BN98227

9шт.

Service Parts For Ref. 3

1шт.

4

BN98680

PISTON

(For Single Check)

3шт.

5

BN98225

O-RING

Stacking Valve #29345

12шт.

6

BN98226

O-RING

Sandwich Valve #29345

12шт.

7

BN98336

HYDRAULIC VALVE

Block - Unloader

1шт.

Includes Refs. 15, 16, & 17

1шт.

8

BN98325

BLOCK

Centers

5шт.

9

BN98324

BLOCK

End

1шт.

10

BN98222

COIL

W/Wire Leads & Packard Ends

12шт.

11

BN98220

SPOOL

6шт.

12

BN98221

TUBE

Assy

12шт.

Includes Ref. 13

1шт.

13

BN98224

O-RING

Tube Assy #98221

12шт.

14

BN98223

NUT

12шт.

15

BN98212

COIL

12 VDC Unloader Valve - W/Wire Leads & Packard Ends

1шт.

16

BN98217

CARTRIDGE

Unloader Valve #29345

1шт.

16

BN98219

SEAL KIT

For BN98217

1шт.

Service Parts For Ref. 16

1шт.

17

BN98218

NUT

Unloader Valve #29345

1шт.

18

BN50799

SCREW,1/4" - 20 x 2 1/4", Stainless

1/4 - 20 X 2.25 SS

24шт.

19

69399

Threaded -1/4-20 x 14" (6 Bank)

4шт.

20

86986508

PLATE

Backing, Anodized

6шт.

21

BN98678

BLOCK

Check (Single)

3шт.

22

280129

NUT,1/4"-20

4шт.

23

BN50139

WASHER

1/4" spring lock

24шт.
