Запчасти Case IH PATRIOT NT (05-001) - POWER WHEEL HUB (AUBURN) - MODEL 7 Hub, Wheel & Tires

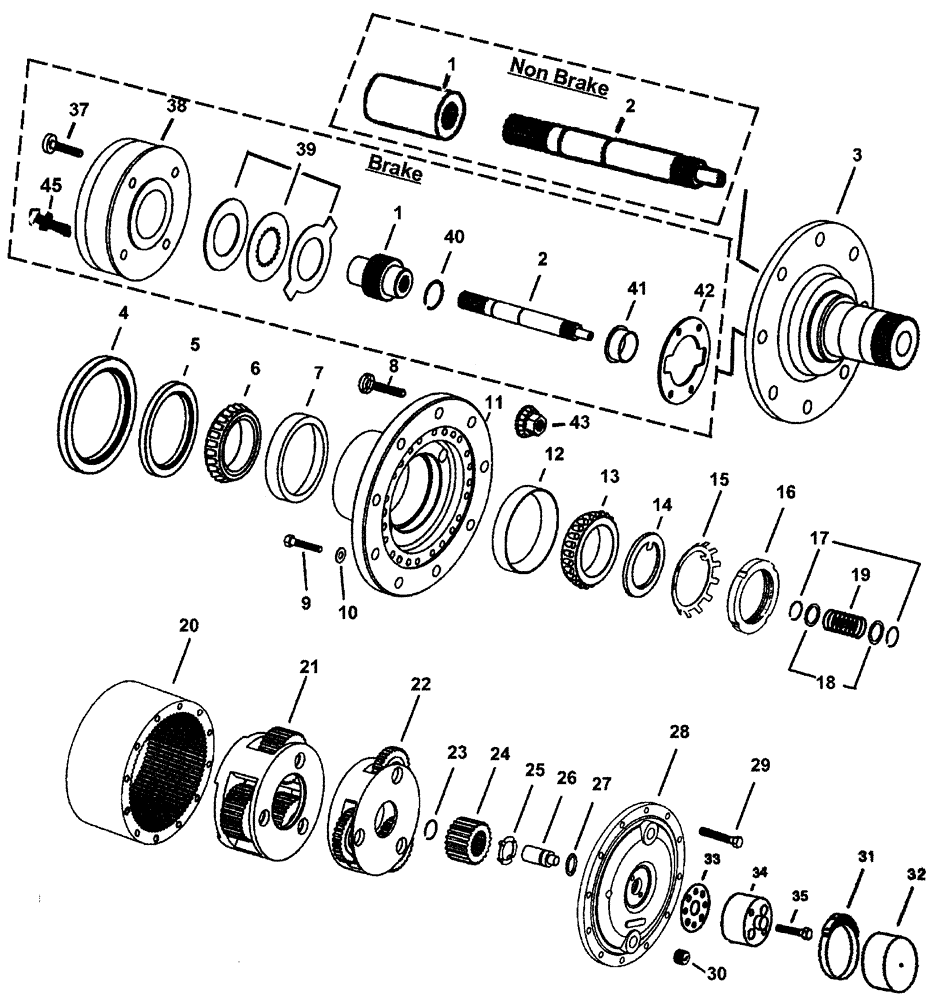

Схема запчастей Case IH PATRIOT NT - (05-001) - POWER WHEEL HUB (AUBURN) - MODEL 7 Hub, Wheel & Tires
19
2
37
38
9
1
30
1
27
22
32
5
13
2
12
24
35
34
31
26
23
25
18
21
14
39
10
42
6
45
33
8
28
40
17
43
20
29
3
41
11
16
15
4
7

Артикул

Название

Примечание

Количество

1

BN98370

COUPLING

Non Brake Unit (Non Brake)

1шт.

2

BN98793

SHAFT

Input - (15:1, 19:1, 21:1, 24:1) (Non Brake)

1шт.

2

BN98731

SHAFT

Input- (32:1, 28:1) (Non Brake)

1шт.

3

BN98732

SPINDLE

(Non Brake)

1шт.

1

BN98488

COUPLING

Brake Unit (Brake)

1шт.

2

BN98794

SHAFT

Input- Brake (19:1, 21:1, 24:1) (Brake)

1шт.

2

BN98795

SHAFT

Input- Brake (28:1)(Brake)

1шт.

3

BN98798

SPINDLE

Brake Unit (Brake)

1шт.

4

BN98740

SEAL

Trash

1шт.

4

BN98855

SEAL KIT

Spindle

1шт.

Associated Part Of Trash Seal, P/N BN98740

1шт.

Includes: 98809 Sealing Compound and Refs. 5, 15, 27

1шт.

4

BN98802

SEAL KIT

Bearing

1шт.

Associated Part Of Trash Seal, P/N BN98740

1шт.

Includes: 98809 Sealing Compound and Refs. 5, 6, 7, 12, 13, 15, 27

1шт.

5

BN98723

SEAL

Oil

1шт.

6

BN98738

ROLLER BEARING,73.03mm ID x 30.16mm W

Inner

1шт.

7

513379

BEARING CUP,117.47mm OD x 23.81mm W

Inner

1шт.

8

BN50791

BOLT

Wheel - 9/16-18 x 2 3/4 Gr. 8

9шт.

9

BN66932

BOLT

Hex Head Gr. 8

18шт.

10

BN98494

WASHER

flat

18шт.

11

BN98734

HUB

1шт.

12

BN276477

BEARING CUP

Race, Timken 3920

1шт.

13

BN98736

ROLLER BEARING

Outer

1шт.

14

BN98741

WASHER

Thrust

1шт.

15

BN98742

LOCK WASHER

1шт.

16

BN98743

BEARING LOCK NUT

Bearing

1шт.

17

BN98495

SNAP RING

Retaining

2шт.

18

BN98496

WASHER

2шт.

19

BN98497

SPRING

Disengage

1шт.

20

BN98744

RING GEAR

1шт.

21

BN98796

CARRIER

secondary assembly (15:1 ratio)

1шт.

21

BN98797

CARRIER

Secondary Assembly (19:1, 21:1, 24:1, 28:1)

1шт.

21

BN98745

CARRIER

(32:1)

1шт.

22

BN66065

CARRIER

Primary Assembly - 32:1 ratio (3 gears, 30 teeth each, Secondary sun gear -16 teeth)

1шт.

22

BN66067

CARRIER

28:1 ratio (3 gears, 30 teeth each, Secondary sun gear -19 teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22

BN66069

CARRIER

Primary Assembly - 24:1 Ratio (3 Gears-28 Teeth Each) Secondary Sun Gear - 19 Teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22

BN66071

CARRIER

19:1 ratio (3 gears, 26 teeth each, Secondary sun gear -19 teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22

BN67199

CARRIER

21:1 ratio (3 gears, 27 teeth each, Secondary sun gear -19 teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

22

BN67167

CARRIER

15:1 ratio (3 gears, 24 teeth each, Secondary sun gear - 22 teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

23

BN98730

RETAINER

(w/Brake 28:1, 32:1)

1шт.

23

BN98792

RETAINER

(w/o Brake 15:1, 19:1, 21:1, 24:1) (w/Brake 19:1, 21:1, 24:1)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24

BN67166

GEAR

Primary Sun Ratio (28 teeth)

1шт.

24

BN66070

SUN GEAR

Primary, 19:1 Ratio (25 teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24

BN67198

SUN GEAR

Primary, 21:1 Ratio (22 teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24

BN66068

GEAR

Primary Sun, 24:1 Ratio (19 teeth

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24

BN66064

SUN GEAR

Primary, 28:1 Ratio (16 teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

24

BN66064

SUN GEAR

Primary, 32:1 Ratio (16 teeth)

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

25

BN98501

THRUST WASHER

1шт.

26

BN98728

PLUNGER

disengage

1шт.

27

BN98729

SEAL

plunger

1шт.

28

BN98733

COVER

1шт.

29

87657

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

8шт.

30

BN98487

PLUG

magnetic

1шт.

31

BN67578

CLAMP

plastic

1шт.

32

BN27372

CAP

hub cover

1шт.

33

BN98506

GASKET

quick release hub

1шт.

34

BN98860

COUPLING

Quick Disconnect

1шт.

35

BN50561

Hex Head

2шт.

36

BN98850

COUPLING

Quick Disconnect Assy

1шт.

Includes Refs. 33, 34, 35

1шт.

37

BN98839

SCREW

Torx Head T-50 (Brake)

4шт.

38

BN66933

BRAKE

Piston Assembly (Brake)

1шт.

39

BN98424

BRAKE

Disc Pack (Brake)

1шт.

40

BN98828

SNAP RING

Retaining (Brake)

1шт.

41

BN98467

BUSHING

Sleeve - Bearing (Brake)

1шт.

42

BN98801

GASKET

Brake (Brake)

1шт.

43

BN315227

WHEEL NUT

Flanged Wheel, 9/16"-18

9шт.

45

BN68545

BLEEDER

(Brake)

1шт.

46

BN66382

HUB

Power Complete - No Brake 19:1 Ratio

1шт.

Not Shown

1шт.

47

BN65586

Power Hub Complete - w/Brake 19:1 Ratio

1шт.

Not Shown

1шт.

48

BN66385

HUB

Power Complete - No Brake 21:1 Ratio

1шт.

Not Shown

1шт.

49

BN66384

Power, Complete - w/Brake 21:1 Ratio

1шт.

Not Shown

1шт.

50

BN66380

HUB

Power, Complete - No Brake 24:1 Ratio

1шт.

Not Shown

1шт.

51

BN313879

PACKAGE

Hub, Power Complete - With Brake 24:1 Ratio

1шт.

Not Shown

1шт.

52

BN66386

HUB

Power, Complete - No Brake 15:1 Ratio

1шт.

Not Shown

1шт.

53

BN66060

HUB

Power, Complete - w/Brake 28:1 Ratio

1шт.

Not Shown

1шт.

54

BN63705

HUB

Power, Complete - No Brake 32:1 Ratio

1шт.

Not Shown

1шт.

55

BN315227

WHEEL NUT

Flanged Wheel, 9/16"-18

36шт.

Not Shown

1шт.

56

BN98809

SEAL

1шт.

Not Shown

1шт.

Выбрано товаров: 102
