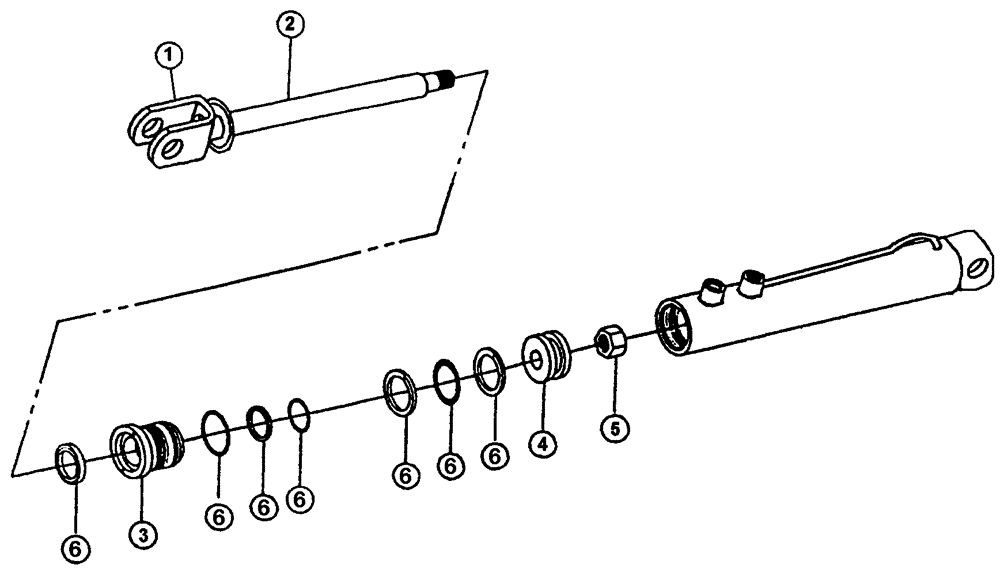

Запчасти Case IH PATRIOT NT (07-005) - STEERING CYLINDER ((2"X12")-1 1/4" DIA. ROD) Cylinders

1

BN92395

CLEVIS

1шт.

2

BN98685

Rod - Cylinder

1шт.

3

BN98522

GLAND

End, For Cylinder BN52305

1шт.

4

BN98523

PISTON

for cylinder BN52305

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

BN98178

SEAL KIT

1шт.

Complete Seal Kit. Parts Are Shown For The Screw-On End Gland. When Replacing - Take Note On How Old Seals Are Positioned.

1шт.
