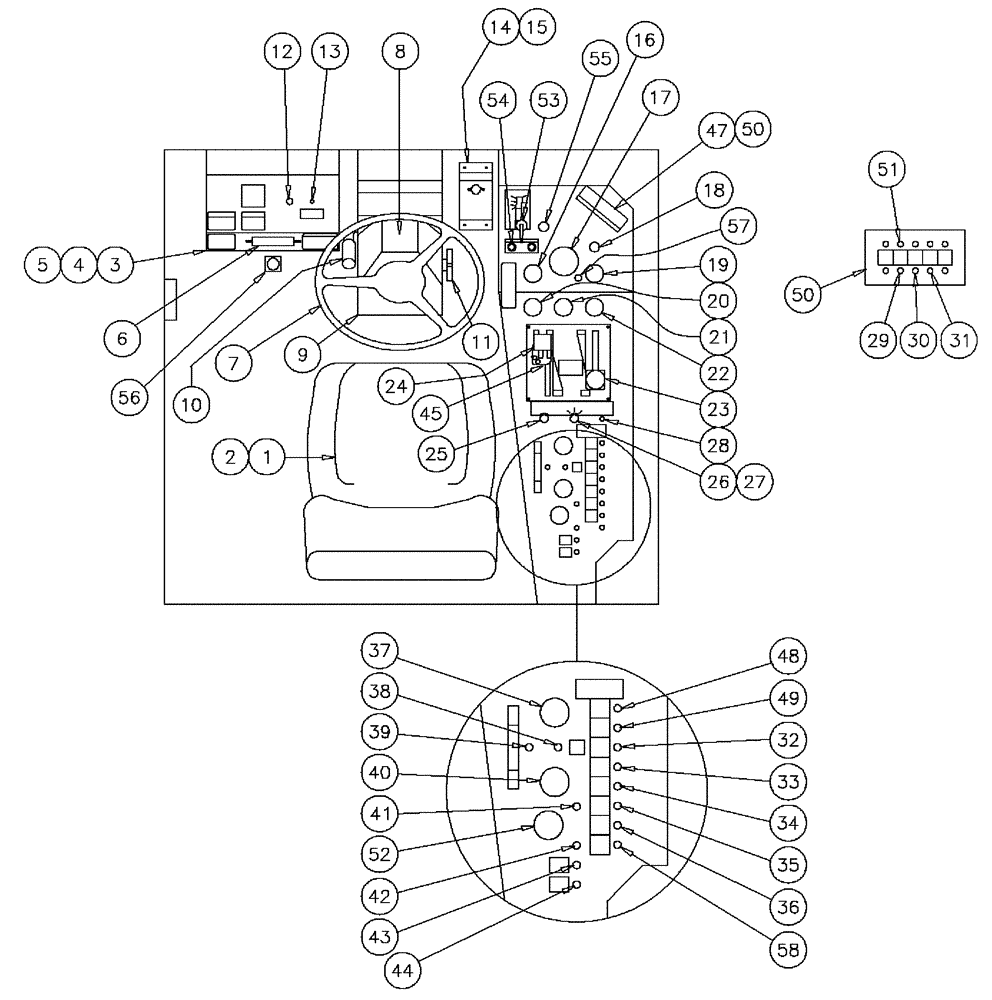

Запчасти Case IH PATRIOT NT (01-002) - CONTROLS IDENTIFICATION Cab Interior

1

BN68852

SEAT

Magnum 200 (Gray)

1шт.

2

BN29361

SAFETY BELT

Retractable BL

1шт.

2

BN25964

Seat

2шт.

Associated Part Of Seat Belt, P/N BN29361

1шт.

3

BN29194A

CONSOLE

Radio

1шт.

4

BN29329

COVER

, Serial Range: (Access-Radio)

1шт.

5

BN21559

HOLDER

Manuals

1шт.

6

BN57219

RADIO

JVC AM-FM-Cassette

1шт.

6

BN57220

SPEAKER

JVC (Set of 2)

1шт.

Associated Part Of Seat Belt, P/N BN29361

1шт.

6

BN57222

ANTENNA

Radio

1шт.

Associated Part Of Seat Belt, P/N BN29361

1шт.

7

BN27313

STEERING WHEEL

16" Dia.

1шт.

7

BN27314

CAP

Steering Wheel

1шт.

Associated Part Of Steering Wheel, P/N BN27313

1шт.

7

BN29232

JAM NUT

Steering Wheel

1шт.

Associated Part Of Steering Wheel, P/N BN27313

1шт.

7

BN29235

STEERING COLUMN

1шт.

Associated Part Of Steering Wheel, P/N BN27313

1шт.

8

BN29179

MOUNTING PLATE

Steerng Control

1шт.

9

BN29181

Steering Column (Lower)

1шт.

10

BN29274

GRIP

Black-Vinyl, .5 id x 4" Long

1шт.

10

BN29178

PIN

Tilt Steer

2шт.

Associated Part Of Grip - Tilt Steering Column, P/N BN29274

1шт.

10

BN30670

SPRING

Tilt Steer

2шт.

Associated Part Of Grip - Tilt Steering Column, P/N BN29274

1шт.

11

BN29392

KNOB

3" With 3/8"-16 Female Thread

1шт.

11

BN50777

BOLT

Carriage

1шт.

Associated Part Of Door - Complete, P/N BN25951

1шт.

12

BN29780

INDICATOR LIGHT

Red, 12V

1шт.

13

BN21563

SWITCH

On-Off

1шт.

13

BN29198

COVER

Parking Brake Switch

1шт.

Associated Part Of Switch - Parking Brake, P/N BN21563

1шт.

14

BN29618

MOUNTING PLATE

10 ga HRS 3.5 x 10.5

1шт.

15

BN29522

SWITCH

Dimmer Floor Mount

1шт.

16

BN29465

GAUGE

Restriction Indicator-Air Filter

1шт.

17

BN63864

TACHOMETER

(0 - 4000 RPM)

1шт.

18

BN16018

ALARM

Low Hopper

1шт.

19

BN57230

GAUGE

Voltmeter

1шт.

20

BN57212

GAUGE

Fuel

1шт.

21

BN57208

GAUGE

Temperature-Engine

1шт.

21

BN57209

TEMPERATURE SENDER

1шт.

Associated Part Of Gauge - Temperature-Engine, P/N BN57208

1шт.

22

BN57210

GAUGE

Oil-Engine

1шт.

22

BN57211

SENSOR

Oil Pressure

1шт.

Associated Part Of Gauge - Oil-Engine, P/N BN57210

1шт.

23

BN98247

KNOB

Assembly - Throttle

1шт.

24

BN25971

CONTROL

Shift & Throttle (Complete)

1шт.

24

BN98248

SWITCH

Backup

1шт.

Service Parts For Ref. 24

1шт.

24

BN98249

NEUTRAL START SWITCH

1шт.

Service Parts For Ref. 24

1шт.

25

282775A1

IGNITION SWITCH

With Padded Keys

1шт.

25

BN98413

IGNITION KEY

(2 Keys)

1шт.

Associated Part Of Ignition w/Keys, P/N BN29278

1шт.

25

BN39175

Key - Team Tyler

1шт.

Associated Part Of Ignition w/Keys, P/N BN29278

1шт.

26

342465A1

SWITCH

range select

1шт.

27

BN29440

KNOB

for Contact Block BN29439

1шт.

Speed Range

1шт.

28

BN29446

SWITCH

Toggle, On-Off

1шт.

29

BN24129

SWITCH

On-None-On Dpdt

1шт.

30

BN24129

SWITCH

On-None-On Dpdt

1шт.

31

BN24129

SWITCH

On-None-On Dpdt

1шт.

32

BN29445

SWITCH

On-Off-On

1шт.

33

BN29445

SWITCH

On-Off-On

1шт.

34

BN29445

SWITCH

On-Off-On

1шт.

35

BN29445

SWITCH

On-Off-On

1шт.

37

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

38

BN29445

SWITCH

On-Off-On

1шт.

39

BN29446

SWITCH

Toggle, On-Off

1шт.

40

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

41

BN29266

SWITCH

Windshield Wiper

1шт.

42

BN29273

SWITCH

Headlight/Taillight

1шт.

43

BN29446

SWITCH

Toggle, On-Off

1шт.

44

BN16163

SWITCH

Lighted On - Off

1шт.

45

BN25191A

GRIP

w/Switches (Complete)(DICKEY-john

1шт.

45

BN29994

SWITCH

Push Button

5шт.

Parts Of Handle w/Switches (Complete) (DICKEY-john, P/N BN25191A)

1шт.

45

BN29993

CAP

(For Push Button Switch 29994)

5шт.

Parts Of Handle w/Switches (Complete) (DICKEY-john, P/N BN25191A)

1шт.

45

BN29986

INSERT

Grip, 1" Dia x 1.6" Nylon

1шт.

Parts Of Handle w/Switches (Complete) (DICKEY-john, P/N BN25191A)

1шт.

45

BN24172

SWITCH

On-Off Toggle

1шт.

Parts Of Handle w/Switches (Complete) (DICKEY-john, P/N BN25191A)

1шт.

45

BN24173

BOOT

Miniature

1шт.

Parts Of Handle w/Switches (Complete) (DICKEY-john, P/N BN25191A)

1шт.

46

BN29318

FLOOR MAT

1шт.

Not Shown

1шт.

47

BN29597

MOUNTING PLATE

DICKEY-John® Mount

1шт.

48

BN25318

CONTROL UNIT

Foam (Incr./Decr. Foam) - RH

1шт.

48

BN27460

Switch - Foam Control (Incr./Decr. Foam) w/Circuit Board - High Volume Pkg.

1шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

49

BN73516

PLUG

3шт.

50

BN67036

Control Box

1шт.

50

BN27379

SHIELD

(Control Box)

1шт.

Associated Part Of Control Box, P/N BN67036

1шт.

51

BN24355

INDICATOR LIGHT

3шт.

52

BN27461

GAUGE

Pressure 0-60 psi

1шт.

53

BN63712

FLASHER SWITCH

Signal Light

1шт.

54

BN63836

Indicator Light

2шт.

55

BN63865

HOURMETER

1шт.
