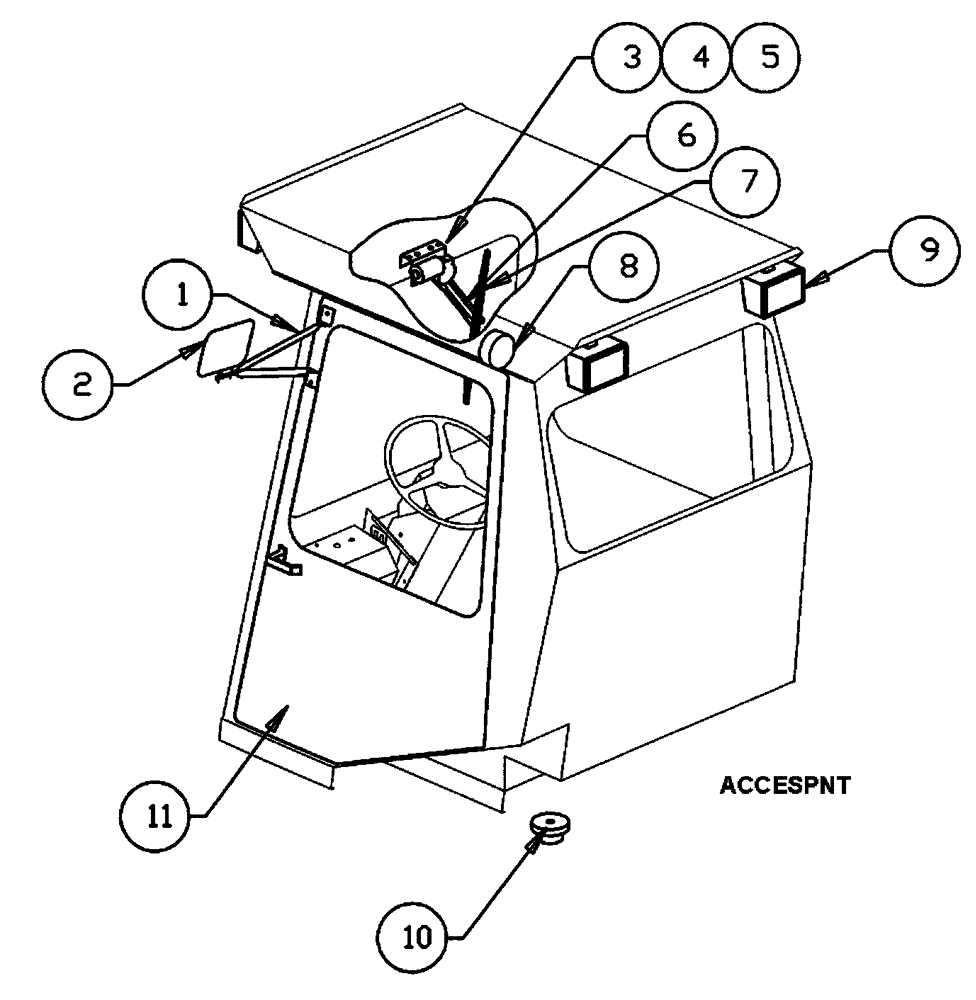

Запчасти Case IH PATRIOT NT (01-001) - ACCESSORIES Cab Interior

1

BN63859

HYD TUBE

Mirror

4шт.

2

BN29251

REPLACEMENT MIRROR

Head, Black

2шт.

3

BN29881

BRACKET

Mount - Wiper Motor

1шт.

See Fig. 02-004

1шт.

4

NSS

NOT SOLD SEPARAT

Adapter - Mount (Outside Windshield)

1шт.

See Fig. 02-004

1шт.

5

NSS

NOT SOLD SEPARAT

Wiper Motor Assembly

1шт.

See Fig. 02-004

1шт.

6

NSS

NOT SOLD SEPARAT

Wiper Arm See Fig 02-005

1шт.

See Fig. 02-005

1шт.

7

NSS

NOT SOLD SEPARAT

Wiper Blade

1шт.

8

BN324281

LIGHT

Amber Flashing

2шт.

8a

BN29973

LENS

Amber

4шт.

Service Parts For Ref. 9

1шт.

9

BN29252

LIGHT

Flood 900/H9406 12V

4шт.

9a

BN98185

LENS

Sealed Beam - Flood

4шт.

Service Parts For Ref. 9

1шт.

10

BN29243

ISOLATOR

Rubber 1/2" Bore

4шт.

10a

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

4шт.

Associated Part Of Isolator, P/N BN29243

1шт.

11

BN25951

DOOR

Assembly, Cab

1шт.

11

BN25665

DOOR

1шт.

Parts Of Door - Complete, P/N BN25951

1шт.

11

BN29420

SEAL

Clip-On, 194"

1шт.

Parts Of Door - Complete, P/N BN25951

1шт.

11

BN29287

LATCH

Door, Inside, RH

1шт.

Parts Of Door - Complete, P/N BN25951

1шт.

11

BN29288

HANDLE

Locking, Outside, With Keys

1шт.

Parts Of Door - Complete, P/N BN25951

1шт.

11

BN98412

WRENCH

KEY, LOCK Door Handle

1шт.

Parts Of Door - Complete, P/N BN25951

1шт.

11

BN29290

STRIKER PLATE

Door

1шт.

Parts Of Door - Complete, P/N BN25951

1шт.

11

BN29823

SHIM

14 ga 304 1" x 3"

3шт.

Service Parts For Ref. 9

1шт.

11

BN29421

SEAL, GLASS

Rubber, Window, Inline, 124"

1шт.

Parts Of Door - Complete, P/N BN25951

1шт.

11

BN29425

GLASS

Tint 30" x 32" x .218

1шт.

Parts Of Door - Complete, P/N BN25951

1шт.

11

BN25702

Door - Bottom, Serial Range: (Bolt-Floor)

1шт.

Associated Part Of Door - Complete, P/N BN25951

1шт.

11

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

Associated Part Of Door - Complete, P/N BN25951

1шт.

11

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Service Parts For P/N BN29434

1шт.

11

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Service Parts For P/N BN29434

1шт.

12

BN29906

Lifting

2шт.

Not Shown

1шт.

13

BN25259

MOUNTING PLATE

Ash Tray

1шт.

Not Shown

1шт.

14

BN25260

HOLDER

Pop Can

1шт.

Not Shown

1шт.

15

BN25261

ASH TRAY

Self Leveler

1шт.

Not Shown

1шт.

16

BN25313

MOUNTING PLATE

Pop Holder

1шт.
