Запчасти Case IH PATRIOT II (08-001) - BOOM ASSEMBLY (60) (09) - BOOMS

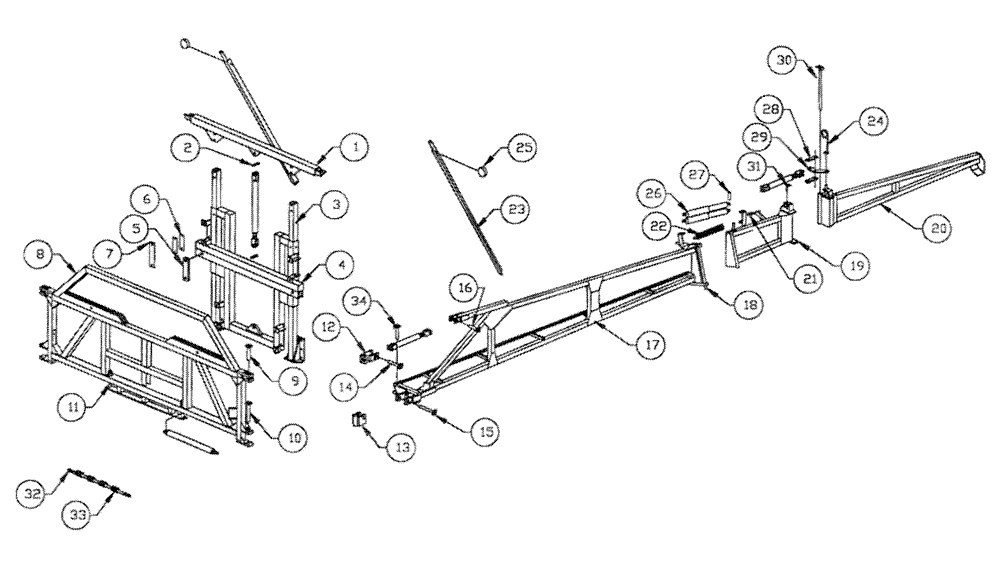

Схема запчастей Case IH PATRIOT II - (08-001) - BOOM ASSEMBLY (60) (09) - BOOMS
9
20
26
17
1
13
14
32
6
22
15
4
5
3
28
16
25
10
24
19
12
29
8
27
21
30
23
7
2
18
34
11
33
31

Артикул

Название

Примечание

Количество

1

BN63501

HANGER

1шт.

2

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

3

BN9273

Slide - LH

1шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

3

BN6274

Slide - RH

1шт.

Shown

1шт.

4

BN63496

RACK

Boom

1шт.

Tie Rod End Clamps Must Be Installed As Shown With Bolts To Bottom And Nuts To Rear Of Patriot. After Adjusting Toe In, Both Tie Rod Ends On Each Cylinder Must Be In Alignment To Avoid Binding

1шт.

3

BN67206

SLIDE

Rail LH

1шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

3

BN67207

SLIDE

Rail RH

1шт.

Shown

1шт.

4

BN67216

RACK

Center Boom

1шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

5

BN67214

HANGER

4шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

5

BN29505

HANGER

3/4 x 3 HRFB x 10.50

4шт.

Serial Number Sensitive. Need To Know Serial Number To Order Parts

1шт.

6

BN23267

Spacer

8шт.

7

87506475

UNION

valve cap 1" arag

4шт.

8

BN09256

BOOM

center section

1шт.

9

BN65219

2шт.

10

BN65220

PIN

1.25" x 6.875

2шт.

11

BN52020

BOLT

Hex, 1"-8 x 7 1/2", G5

2шт.

BN50092

NUT

1"-8 Std

2шт.

Not Shown

1шт.

87553819

JAM NUT

1"-8 Hex, Jam

2шт.

Not Shown

1шт.

12

BN9073

Swivel Assembly

2шт.

13

BN9072

Pivot Assembly

2шт.

14

BN65152

PIN

1.00 x 4.75

2шт.

15

BN65153

PIN

1.00 x 6.25

2шт.

16

BN65154

PIN

1. 00 x 3.75

2шт.

17

BN9275

LH Boom Inner

1шт.

BN9276

RH Boom Inner

1шт.

Not Shown

1шт.

18

BN89827

PIN

2шт.

19

BN9277

LH Boom Outer

1шт.

BN9278

RH Boom Outer

1шт.

20

BN9262

LH Boom Breakaway

1шт.

BN9263

RH Boom Breakaway

1шт.

Not Shown

1шт.

21

BN6638

Take Up

2шт.

22

BN50542

SPRING

1шт.

23

BN63832

Brace - RH

1шт.

BN63833

SUPPORT

Brace - LH

1шт.

Not Shown

1шт.

24

BN24490

BRACKET

hose guide

2шт.

25

BN324281

LIGHT

Amber Flashing

2шт.

BN29973

LENS

Amber

4шт.

26

BN21565

SHOCK ABSORBER

2шт.

27

BN89161

BUSHING

11/16" od x 14 GA x 3 7/16" long

4шт.

28

BN21410A

BAR

1/2" x 1 1/2" x 5 3/4"

2шт.

29

BN21414

Bar

2шт.

30

BN9094

2шт.

31

BN22456

PIN,19.05mm OD x 81.28mm L

boom pivot

2шт.

32

BN21197

SHAFT

1" x 36"

1шт.

33

BN20160

SPRING

Compression, 1 3/4" od x 5 1/2"

4шт.

34

BN65210

PIN

2шт.

BN24328

BUMPER

Split Hose x 6"

2шт.

Not Shown

1шт.

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

Not Shown

1шт.

BN303882

SUPPORT

Brace - Angle, Boom Mast

1шт.

Not Shown

1шт.

BN24791

BRACKET

Cross Brace

1шт.

Not Shown

1шт.

Выбрано товаров: 67
