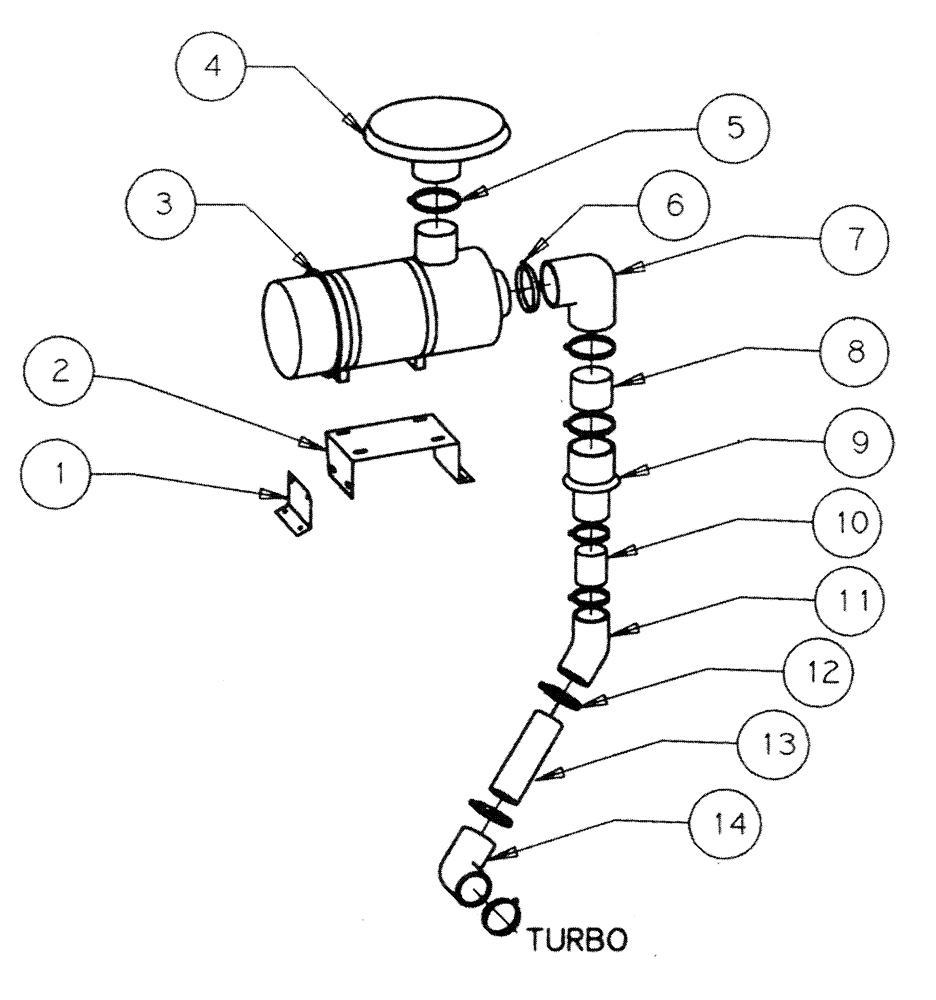

Запчасти Case IH PATRIOT II (03-005) - AIR CLEANER ASSEMBLY (01) - ENGINE

1

BN24255

MOUNTING PLATE

12GA HRS 5 x 5.75

1шт.

2

BN24256

MOUNTING PLATE

12 GA HRS 7 x 20.75

1шт.

3

BN25285

AIR CLEANER

(Complete)

1шт.

BN25286

AIR FILTER

Primary (Large)

1шт.

Not Shown

1шт.

BN25287

AIR FILTER

Safety (Small)

1шт.

Not Shown

1шт.

BN25291

Mounting

2шт.

Not Shown

1шт.

4

BN25290

VENT

Rain Cap, Air Inlet 4.5"

1шт.

5

BN51781

HOSE CLAMP

#72

1шт.

6

BN53823

SPECIAL CLAMP

"T" Bolt Clamp-4 1/2"

3шт.

7

D50920

ELBOW

4" x 90°

1шт.

8

BN25293

TUBE

4" od x 3" Long x 16 ga SS

1шт.

9

BN25248

HOSE

Hump 3" x 4"

1шт.

10

BN25294

Tube - 3" Diameter x 3"

1шт.

11

BN25289

ELBOW

3" x 45°

1шт.

12

BN53822

T Bolt Clamp - 3 1/2"

5шт.

13

BN25295

3" Diameter x 9"

1шт.

14

BN25247

ELBOW

3" x 90°

1шт.
