Запчасти Case IH PATRIOT II (09-005) - LIQUID PLUMBING - (90) BOOM Liquid Plumbing

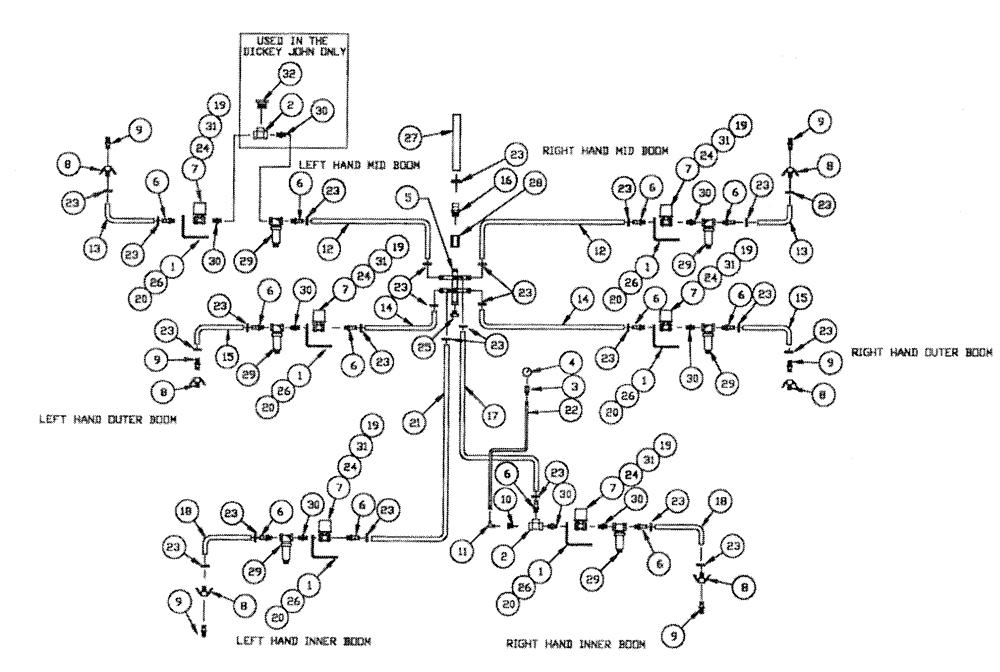

Схема запчастей Case IH PATRIOT II - (09-005) - LIQUID PLUMBING - (90) BOOM Liquid Plumbing
1
29
30
14
6
6
29
2
9
15
2
24
23
24
26
32
3
19
26
1
7
9
23
6
6
9
6
8
7
31
8
6
31
30
23
28
1
9
26
24
23
1
30
23
12
23
19
23
29
10
23
1
31
23
23
19
7
13
19
26
4
23
23
31
8
23
29
20
7
11
19
17
23
30
16
13
25
20
8
20
23
20
23
12
24
21
31
1
18
23
8
23
30
7
5
29
31
26
24
27
6
30
6
29
6
30
18
20
24
6
15
6
23
20
8
9
14
30
9
6
22
23
23
19
23
7
26

Артикул

Название

Примечание

Количество

1

BN50051

NUT,1/4"-20, USR

12шт.

2

BN73629

TEE

1" Poly Pipe

2шт.

3

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

1шт.

4

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

5

BN66643

MANIFOLD

Outlet - 6 Port

1шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

12шт.

7

BN16055

CONNECTOR, ELEC

CONNECTOR 3 Way Shroud Packard

6шт.

8

BN53668

COUPLING

1" Female, HS SHK

6шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

6шт.

10

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

11

BN53734

ELBOW

FTP 90° 1/4" NPT x 9/16" JIC

1шт.

12

BN53746

HOSE,1.00" ID x 250.00"

EPDM

2шт.

13

BN66853

1" EPDM X 333.00"

2шт.

14

BN66854

HOSE

1" EPDM x 135.00"

2шт.

15

BN66855

HOSE

1" EPDM x 26.00"

2шт.

16

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

Barb, 1-1/2 NPT X 1-1/4 HB

1шт.

17

BN66857

HOSE

1" EPDM x 15.00"

1шт.

18

BN66858

HOSE

1" EPDM x 31.00"

2шт.

19

BN16057

ELEC. TERMINAL PIN,8 mm

Male Packard

18шт.

20

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

6шт.

21

BN66859

HOSE

1" EPDM X 23.00"

1шт.

22

BN29999

HOSE

3/8" id EPDM x 260"

1шт.

23

BN75990

HOSE CLAMP

#16, Stainless Steel

25шт.

24

BN16056

SEAL

Packard Plug

18шт.

25

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

26

BN50211

BOLT

1/4"-20 x .75, HH, G5, PI

12шт.

27

BN67135

HOSE

1.25 EPDM x 90.00"

1шт.

28

BN73738

COUPLING

1-1/2" Poly Pipe

1шт.

29

BN73681

FILTER STRAINER

Assembly 1" - 50 Mesh

6шт.

30

BN73648

NIPPLE

1" Short Poly Pipe

8шт.

29a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

31

BN53495

VALVE

PP Ball (2-Way) ELE

6шт.

29b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

32

BN53665

BUSHING

1" x .75 Poly

1шт.

BN24224

HARNESS

Center Boom

1шт.

Not Shown

1шт.

BN53872

SEALING STRIP

Tape #48 - THD SEAL 5 X 520"

1шт.

Not Shown

1шт.

BN67136

WIRE HARNESS

Booms 420"

2шт.

Not Shown

1шт.

BN67243

DECAL

Strainer Pressure

1шт.

Not Shown

1шт.

Выбрано товаров: 42
