Запчасти Case IH PATRIOT II (09-003) - LIQUID PLUMBING - (60) BOOM Liquid Plumbing

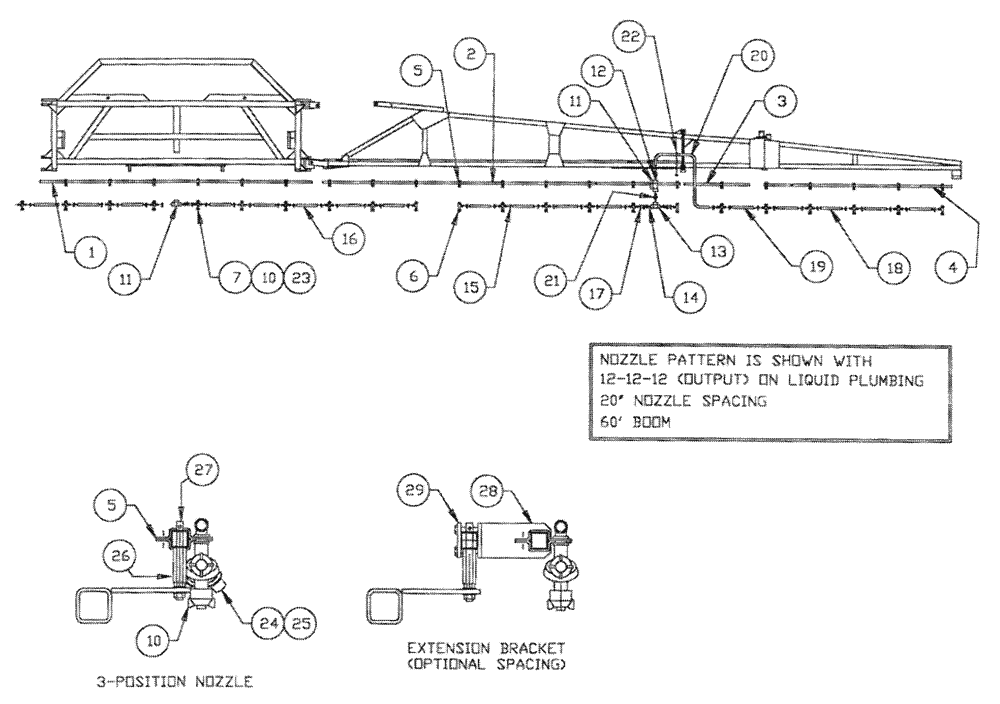

Схема запчастей Case IH PATRIOT II - (09-003) - LIQUID PLUMBING - (60) BOOM Liquid Plumbing
28
6
25
24
27
15
3
12
26
23
4
21
18
16
11
5
10
13
5
19
14
10
11
29
7
20
22
2
17
1

Артикул

Название

Примечание

Количество

1

BN24486

TUBE

1" Sq x 124"

1шт.

2

BN89813

TUBE

164.5"

2шт.

3

BN89810

TUBE

29.5"

2шт.

4

BN89810

TUBE

85.25"

2шт.

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

16шт.

Not Shown

1шт.

BN71006

COTTER PIN

1/8", #11

16шт.

Not Shown

1шт.

5

BN74448

CLAMP

1" square tubing

36шт.

6

BN74618

Hose Shank - Single 3/4"

8шт.

7

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

28шт.

10

BN74619

CAP

with gasket tee jet black

36шт.

11

BN73629

TEE

1" Poly Pipe

3шт.

12

BN53666

FITTING

Barb - 1" x 3/4"

4шт.

13

BN73560

TEE

3/4"

2шт.

14

BN73561

FITTING

Hose Barb - 3/4"

4шт.

15

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

72шт.

16

BN53748

HOSE,0.75" ID x 30.00"

2шт.

17

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

6шт.

18

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

24шт.

19

BN53739

Hose - 3/4" x 42.0"

2шт.

20

BN53749

HOSE,0.75" ID x 36.00"

2шт.

21

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

2шт.

22

BN24059

Hose Bracket

2шт.

23

BN74472

GASKET

Seat - Nozzle

36шт.

28

BN25929

MOUNTING PLATE

Extension (Optional Spacing)

2шт.

29

BN25931

MOUNTING PLATE

(Optional Spacing)

2шт.

24

BN74621

NOZZLE

3-Way Double 3/4" SHA

28шт.

25

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

8шт.

26

BN25939

SPACER

2" (3-Position Nozzles)

16шт.

27

BN25938

PIN

3/8" x 4.5", 3-Position Nozzle

16шт.

Выбрано товаров: 31
