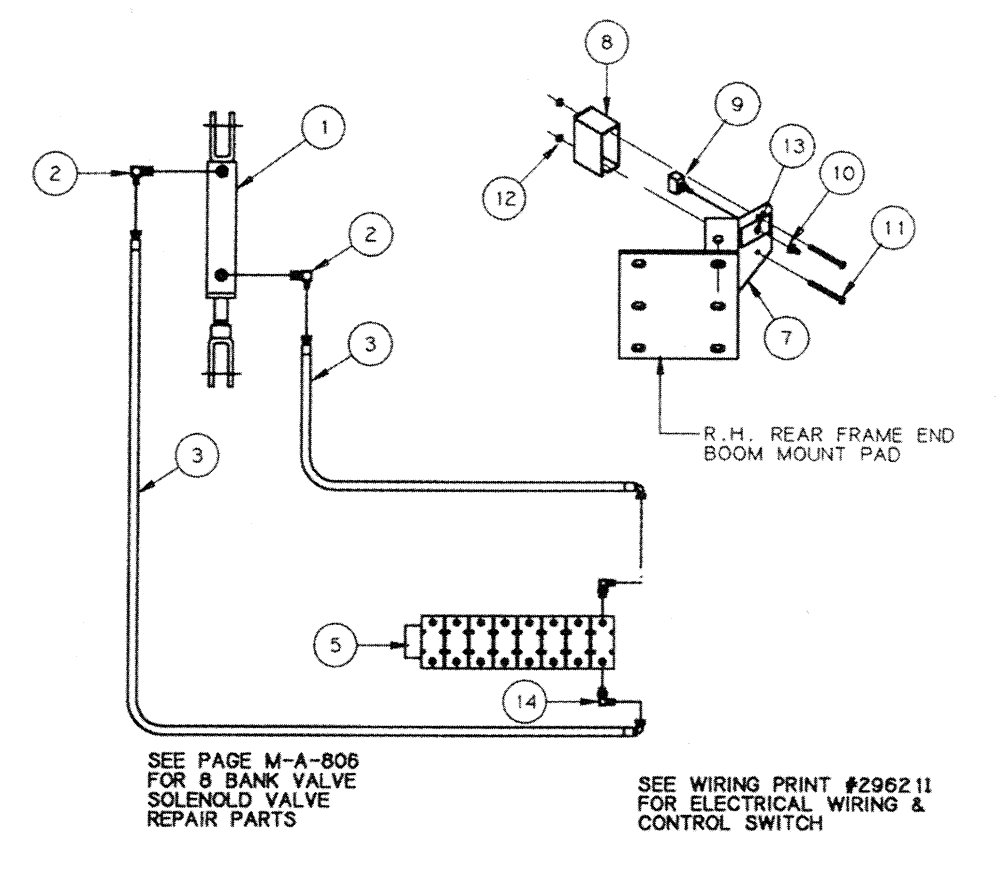

Запчасти Case IH PATRIOT II (06-007) - HYDRAULIC PLUMBING - TOW HITCH Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Hydraulic, Cylinder - Hitch

1шт.

See Fig. 07-008

1шт.

2

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

2шт.

3

BN54169

HOSE

Hose Assembly, 1/4" x 44"

2шт.

5

BN25223

8 Bank

1шт.

See Fig. 06-011

1шт.

BN25229

SHIELD

7 & 8 Bank Valve - Cover

1шт.

Not Shown

1шт.

BN25230

MOUNTING PLATE

7 & 8 Bank Valve Cover

1шт.

Not Shown

1шт.

7

BN24103

MOUNTING PLATE

1шт.

8

BN24106

COVER

1шт.

9

BN29445

SWITCH

On-Off-On

1шт.

10

BN24100

Switch

1шт.

11

BN50790

BOLT

1/4" x 3 1/2"

2шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN24101

DECAL

Raise, Lower Hitch

1шт.

14

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

2шт.

BN98019

O-RING

#6

2шт.
