Запчасти Case IH PATRIOT II (06-006) - HYDRAULIC PLUMBING - STEERING Hydraulic Plumbing

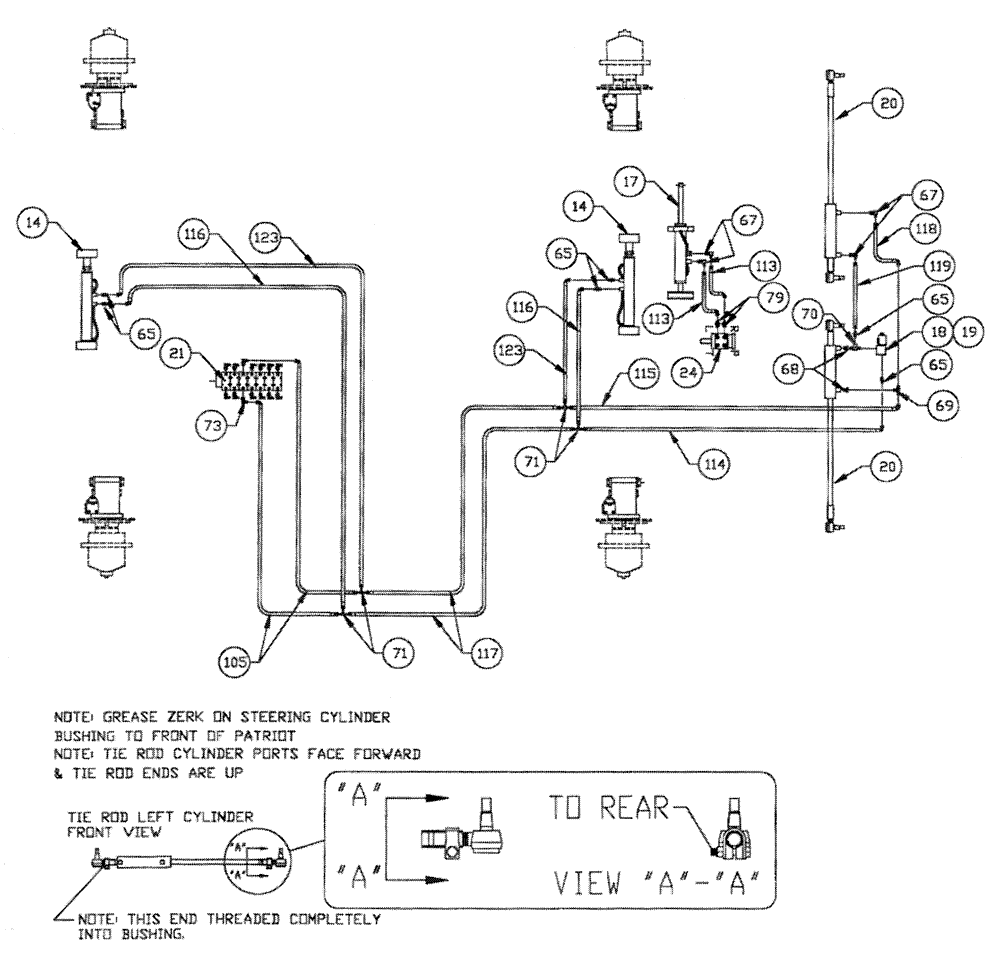

Схема запчастей Case IH PATRIOT II - (06-006) - HYDRAULIC PLUMBING - STEERING Hydraulic Plumbing
18
79
71
65
17
116
21
70
65
113
24
14
113
71
19
123
67
65
123
117
119
68
65
20
105
67
116
118
14
69
20
73
115

Артикул

Название

Примечание

Количество

14

BN53875

CYLINDER

with clevis (complete)

2шт.

Hydraulic Cylinder Dimension Settings Center Of Pin Hole To Center Of Pin Hole - Ref 14. Axle Adjust Cylinder - 67-7/16" (Cylinder Retracted)

1шт.

Rod End Of Cylinder Must Be To Left Side Of Unit. Ref 20 - Tie Rod Cylinder - Adjust For 1/4" - 1/2" Toe In (Front Of Tires 1/4" - 1/2" Less Than Rear Of Tires At Hub Center Line-With Tire Facing Ahead) Adjust Toe In From Rod (Outer) End Of Cylinder

1шт.

Tie Rod End Clamps Must Be Installed As Shown With Bolts To Bottom And Nuts To Rear Of Patriot. After Adjusting Toe In, Both Tie Rod Ends On Each Cylinder Must Be In Alignment To Avoid Binding

1шт.

See Fig. 06-001

1шт.

17

BN63710

CYLINDER

Hydraulic Steering

1шт.

See Fig. 06-009

1шт.

18

BN29788

CARTRIDGE

Solenoid Valve w/Coil

1шт.

Not Shown

1шт.

BN98231

COIL

1шт.

Not Shown

1шт.

For BN29788

1шт.

BN98204

O-RING

BUNA-N, for BN29788

1шт.

Not Shown

1шт.

For BN29788

1шт.

BN98205

O-RING

Top - Large

1шт.

Not Shown

1шт.

For BN29788

1шт.

19

BN29789

BODY

Valve

1шт.

For Ref. 18

1шт.

20

BN53928

CYLINDER

Hydraulic Cylinder - Tie Rod

2шт.

Hydraulic Cylinder Dimension Settings Center Of Pin Hole To Center Of Pin Hole - Ref 14. Axle Adjust Cylinder - 67-7/16" (Cylinder Retracted)

1шт.

Rod End Of Cylinder Must Be To Left Side Of Unit. Ref 20 - Tie Rod Cylinder - Adjust For 1/4" - 1/2" Toe In (Front Of Tires 1/4" - 1/2" Less Than Rear Of Tires At Hub Center Line-With Tire Facing Ahead) Adjust Toe In From Rod (Outer) End Of Cylinder

1шт.

Tie Rod End Clamps Must Be Installed As Shown With Bolts To Bottom And Nuts To Rear Of Patriot. After Adjusting Toe In, Both Tie Rod Ends On Each Cylinder Must Be In Alignment To Avoid Binding

1шт.

See Fig. 06-010

1шт.

359775A1

END ASSY.

Tie Rod, RH 1"-16 Thread

4шт.

Not Shown

1шт.

BN98805

COVER

Dust, Rubber

4шт.

Not Shown

1шт.

Tie Rod End

1шт.

BN98806

JAM NUT

4шт.

Not Shown

1шт.

Tie Rod End

1шт.

BN04851

CLAMP

Tie Rod End, With Bolt

4шт.

Not Shown

1шт.

Tie Rod End

1шт.

21

BN29345

7 Bank

1шт.

See Fig. 05-011 For Seals & Repair Parts

1шт.

BN25229

SHIELD

7 & 8 Bank Valve - Cover

1шт.

Not Shown

1шт.

BN25230

MOUNTING PLATE

7 & 8 Bank Valve Cover

1шт.

Not Shown

1шт.

24

BN29233

HYDRAULIC STEERING

Control, Orbitrol

1шт.

BN98233

SEAL KIT

For BN29233

1шт.

Not Shown

1шт.

65

BN21355

ADAPTER,1/4"-18 NPT x 7/16-20 JIC

6шт.

67

BN21401

ELBOW,90 Degree 3/8" NPT x 7/16"-20 JIC

4шт.

68

BN51352

BUSHING

1/4-18 x 3/8-18 NPT

2шт.

69

BN53711

TEE

1/4 NPT x 7/16-20 JIC

1шт.

70

BN53712

TEE

1/4" NPT

1шт.

71

BN21422

TEE

7/16-20 JIC

4шт.

73

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

14шт.

BN98019

O-RING

#6

14шт.

Not Shown

1шт.

79

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

2шт.

BN98018

O-RING

#8

2шт.

Not Shown

1шт.

105

BN54161

HOSE,0.25" ID x 52.00", SAE 100R1

2шт.

113

BN53814

HOSE

1/4" x 62"

2шт.

114

BN54155

HOSE,0.25" ID x 33.00", SAE 100R1

Assembly

1шт.

115

BN54156

HOSE,0.25" ID x 30.00", SAE 100R1

Assembly

1шт.

116

BN54157

Hose Assembly, 1/4" x 15"

2шт.

117

BN54158

HOSE,0.25" ID x 114.00", SAE 100R1

2шт.

118

BN54169

HOSE

Hose Assembly, 1/4" x 44"

1шт.

119

BN53964

HOSE

1/4" ID x 15" 100R1

1шт.

123

BN54196

HOSE

Assembly, 1/4" x 18"

2шт.

Выбрано товаров: 66
