Запчасти Case IH PATRIOT II (06-004) - HYDRAULIC PLUMBING - HYDROSTATIC PUMP Hydraulic Plumbing

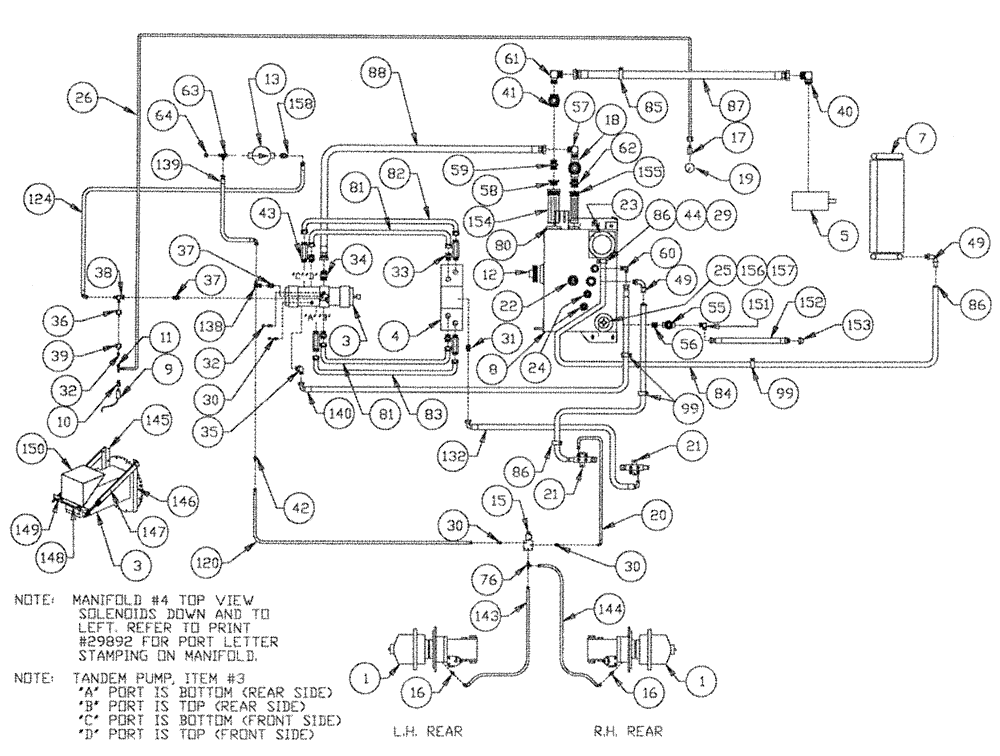

Схема запчастей Case IH PATRIOT II - (06-004) - HYDRAULIC PLUMBING - HYDROSTATIC PUMP Hydraulic Plumbing
86
140
16
16
20
39
42
43
99
21
7
24
63
9
138
32
64
18
3
15
81
82
35
44
31
76
154
60
83
58
120
85
139
81
37
132
62
99
41
17
19
49
156
30
32
38
33
61
10
29
147
22
1
86
86
145
25
87
88
26
30
148
21
152
124
37
55
49
12
158
8
153
80
157
23
40
3
143
151
84
56
146
13
34
59
150
30
57
5
144
149
4
11
155
36
1

Артикул

Название

Примечание

Количество

1

BN66384

w/Integral Brake Model #7

2шт.

BN27372

CAP

hub cover

2шт.

Not Shown

1шт.

3

BN29007A

PUMP

Pump, Tandem Hydrostatic

1шт.

BN29007AR

REMAN-HYDROSTAT PUMP

PATRIOT II (5/92-5/96), PATRIOT XL (5/93-5/98)

1шт.

BN29007AC

CORE-HYDRAULIC PUMP

Return number

1шт.

BN98230

SEAL KIT

1шт.

Not Shown

1шт.

BN98358

O-RING

Auxiliary Pump Pad

1шт.

Not Shown

1шт.

BN98605

COVER

Servo (Front)

2шт.

Not Shown

1шт.

BN98606

COVER

Servo w/Port (Rear)

2шт.

Not Shown

1шт.

BN52039

Servo Cover

20шт.

Not Shown

1шт.

BN98514

GASKET

Servo Cover

4шт.

Not Shown

1шт.

BN98596

O-RING KIT

Kit - (Shifter Control & Spool Assembly)

1шт.

Not Shown

1шт.

BN65528

REPAIR KIT

Main Relief

4шт.

Not Shown

1шт.

BN65530

O-RING

Main Relief

4шт.

Not Shown

1шт.

BN65532

REPAIR KIT

Charge Relief

1шт.

Not Shown

1шт.

BN65534

O-RING

Charge Relief

1шт.

Not Shown

1шт.

BN65537

REPAIR KIT

Shim - Charge Relief

1шт.

Not Shown

1шт.

4

BN54214

Valve - Manifold

1шт.

5

BN67039

PUMP

Hydraulic Tandem CW Rotation

1шт.

BN98608

SEAL

shaft, for BN27195

1шт.

BN98609

REPAIR KIT

w/Wear Plates and Seals

1шт.

Not Shown

1шт.

7

BN29339

OIL COOLER

Hyd.

1шт.

8

BN63771

TANK

Hydraulic Oil

1шт.

BN52319

PLUG

Magnetic 1/2" NPT

1шт.

Not Shown

1шт.

9

BN53950

SENSOR

Pressure, N.O.200 PSI

1шт.

10

BN53961

ADAPTER

Int. Pipe-37 Flare

1шт.

11

BN53960

TEE

JIC 1/4"-20 Male - Female

1шт.

12

BN72541

Plug - 4" Steel

1шт.

13

BN309664

FILTER

Hydraulic, Oil, Medium Pressure

1шт.

N14232

FILTER

Element, Spin On

1шт.

Not Shown

1шт.

BN98626

INDICATOR

Gauge, w/Hardware

1шт.

Not Shown

1шт.

BN54258

SENDER UNIT

1шт.

Not Shown

1шт.

15

BN29955

SOLENOID

Valve, Brake Actuator

1шт.

BN98420

SEAL KIT

For BN29955

1шт.

Not Shown

1шт.

BN98421

CARTRIDGE

for BN29955

1шт.

Not Shown

1шт.

BN98422

COIL

solenoid valve

1шт.

Not Shown

1шт.

BN98423

VALVE BODY

For BN29955

1шт.

16

BN444005

FITTING

STR - 7/16-20 O-Ring x 7/16-20 JIC

2шт.

BN98094

O-RING

#4

2шт.

Not Shown

1шт.

17

BN53962

FITTING

Bulkhead, 1/4" NPT x 3/8"

1шт.

18

BN2006

Gate Valve - 1-1/4 NPT

1шт.

19

BN13821

GAUGE

Pressure 0 - 600 PSI

1шт.

20

BN54236

HOSE,0.25" ID x 91.00", SAE 100R1

1шт.

21

BN63937

MANIFOLD

2шт.

22

BN65198

SWITCH

Level Assembly

1шт.

23

BN53952

FILTER

In Tank (Complete)

1шт.

BN53953

FILTER

1шт.

BN54267

O-RING

Element

1шт.

BN53955

PRESSURE SWITCH

1шт.

BN53954

GAUGE

Pressure

1шт.

Not Shown

1шт.

BN54269

SEAL KIT

1шт.

Not Shown

1шт.

24

BN72220

PLUG

3/4" NPT MI

2шт.

25

BN53958

BREATHER

Spin On, Breather

1шт.

26

BN53969

HOSE

Hydraulic - 1/4" 100R1

1шт.

27

BN53951

THERMOSTATIC SWITCH

NC 180°

1шт.

Not Shown

1шт.

28

BN21508

Suction 1" x 96"

1шт.

29

BN51970

ADAPTER

1шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

4шт.

BN98019

O-RING

#6

4шт.

31

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

32

BN21531

NUT,7/16"-20, 37 Degree

2шт.

33

BN57223

FITTING

STR 1-5/16 12 O-Ring x 1-7/16 12 Male Flat Face

4шт.

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Flat face

4шт.

Not Shown

1шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

Not Shown

1шт.

34

BN52040

ADAPTER

1-5/8-12 O-Ring x 1-5/8-12 JIC

1шт.

BN98063

O-RING

#20

1шт.

Not Shown

1шт.

35

BN445001

FITTING

Adapter, 90°1 1/16-12 O Ring x 1 1/16-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

36

BN53715

REDUCER

1-1/16"-12 JIC F, x 3/4-16 JIC M

1шт.

37

BN444007

O-RING

37 Flare 12-10

2шт.

BN98062

O-RING

#10

2шт.

Not Shown

1шт.

38

BN53573

TEE

1-1/16"-12 JIC

1шт.

39

BN53714

FITTING

Reducer - 3/4-16 JIC F x 7/16-20 JIC M

2шт.

40

BN52037

ADAPTER

90º OR 37 FL20-24

1шт.

BN98016

O-RING

SAE-16 Buna N

1шт.

41

BN51497

HYDRAULIC VALVE

Gate - 1-1/2 NPT

1шт.

42

BN21355

ADAPTER,1/4"-18 NPT x 7/16-20 JIC

1шт.

43

BN53918

ADAPTER

flat face x Or x 4.1

4шт.

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

Flat face

4шт.

Not Shown

1шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

Not Shown

1шт.

44

BN22432

FITTING

Barb Str 1" NPT x 1" Hose

1шт.

49

BN21386

FITTING

Barb - 90° 1" NPT x 1" Hose

2шт.

55

BN21372

VALVE

Gate, 1" NPT

1шт.

56

BN51656

ADAPTER

Nipple, 1" NPT (Close)

1шт.

57

BN52318

ADAPTER

90° 1-1/4" NPT x 1-5/8"-12 JIC

1шт.

58

BN72471

BUSHING

Reducer - 2" x 1-1/2 NPT

1шт.

59

BN52034

1-1/2" NPT

1шт.

60

BN442004

FITTING

90° 3/4" NPT x 3/4-16 JIC

1шт.

61

BN52036

FITTING

Adapter - 1-1/2" NPT x 1-7/8"-12 JIC

1шт.

62

BN51952

COUPLING

male, 1-1/4"

1шт.

63

BN51536

PIPE FITTING

11/16"-12 O-Ring x 1-1/16"-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

64

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

76

BN21866

TEE,9/16"-18 O-Ring x 7/16:-20, 37 Degree

1шт.

BN98019

O-RING

#6

1шт.

80

BN53957

GAUGE

Sight w/Temp

1шт.

81

BN53919

HOSE

1" Hydraulic

2шт.

82

BN53920

HOSE

1" Hydraulic

1шт.

83

BN53921

HOSE

1" Hydraulic

1шт.

84

BN53533

Suction Hose - 1" ID x 80"

1шт.

85

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.

86

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

87

BN52038

HOSE

Suction Assembly - 1-1/2 x 58"

1шт.

88

BN52041

HOSE

1 1/4" X 35"

1шт.

99

BN570018

CLAMP

vinyl coated 1-7/16

3шт.

120

BN54184

HOSE

1/4" x 124"

1шт.

124

BN53579

3/4" x 36"

1шт.

132

BN53967

HOSE ASSY.

1/2" x 60"

1шт.

138

BN63548

ELBOW

Adaptor - 90° 1-1/16-12 JIC

1шт.

139

BN53726

HOSE

3/4" x 26"

1шт.

140

BN53966

HOSE

3/4" x 80"

1шт.

143

BN54151

Hose Assembly, 1/4" x 82"

1шт.

144

BN54176

HOSE

Assembly, 1/4" x 125"

1шт.

145

BN24180

LH

1шт.

146

BN24181

RH

1шт.

147

BN25717

SUPPORT

Brace

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

148

BN25725

ANGLE

3/16 1.5 x 1.5 x 13

1шт.

149

BN53802

WASHER

Beveled, 1/2"

4шт.

BN50072

NUT

Hex, 1/2"-13, G5, Std

2шт.

86992215

LOCK NUT,1/2"-13, GC

2шт.

150

BN24295

SHIELD

1шт.

151

BN53809

ELBOW

90° 1" NPT x 1-1/16-12 JIC

1шт.

152

BN54199

HOSE,0.75" ID x 30.00", SAE 100R1

Assembly

1шт.

153

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

154

BN25877

FILTER STRAINER

In-Line 50 GPM 100 Mesh

1шт.

155

BN24148

FILTER STRAINER

25 gpm, 100 Mesh

1шт.

156

BN54257

Vent (Bottom of Tank) 1" x 30"

1шт.

157

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

158

BN444001

FITTING

Adaptor - 1-1/16-12 x 1-1/16-12 JIC

1шт.

Выбрано товаров: 162
