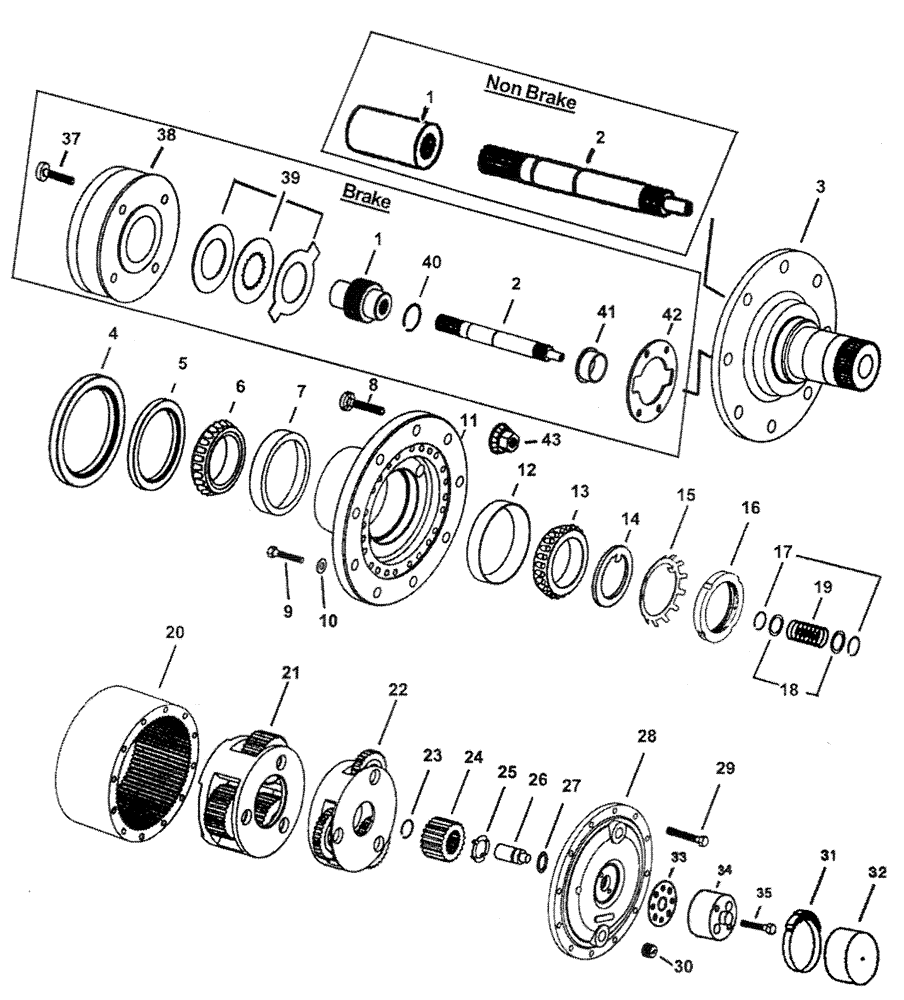

Запчасти Case IH PATRIOT II (05-002) - POWER WHEEL HUB, SEAL & BEARING KIT Hub, Wheel & Tires
№
Артикул
Название
Примечание
Количество
1
BN98370
COUPLING
Non Brake Unit
1шт.
2
BN98793
SHAFT
Input - (15:1, 19:1, 21:1, 24:1)
1шт.
BN98731
SHAFT
Input - (32:1)
1шт.
Not Shown
1шт.
3
BN98732
SPINDLE
1шт.
1
BN98488
COUPLING
Brake Unit
1шт.
2
BN98794
SHAFT
Input - Brake (19:1, 21:1, 24:1)
1шт.
BN98795
SHAFT
Input - Brake (28:1)
1шт.
Not Shown
1шт.
3
BN98798
SPINDLE
Brake Unit
1шт.
37
BN98839
SCREW
Torx Head T-50
4шт.
38
BN66933
BRAKE
Piston Assembly
1шт.
39
BN98424
BRAKE
Disc Pack
1шт.
42
BN98801
GASKET
Brake
1шт.
4
BN98740
SEAL
Trash
1шт.
BN98855
SEAL KIT
Spindle
1шт.
Not Shown
1шт.
Includes BN98809 Seating Compound And Refs. 5, 15, 27
1шт.
BN98802
SEAL KIT
Bearing
1шт.
Not Shown
1шт.
Includes BN98809 Sealing Compound and Refs. 5, 6, 7, 12, 13, 15, 27
1шт.
5
BN98723
SEAL
Oil
1шт.
6
BN98738
ROLLER BEARING,73.03mm ID x 30.16mm W
Inner
1шт.
7
513379
BEARING CUP,117.47mm OD x 23.81mm W
Inner
1шт.
8
BN50791
BOLT
Wheel - 9/16-18 x 2 3/4 Gr. 8
9шт.
9
BN66932
BOLT
Hex Head GR 8
18шт.
10
BN98494
WASHER
flat
18шт.
11
BN98734
HUB
1шт.
12
BN98735
Cup
1шт.
13
BN98736
ROLLER BEARING
Outer
1шт.
14
BN98741
WASHER
Thrust
1шт.
15
BN98742
LOCK WASHER
1шт.
16
BN98743
BEARING LOCK NUT
Bearing
1шт.
17
BN98495
SNAP RING
Retaining
2шт.
18
BN98496
WASHER
2шт.
19
BN98497
SPRING
Disengage
1шт.
20
BN98744
RING GEAR
1шт.
21
BN98796
CARRIER
secondary assembly (15:1 ratio)
1шт.
BN98797
CARRIER
Secondary Assembly (19:1, 21:1, 24:1, 28:1)
1шт.
BN98745
CARRIER
Secondary Assembly (32:1)
1шт.
22
BN66065
CARRIER
Primary Assembly - 32:1 Ratio (3 Gears-30 Teeth Each) Secondary Sun Gear-16 Teeth)
1шт.
Not Shown
1шт.
BN66067
CARRIER
Primary Assembly - 28:1 Ratio (3 Gears-30 Teeth Each) Secondary Sun Gear - 16 Teeth)
1шт.
Not Shown
1шт.
BN66069
CARRIER
Primary Assembly - 24:1 Ratio (3 Gears-28 Teeth Each) Secondary Sun Gear - 19 Teeth)
1шт.
Not Shown
1шт.
BN66071
CARRIER
Primary Assembly - 19:1 Ratio (3 Gears-26 Teeth Each) Secondary Sun Gear - 19 Teeth)
1шт.
Not Shown
1шт.
BN67199
CARRIER
Primary Assembly - 21:1 Ratio (3 Gears-27 Teeth Each) Secondary Sun Gear - 19 Teeth)
1шт.
Not Shown
1шт.
BN67167
CARRIER
Primary Assembly - 15:1 Ratio (3 Gears-24 Teeth Each) Secondary Sun Gear - 22 Teeth)
1шт.
Not Shown
1шт.
23
BN98730
RETAINER
Ring (w/Brake 28:1, 32:1)
1шт.
BN98792
RETAINER
Ring (w/o Brake 15:1, 19:1, 21:1, 24:1) (w/Brake 19:1, 21:1, 24:1)
1шт.
Not Shown
1шт.
24
BN67166
GEAR
Primary Sun 15:1 Ratio (28 Teeth)
1шт.
BN66070
SUN GEAR
Primary 19:1 Ratio (25 Teeth)
1шт.
Not Shown
1шт.
BN67198
SUN GEAR
Primary 21:1 Ratio (22 Teeth)
1шт.
BN86068
Primary Sun Gear 24:1 Ratio (19 Teeth)
1шт.
Not Shown
1шт.
BN66064
SUN GEAR
Primary 28:1 Ratio (16 Teeth)
1шт.
Not Shown
1шт.
BN66064
SUN GEAR
Primary 32:1 Ratio (16 Teeth)
1шт.
Not Shown
1шт.
25
BN98501
THRUST WASHER
1шт.
26
BN98728
PLUNGER
disengage
1шт.
27
BN98729
SEAL
plunger
1шт.
28
BN98733
COVER
1шт.
30
BN98487
PLUG
magnetic
1шт.
31
BN67578
CLAMP
plastic
1шт.
32
BN27372
CAP
hub cover
1шт.
33
BN98506
GASKET
quick release hub
1шт.
34
BN98860
COUPLING
Quick Disconnect
1шт.
35
BN50561
Hex Head
2шт.
36
BN98850
COUPLING
Quick Disconnect Assy, Incl. Ref 33, 34, 35
1шт.
43
BN315227
WHEEL NUT
Flanged Wheel, 9/16"-18
9шт.
BN66382
HUB
Power Complete - No Brake 19:1 Ratio
1шт.
Not Shown
1шт.
BN65588
Power Hub Complete - w/Brake 19:1 Ratio
1шт.
Not Shown
1шт.
BN66385
HUB
Power Complete - No Brake 21:1 Ratio
1шт.
Not Shown
1шт.
BN66384
Power Hub Complete - w/Brake 21:1 Ratio
1шт.
Not Shown
1шт.
BN66380
HUB
Power Complete - No Brake 24:1 Ratio
1шт.
Not Shown
1шт.
BN313879
PACKAGE
Hub, Power Complete - With Brake 24:1 Ratio
1шт.
Not Shown
1шт.
BN66386
HUB
Power Complete - No Brake 15:1 Ratio
1шт.
Not Shown
1шт.
BN66060
HUB
Power Complete - w/Brake 28:1 Ratio
1шт.
Not Shown
1шт.
BN63705
HUB
Power Complete - No Brake 32:1 Ratio
1шт.
Not Shown
1шт.
BN315227
WHEEL NUT
Flanged Wheel, 9/16"-18
36шт.
BN98809
SEAL
Compound
1шт.
Not Shown
1шт.
Выбрано товаров: 99
