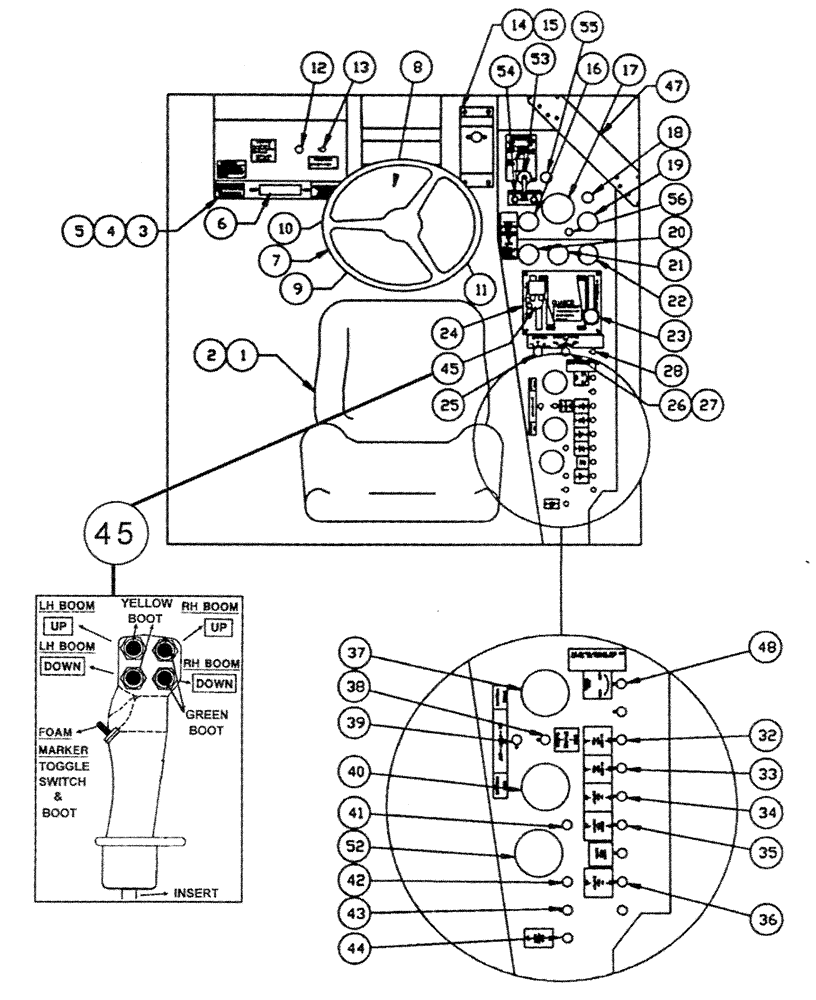

Запчасти Case IH PATRIOT II (01-004) - CONTROLS - CAB INTERIOR Cab Interior

1

BN68852

SEAT

Magnum 200 (Gray)

1шт.

2

BN29361

SAFETY BELT

Retractable BL

1шт.

BN29182

LH Seat Riser

1шт.

Not Shown

1шт.

BN29183

RH Seat Riser

1шт.

Not Shown

1шт.

3

BN29194

Console

1шт.

4

BN29329

COVER

(Access To Radio)

1шт.

5

BN21559

HOLDER

Manuals

1шт.

6

BN57219

RADIO

JVC AM-FM-Cassette

1шт.

BN57220

SPEAKER

JVC (Set of 2)

1шт.

Not Shown

1шт.

BN57222

ANTENNA

Radio

1шт.

Not Shown

1шт.

7

BN27313

STEERING WHEEL

16" Dia.

1шт.

BN27314

CAP

Steering Wheel

1шт.

Not Shown

1шт.

BN29232

JAM NUT

Steering Wheel

1шт.

Not Shown

1шт.

BN29235

STEERING COLUMN

1шт.

Not Shown

1шт.

8

BN29179

MOUNTING PLATE

Steerng Control

1шт.

9

BN29181

Steering Column (Lower)

1шт.

10

BN29274

GRIP

Black-Vinyl, .5 id x 4" Long

1шт.

BN29178

PIN

Tilt Steer

2шт.

Not Shown

1шт.

BN30670

SPRING

Tilt Steer

2шт.

Not Shown

1шт.

11

BN29392

KNOB

3" With 3/8"-16 Female Thread

1шт.

BN50777

BOLT

Carriage

1шт.

Not Shown

1шт.

12

BN29780

INDICATOR LIGHT

Red, 12V

1шт.

13

BN21563

SWITCH

On-Off

1шт.

BN29198

COVER

Parking Brake Switch

1шт.

Not Shown

1шт.

14

BN29618

MOUNTING PLATE

10 ga HRS 3.5 x 10.5

1шт.

15

BN29522

SWITCH

Dimmer Floor Mount

1шт.

16

BN29465

GAUGE

Restriction Indicator-Air Filter

1шт.

17

BN63864

TACHOMETER

(0 - 4000 RPM)

1шт.

18

NSS

NOT SOLD SEPARAT

Plug

1шт.

19

BN57230

GAUGE

Voltmeter

1шт.

20

BN57212

GAUGE

Fuel

1шт.

21

BN57208

GAUGE

Temperature - Engine

1шт.

BN57209

TEMPERATURE SENDER

(Not Shown)

1шт.

Not Shown

1шт.

22

BN57210

GAUGE

Oil - Engine

1шт.

BN57211

SENSOR

Sender - Oil Pressure

1шт.

Not Shown

1шт.

23

BN98247

KNOB

Assembly - Throttle

1шт.

24

BN29255

Control - Shift & Throttle (Complete)

1шт.

BN98248

SWITCH

Backup

1шт.

Not Shown

1шт.

BN98249

NEUTRAL START SWITCH

1шт.

25

282775A1

IGNITION SWITCH

With Padded Keys

1шт.

BN98413

IGNITION KEY

(2 Keys)

1шт.

26

342465A1

SWITCH

range select

1шт.

27

BN29440

KNOB

for Contact Block BN29439

1шт.

Speed Range

1шт.

28

BN29446

SWITCH

Toggle, On-Off

1шт.

32

BN29445

SWITCH

On-Off-On

1шт.

33

BN29445

SWITCH

On-Off-On

1шт.

34

BN29445

SWITCH

On-Off-On

1шт.

35

BN29445

SWITCH

On-Off-On

1шт.

36

BN29446

SWITCH

Toggle, On-Off

1шт.

37

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

38

BN29445

SWITCH

On-Off-On

1шт.

39

BN29446

SWITCH

Toggle, On-Off

1шт.

40

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

41

BN29266

SWITCH

Windshield Wiper

1шт.

42

BN29273

SWITCH

Headlight/Taillight

1шт.

43

BN29446

SWITCH

Toggle, On-Off

1шт.

44

BN16183

LOOM

Harness, .413" id, Slit, Bulk

1шт.

45

BN24348

GRIP

Handle W/Switches (Complete)

1шт.

BN98670

SWITCH

Push Button

4шт.

Not Shown

1шт.

Boom Function-Yellow Green Boot

1шт.

BN98672

BOOT

Green

2шт.

Not Shown

1шт.

BN98673

BOOT

Yellow

2шт.

Not Shown

1шт.

BN29986

INSERT

Grip, 1" Dia x 1.6" Nylon

1шт.

Not Shown

1шт.

BN98675

SWITCH

On-Off Toggle

1шт.

Not Shown

1шт.

BN98676

BOOT

Miniature Toggle

1шт.

Not Shown

1шт.

46

BN29318

FLOOR MAT

(Not Shown)

1шт.

Not Shown

1шт.

47

BN25331

PLATE

Raven Mount

1шт.

48

BN25318

CONTROL UNIT

Foam Control (Increase/Decrease Foam) - RHS

1шт.

BN27460

Switch - Foam Control (Increase/Decrease Foam)

1шт.

Not Shown

1шт.

W/Circuit Board

1шт.

High Volume Package

1шт.

52

BN27461

GAUGE

Pressure 0-60 psi

1шт.

High Volume Package

1шт.

53

BN63712

FLASHER SWITCH

Signal Light

1шт.

54

BN63836

Signal Indicator Light

2шт.

55

BN63865

HOURMETER

1шт.

56

BN29780

INDICATOR LIGHT

Red, 12V

1шт.
