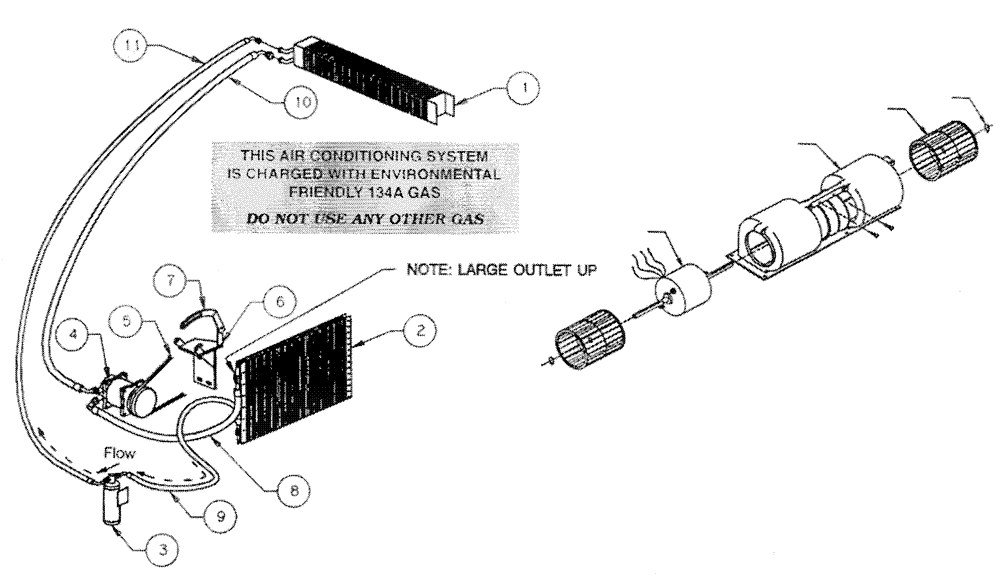

Запчасти Case IH PATRIOT II (02-001) - AIR CONDITIONER Cab Exterior

1

BN98106

EVAPORATOR

Coil

1шт.

2

BN98191

COIL

Condenser

1шт.

3

BN98192

RECEIVER-DRYER

1шт.

4

BN98636

COMPRESSOR

1шт.

5

BN98634

BELT

1шт.

6

BN98193

MOUNTING PLATE

Bracket

1шт.

7

BN98194

BRACKET

Tightener

1шт.

8

BN98637

HOSE

13/32" x 31. 5" (High Pressure)

1шт.

9

BN98639

HOSE

5/16" x 28" (High Pressure)

1шт.

10

BN98641

HOSE

1/2" x 196.25" (Low Pressure)

1шт.

11

BN98642

HOSE

5/16" x 194.25" (High Pressure)

1шт.

12

BN67044

HOUSING

Blower

1шт.

13

BN98564

MOTOR

12 V 5/16 Double Shaft

1шт.

14

BN98722

FAN

Wheel

2шт.

15

BN98565

RETAINER

2шт.

BN67045

BLOWER

Assembly

1шт.

Not Shown

1шт.

BN25982

AC Pulley

1шт.

Not Shown

1шт.

BN98808

FILTER

A/C Recirculation Filter, Not Shown

2шт.
