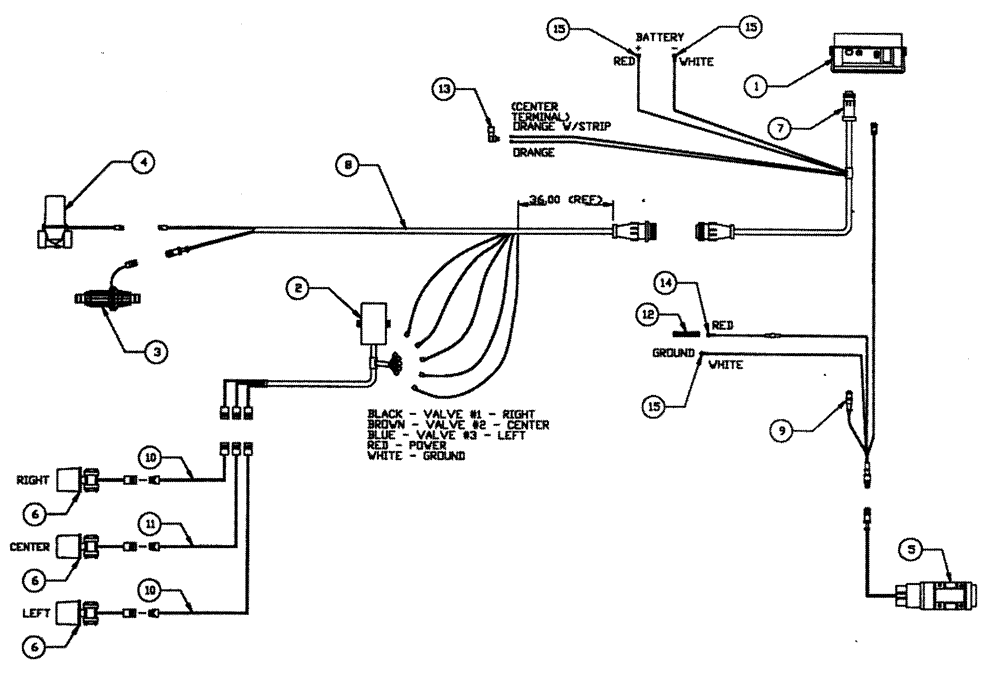

Запчасти Case IH PATRIOT 150 (12-008) - CONTROLLER - RAVEN (06) - ELECTRICAL

1

BN24515

CONSOLE

SCS440

1шт.

2

BN24521

RELAY

3 Boom Interface

1шт.

3

87378188

REPAIR KIT

Raven RFM60 Flow Meter With Adaptor Harness

1шт.

BN25995

REPAIR KIT

Transducer

1шт.

BN25996

O-RING

Small

1шт.

BN25997

O-RING

Large

1шт.

4

BN302855

VALVE

1 1/2" 440 Assembly

1шт.

5

BN95030A

RADAR

1шт.

5

BN95030AR

SENSOR

PATRIOT 150 SPRAYER (OLD CAB) (1996-1997) (2/96-6/97)

1шт.

5

BN95030AC

CORE-SENSOR

Return Number

1шт.

6

BN53495

VALVE

Ball

3шт.

7

BN24516

CABLE

Console 3'

1шт.

8

BN24517

CABLE

Flow Control

1шт.

9

BN24519

CABLE

Radar With AGC1 Fuse

1шт.

10

BN98398

25 FT. 3 Pin Extension

2шт.

11

BN98399

10 FT. 3 Pin Extension

1шт.

12

BN29444

BAR

Bus

1шт.

13

BN29522

SWITCH

Dimmer Floor Mount

1шт.

14

BN16122

TERMINAL

Terminal - #10 Ring

1шт.

15

BN16124

Terminal - 5/16" Ring

3шт.

BN24524

MOUNT

Valve, Raven

1шт.

Not Shown

1шт.
