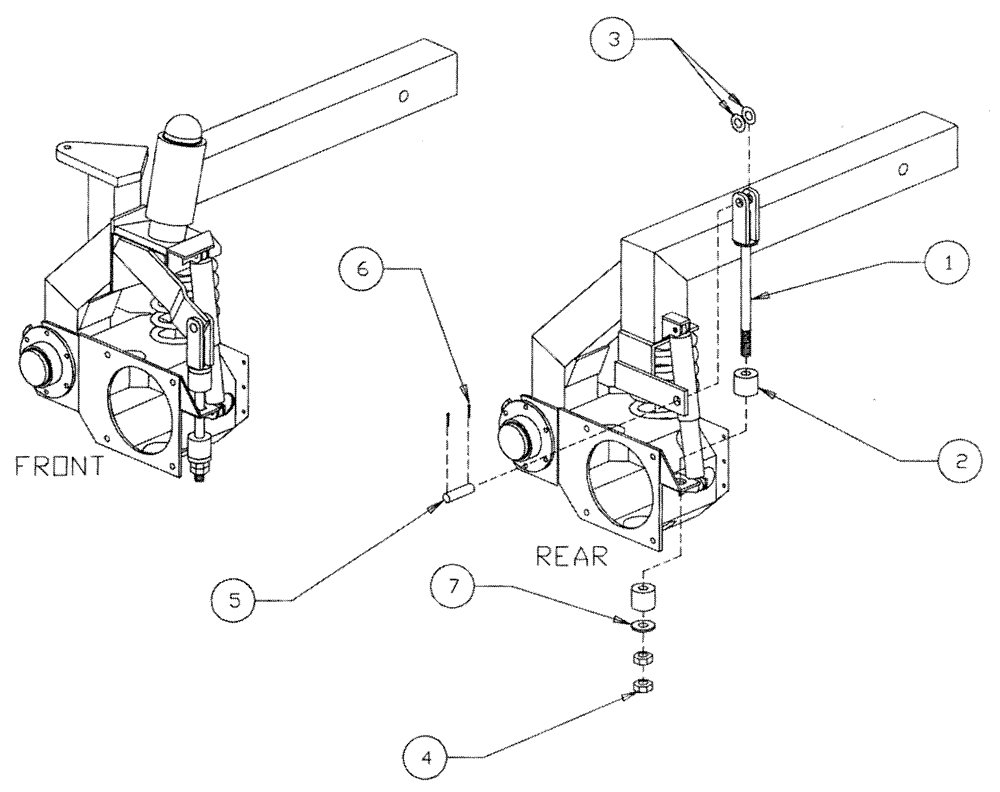

Запчасти Case IH PATRIOT 150 (04-004) - SHOCK LIMITER ASSEMBLY Suspension & Frame

1

BN300931

STOP

Stop

4шт.

2

BN27238

CUSHION

Urethane, 2.5" od x 1" id x 2"

8шт.

3

50161

WASHER Hex, 3/4"-10 x 5", G5

8шт.

4

425-1516

JAM NUT,Jam, 1"-14, G5

8шт.

5

BN27229

PIN,25.4mm OD x 69.85mm L

4шт.

6

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16" x 3/4", Type E

8шт.

7

BN300277

RETAINER

Spring, 2.75 OD, 1.10 ID

4шт.
