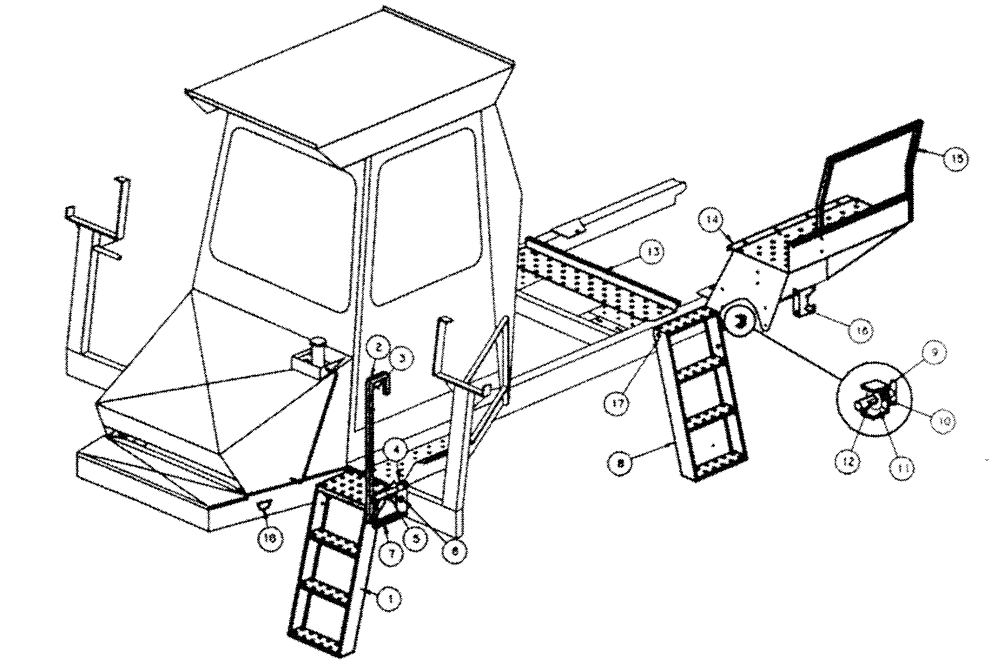

Запчасти Case IH PATRIOT 150 (04-002) - LADDER ASSEMBLY Suspension & Frame

1

BN25145

LADDER

Front

1шт.

2

BN25144

HANDLE

1шт.

3

BN25135

LEVER

Trip Rod, 1/4" x 31"

1шт.

4

BN25136

LEVER

1шт.

5

BN25137

LEVER

2шт.

6

BN25138

SHAFT

1" x 17.25"

1шт.

BN50605

PIN, ROLL

7/32 x 1 1/2

1шт.

7

BN29400A

CYLINDER

Gas Charged

1шт.

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

1шт.

8

BN24311

LADDER

L.H. Side

1шт.

9

BN25257

PIN

Side Ladder

1шт.

10

BN31937

SPRING

Compression, .905 x .765 2

1шт.

11

BN50157

WASHER

3/4, G5

1шт.

12

BN31444

PIN, ROLL

1/4 x 1 1/2

1шт.

13

BN24158

LOAD DECK

14 ga. HRS, 13" x 44"

1шт.

14

BN24513

BRACKET

12 GA HRS 7.0 x 34.50

1шт.

For Elliptical Tank Only

1шт.

15

BN24525

TUBE

Railing 12 ga 1 x 1 x 71.12

1шт.

For Elliptical Tank Only

1шт.

16

BN29447

BRACKET

10 ga HRS 5.92" x 6.25"

1шт.

17

BN24557

PIN

1" CFRD x 18.75

1шт.

BN50605

PIN, ROLL

7/32 x 1 1/2

1шт.

19

BN318539

PLATFORM ASSY.

Deck, LH, 800 Elliptical

1шт.

For Elliptical Tank Only

1шт.
