Запчасти Case IH PATRIOT 150 (09-011) - LIQUID PLUMBING - TANK & SKID (750 GAL. TANK) Liquid Plumbing

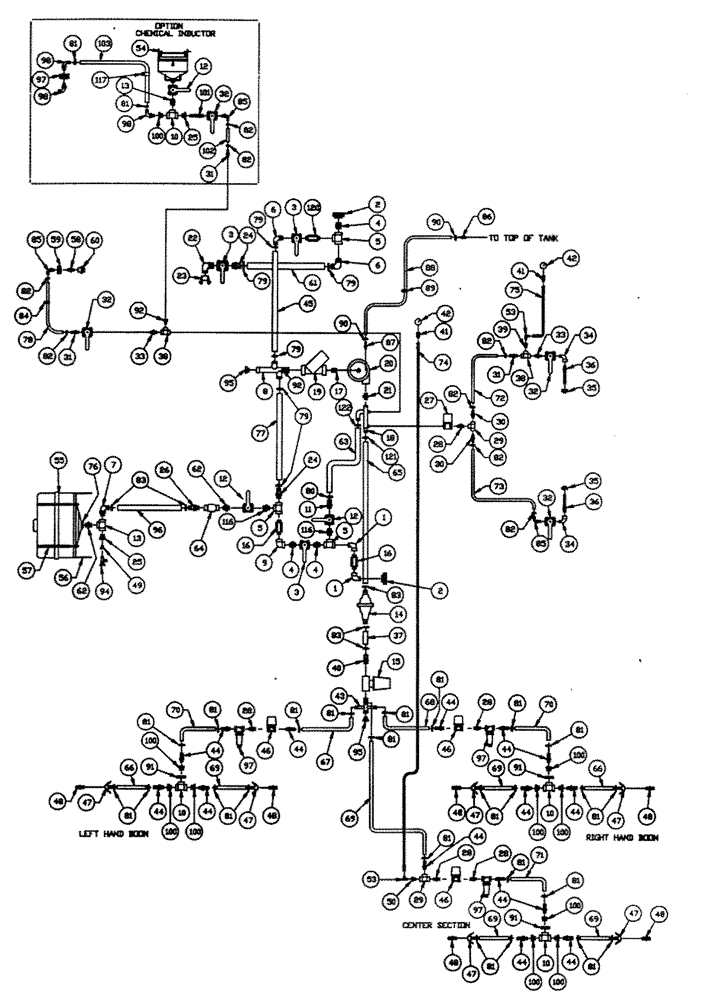

Схема запчастей Case IH PATRIOT 150 - (09-011) - LIQUID PLUMBING - TANK & SKID (750 GAL. TANK) Liquid Plumbing
71
31
25
41
28
90
31
7
100
3
12
84
6
83
48
42
46
55
64
13
29
14
3
100
83
82
81
97
44
75
47
12
85
19
97
27
77
1
82
10
60
30
81
103
63
100
87
24
37
90
15
66
72
10
81
82
4
100
65
62
54
121
97
76
91
5
20
81
26
88
92
94
32
10
31
100
57
8
81
81
85
23
81
98
46
4
88
28
61
80
24
69
36
79
44
44
44
36
22
56
81
48
50
35
32
79
49
100
46
11
81
92
28
81
82
69
81
34
69
81
100
67
9
70
17
34
3
44
44
79
47
39
69
116
23
80
91
73
30
1
81
32
2
68
85
21
89
44
47
53
38
48
102
3
100
120
70
81
47
97
53
78
82
48
5
44
79
5
4
91
81
44
92
81
98
100
95
66
33
74
86
42
83
81
59
79
89
44
96
101
95
45
58
12
43
56
100
48
81
13
116
36
6
48
117
47
25
2
69
41
82
44
62
16
122
49
35
10
44
47
82
81
10
8
96

Артикул

Название

Примечание

Количество

1

BN73785

ELBOW

90º Street 2" Poly

2шт.

2

BN73784

FITTING

Bulkhead - 2"

2шт.

3

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

3шт.

4

BN73783

NIPPLE

2"

3шт.

5

BN73779

TEE,2" Poly Tee

2" Poly Pipe

3шт.

6

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

2шт.

7

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

8

BN25332

MANIFOLD

Inlet

1шт.

9

BN73789

FITTING

2" 90°

1шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

3шт.

11

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

2шт.

13

BN73662

TEE

1 1/4"

1шт.

14

87378188

REPAIR KIT

Raven RFM60 Flow Meter With Adaptor Harness

1шт.

16

BN302855

VALVE

1 1/2" 440 Assembly

1шт.

16

BN73786

NIPPLE

2" x 4"

2шт.

17

BN73320

NIPPLE

1-1/2" SS

1шт.

18

BN29958

MANIFOLD

Liq. Product 770

1шт.

19

BN73718

Strainer Ass'y

1шт.

BN24084

FILTER STRAINER

Screen - 30 Mesh for BN73718

1шт.

20

NSS

NOT SOLD SEPARAT

1шт.

See Fig. 09-004 For Seal & Repair Parts

1шт.

21

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

22

BN25262

ELBOW

90°, 2" NPT

1шт.

23

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

24

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

25

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

1-1/4" x 3/4"

1шт.

26

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

27

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

28

BN73648

NIPPLE

1" Short Poly Pipe

5шт.

29

BN73629

TEE

1" Poly Pipe

2шт.

30

BN53666

FITTING

Barb - 1" x 3/4" Hose Shank

2шт.

31

BN73561

FITTING

Barb - 3/4"

2шт.

32

BN73564

VALVE

Ball - 3/4"

3шт.

33

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

Pipe, 3/4"

2шт.

34

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

35

BN73563

BULKHEAD

Fitting

2шт.

36

BN53671

AGITATOR

2шт.

37

BN24530

HOSE

1 1/4" EPDM x 6"

1шт.

38

BN73560

TEE

3/4"

2шт.

39

BN73550

BUSHING

3/4" x 1/4"

1шт.

40

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

Barb- 1 1/2" x 1 1/4"

1шт.

41

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

2шт.

42

BN98104

ELECTRICAL GAUGE

100 PSI

2шт.

43

BN25333

MANIFOLD

Outlet

1шт.

44

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

15шт.

45

BN53847

HOSE,2.00" ID x 23.50"

1шт.

46

BN53495

VALVE

Ball

3шт.

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

47

BN53668

COUPLING

1" Female, HS SHK

6шт.

48

BN53667

COUPLING

Male 1"

6шт.

49

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

3/4" x 1/2"

1шт.

50

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

53

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

2шт.

55

BN24189

TANK

1шт.

BN24183

COVER

Rinse Tank (Ace)

1шт.

56

BN24301

SUPPORT

35 Gallon Tank 771

1шт.

57

BN24298

BAND

2шт.

58

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

59

BN73563

BULKHEAD

Fitting

1шт.

60

29568

NOZZLE

Rinse 360 Degree

1шт.

61

BN68378

HOSE,36.00"

1шт.

62

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

Reducer, 1.25 x 1.5

2шт.

63

BN53754

HOSE,12.50"

1шт.

65

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

66

BN53845

1" x 108"

2шт.

67

BN66866

1" x 195"

1шт.

68

BN66867

1" x255"

1шт.

69

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

5шт.

70

BN66869

1" x 116"

2шт.

71

BN66865

1" x 29"

1шт.

72

BN53740

HOSE,0.75" ID x 57.00"

1шт.

73

BN53783

HOSE

3/4" x 39"

1шт.

74

BN29999

HOSE

3/8" id EPDM x 260"

1шт.

75

BN67392

HOSE

3/8" x 144" EPDM

1шт.

76

BN73733

FITTING

1 1/2" Bulkhead

1шт.

77

BN53846

HOSE

2" x 18"

1шт.

78

BN53766

3/4" x 92"

1шт.

79

BN76056

HOSE CLAMP

#36

6шт.

80

BN76093

HOSE CLAMP

#28

1шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

24шт.

82

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

6шт.

83

BN76084

HOSE CLAMP

Adj. #24, SS

5шт.

84

86625038

CLAMP,25.4mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

85

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

Barb - 3/4" x 90°

2шт.

86

BN72039

Barb- 1/4" x 1/4"

1шт.

87

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

88

BN53786

HOSE

1/4" x 92"

1шт.

89

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

90

BN76094

HOSE CLAMP

SS #M4

2шт.

91

BN21276

CLAMP

2 1/2" Muffler

3шт.

92

BN73553

PLUG

3/4" NPT, Poly

3шт.

94

BN53817

DRAIN VALVE

1/2" Plastic

1шт.

98

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

2шт.

96

BN24529

1 1/4" x 20"

1шт.

97

BN73681

FILTER STRAINER

Line

3шт.

97a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

97b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

100

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1

9шт.

116

BN73780

NIPPLE

Reducer

2шт.

120

BN73790

LUBE NIPPLE

2" x 6"

1шт.

121

BN63810

T-Bolt - 1 3/4"

1шт.

122

BN53811

CLAMP

2" ID, T-bolt

1шт.

BN72041

HOSE

1/4" Bulk EPDM Discharge

1шт.

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

BN53621

HOSE,1.50" ID BULK

EPDM Suction

1шт.

BN29564

HOSE

2" Bulk EPDM Suction

1шт.

BN29358

SKID PLATE

750 Gallon

1шт.

BN29291

TANK

750 Gallon

1шт.

BN29430

STRAP

Tankband - 750 Gallon

3шт.

BN98288

COVER

Man-hole (500-750 Gal. Tank)

1шт.

BNS0707

J-Bolt

6шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

Chemical Inductor - Optional

1шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

Chemical Inductor - Optional

1шт.

13

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

Chemical Inductor - Optional

1шт.

25

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

Chemical Inductor - Optional

1шт.

31

BN73561

FITTING

Barb - 3/4"

1шт.

Chemical Inductor - Optional

1шт.

32

BN73564

VALVE

Ball - 3/4"

1шт.

Chemical Inductor - Optional

1шт.

54

BN24269

TANK

Chemical Inductor

1шт.

Chemical Inductor - Optional

1шт.

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

Chemical Inductor - Optional

1шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

Chemical Inductor - Optional

1шт.

82

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

2шт.

Chemical Inductor - Optional

1шт.

85

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

Barb - 3/4" x 90°

1шт.

Chemical Inductor - Optional

1шт.

97

BN73680

FITTING

bulkhead 1" poly

1шт.

Chemical Inductor - Optional

1шт.

98

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

Hose Barb - 90° 1"

3шт.

Chemical Inductor - Optional

1шт.

100

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1

1шт.

Chemical Inductor - Optional

1шт.

101

BN23475

VENTURI

1шт.

Chemical Inductor - Optional

1шт.

102

BN53819

HOSE

EPDM, 3/4" ID x 66"

1шт.

Chemical Inductor - Optional

1шт.

103

BN53821

HOSE

1" x 100"

1шт.

Chemical Inductor - Optional

1шт.

117

BN570018

CLAMP

vinyl coated 1-7/16

1шт.

Chemical Inductor - Optional

1шт.

Выбрано товаров: 149
