Запчасти Case IH PATRIOT 150 (09-005) - LIQUID PLUMBING - TANK & SKID (500 GAL. TANK) Liquid Plumbing

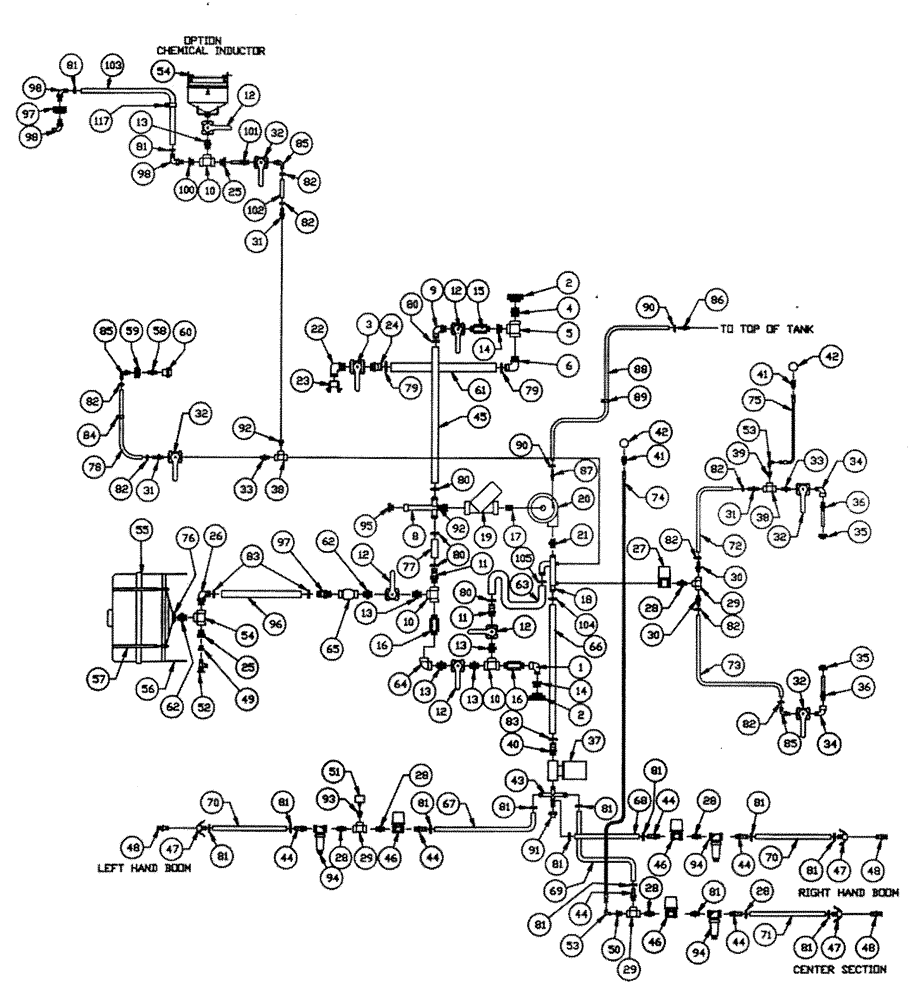

Схема запчастей Case IH PATRIOT 150 - (09-005) - LIQUID PLUMBING - TANK & SKID (500 GAL. TANK) Liquid Plumbing
80
37
12
70
38
26
39
46
12
86
28
2
44
43
44
22
36
81
44
42
82
12
88
14
28
16
29
41
54
85
10
48
47
82
28
25
28
57
81
42
81
62
19
12
20
51
60
64
13
35
90
82
80
9
13
46
13
59
30
27
81
90
81
34
62
105
76
68
79
18
49
102
11
98
54
77
67
29
98
5
103
85
81
70
91
79
96
92
81
58
30
82
69
32
13
34
40
53
81
80
93
10
82
24
52
46
11
81
78
32
16
92
71
33
30
1
95
44
61
100
44
28
81
97
63
31
53
80
36
81
2
82
81
48
81
48
21
83
32
13
31
83
35
72
101
25
6
82
23
4
66
47
5
73
74
13
104
8
87
31
32
81
97
84
47
12
56
3
89
75
14
33
117
43
85
17
94
94
28
65
90
94
32
44
29
30
10
41

Артикул

Название

Примечание

Количество

1

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.

2

BN73784

FITTING

Bulkhead - 2"

2шт.

3

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

1шт.

4

BN73783

NIPPLE

2"

1шт.

5

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

6

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

1шт.

8

BN22469

Inlet

1шт.

9

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

2шт.

11

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

2шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

4шт.

13

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

4шт.

14

BN73787

SLEEVE

Bushing - 2"-1 1/2"

2шт.

15

BN73722

NIPPLE, LUBE,1-1/2" Male NPT x 1-1/2" Male NPT, 6" Long

NIPPLE 1-1/2" x 6" Poly

1шт.

16

BN73732

LUBE NIPPLE

1 1/2" x 4"

2шт.

17

BN73320

NIPPLE

1-1/2" SS

1шт.

18

BN29958

MANIFOLD

Liq. Product 770

1шт.

19

BN73718

1шт.

BN24084

FILTER STRAINER

30 Mesh for Strainer #73718

1шт.

20

NSS

NOT SOLD SEPARAT

1шт.

See Fig. 09-004 For Seal & Repair Parts

1шт.

21

BN73270

NIPPLE

Close 1.25 NPT SS

1шт.

22

BN25262

ELBOW

90°, 2" NPT

1шт.

23

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

24

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

26

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

1-1/4" x 3/4"

1шт.

26

BN72663

Hose - 90° 1 1 /4"

1шт.

27

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

28

BN73648

NIPPLE

1" Short Poly Pipe

6шт.

29

BN73629

TEE

1" Poly Pipe

3шт.

30

BN53666

FITTING

Barb - 1" x 3/4" Hose Shank

2шт.

31

BN73561

FITTING

Barb - 3/4"

2шт.

32

BN73564

VALVE

Ball - 3/4"

3шт.

33

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

Pipe, 3/4"

2шт.

34

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

2шт.

35

BN73563

BULKHEAD

2шт.

36

BN53671

AGITATOR

2шт.

37

BN98127

HYDRAULIC VALVE

DICKEY-john® Servo

1шт.

38

BN73560

TEE

3/4"

2шт.

39

BN73550

BUSHING

3/4" x 1/4"

1шт.

40

BN29891

FITTING

Hosebarb 1" NPT x 3", SS

1шт.

41

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

2шт.

42

BN98104

ELECTRICAL GAUGE

100 PSI

2шт.

43

BN24163

Outlet

1шт.

44

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

6шт.

45

BN53763

1 1/2" x 14"

1шт.

46

BN53495

VALVE

Ball

3шт.

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

47

BN53668

COUPLING

1" Female, HS SHK

3шт.

48

BN53667

COUPLING

Male 1"

3шт.

49

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

3/4" x 1/2"

1шт.

50

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

51

BN98078

SENSOR

DICKEY-john Transducer

1шт.

52

BN53817

DRAIN VALVE

1/2" Plastic

1шт.

53

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

2шт.

54

BN73662

TEE

1 1/4"

1шт.

55

BN24189

TANK

1шт.

BN24183

COVER

Rinse Tank (Ace)

1шт.

56

BN24301

SUPPORT

35 Gallon Tank 771

1шт.

57

BN63984

STRAP

14 GA Hrs 1 x 49.5

2шт.

58

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

59

BN73563

BULKHEAD

1шт.

60

29568

NOZZLE

Rinse 360 Degree

1шт.

61

BN53808

2" x 36"

1шт.

62

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

Reducer, 1.25 x 1.5

2шт.

63

BN53754

HOSE,12.50"

1шт.

64

BN73713

ELBOW,90 Degree Elbow, 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

90° 1 1/2"

1шт.

66

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

66

BN29909

HOSE

1.25" ID x 39" EPDM

1шт.

67

BN53745

1" x 190"

1шт.

68

BN53746

HOSE,1.00" ID x 250.00"

EPDM

1шт.

69

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

1шт.

70

BN53756

HOSE,42.00"

2шт.

71

BN53743

FLEXIBLE HOSE,1.00" ID x 33.00"

1шт.

72

BN53740

HOSE,0.75" ID x 57.00"

1шт.

73

BN53783

HOSE

3/4" x 39"

1шт.

74

BN29999

HOSE

3/8" id EPDM x 260"

1шт.

75

BN67392

HOSE

3/8" x 144" EPDM

1шт.

76

BN73733

FITTING

1 1/2" Bulkhead

1шт.

77

BN53816

1 1/2" x 16 1/2

1шт.

78

BN53765

HOSE,85.00"

1шт.

79

BN76056

HOSE CLAMP

#36

2шт.

80

BN76093

HOSE CLAMP

#28

5шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

82

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

6шт.

83

BN78084

#24

3шт.

84

BN57232

CLAMP

1"

1шт.

85

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

Barb - 3/4" x 90°

2шт.

86

BN72039

Hose, 1/4" x 1/4"

1шт.

87

BN72040

FITTING,1/8" MPT x 1/4" HB

Hose Barb, 1/8" NPT x 1/4" ID HS

1шт.

88

BN53785

HOSE,74.00"

1шт.

89

BN41859

CLAMP

9/16", Vinyl Covered

1шт.

90

BN76094

HOSE CLAMP

SS #M4

2шт.

91

BN73606

CAP

1" NPT, Poly Pipe

1шт.

92

BN73553

PLUG

3/4" NPT, Poly

3шт.

93

BN53665

BUSHING

1" x .75 Poly

1шт.

94

BN73681

FILTER STRAINER

Line

3шт.

94a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

94b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

95

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

96

BN24529

1 1/4" x 20"

1шт.

97

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

104

BN53810

HOSE CLAMP

T-Bolt, 1 3/4"

1шт.

105

BN53811

CLAMP

2" ID, T-bolt

1шт.

BN72041

HOSE

1/4" Bulk EPDM Discharge

1шт.

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

1шт.

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

BN53621

HOSE,1.50" ID BULK

EPDM Suction

1шт.

BN29564

HOSE

2" Bulk EPDM Suction

1шт.

BN29498

SKID PLATE

500 Gallon

1шт.

BN67711

TANK

500 Gallon

1шт.

BN29577

STRAP

Band - 500 Gallon

3шт.

BN67713

COVER ASSY

Man - hole

1шт.

BN50707

BOLT

J-3/8-16 x 4.5

6шт.

BN67712

FILTER STRAINER

1шт.

10

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

Chemical Inductor - Optional

1шт.

12

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

Chemical Inductor - Optional

1шт.

13

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

Chemical Inductor - Optional

1шт.

25

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

1.5 x .75 Reducer Poly

1шт.

Chemical Inductor - Optional

1шт.

31

BN73561

FITTING

Barb - 3/4"

1шт.

Chemical Inductor - Optional

1шт.

32

BN73564

VALVE

Ball - 3/4"

1шт.

Chemical Inductor - Optional

1шт.

64

BN24269

TANK

Chemical Inductor

1шт.

Chemical Inductor - Optional

1шт.

BN24277

PIN

3/8" SS rod x 13.75"

1шт.

Chemical Inductor - Optional

1шт.

81

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

Chemical Inductor - Optional

1шт.

82

BN75978

HOSE CLAMP

SS-#12 ADJ. HS .56-1.25

2шт.

Chemical Inductor - Optional

1шт.

86

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

Barb - 3/4" x 90º

1шт.

Chemical Inductor - Optional

1шт.

97

BN73680

FITTING

bulkhead 1" poly

1шт.

Chemical Inductor - Optional

1шт.

98

BN53475

ELBOW,90 Degree Elbow, 1" Male NPT x 1" Hose Barb, Poly

Hose Barb - 90° 1"

3шт.

Chemical Inductor - Optional

1шт.

100

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1

1шт.

Chemical Inductor - Optional

1шт.

101

BN23475

VENTURI

1шт.

Chemical Inductor - Optional

1шт.

102

BN53819

HOSE

EPDM, 3/4" ID x 66"

1шт.

Chemical Inductor - Optional

1шт.

103

BN53820

1" x 86"

1шт.

Chemical Inductor - Optional

1шт.

117

BN540018

1 7/16"

1шт.

Chemical Inductor - Optional

1шт.

Выбрано товаров: 151
