Запчасти Case IH PATRIOT 150 (09-003) - LIQUID PLUMBING - (90) BOOMS Liquid Plumbing

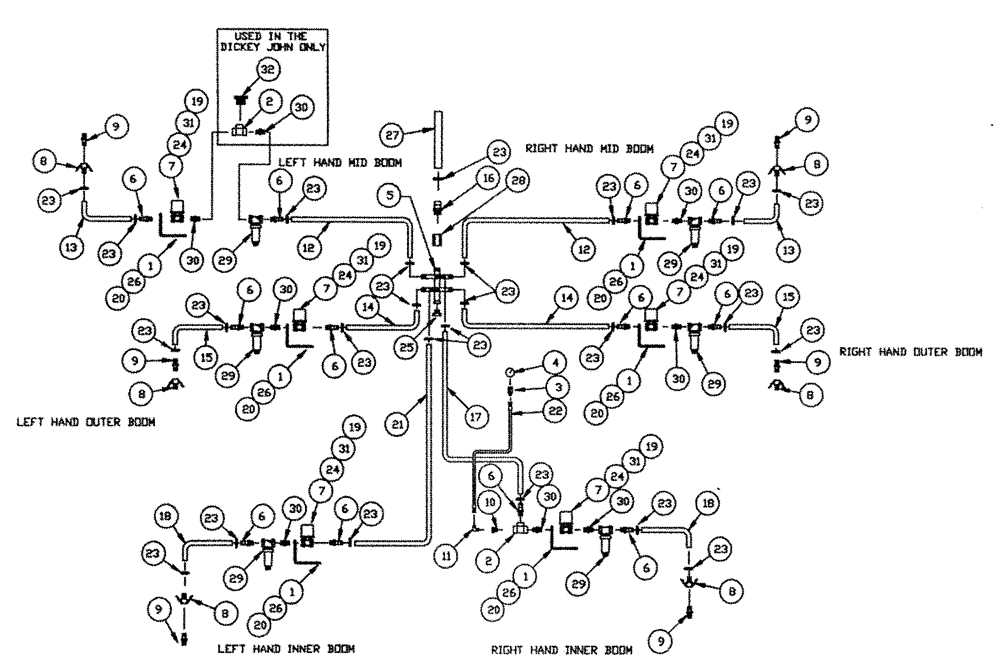

Схема запчастей Case IH PATRIOT 150 - (09-003) - LIQUID PLUMBING - (90) BOOMS Liquid Plumbing
27
29
12
23
9
31
11
23
7
8
9
23
20
26
1
1
26
4
16
20
26
22
2
6
1
29
23
23
6
20
23
6
8
26
14
6
23
30
24
20
8
31
30
23
23
23
13
29
30
10
1
32
12
23
31
30
24
7
1
3
15
6
20
26
9
21
25
6
29
24
23
23
15
23
5
23
6
29
18
1
31
19
7
6
19
28
19
24
2
23
29
7
23
7
31
23
31
9
30
6
23
9
17
24
13
7
6
6
8
30
8
24
26
9
8
19
30
23
18
20
19
6
19
30
23

Артикул

Название

Примечание

Количество

1

BN50051

NUT,1/4"-20, USR

12шт.

2

BN73629

TEE

1" Poly Pipe

2шт.

3

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

1шт.

4

BN98104

ELECTRICAL GAUGE

160 PSI Panel Mount

1шт.

5

BN66643

MANIFOLD

Outlet - 6 Port

1шт.

6

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

12шт.

7

BN16055

CONNECTOR, ELEC

CONNECTOR 3 Way Shroud Packard

6шт.

8

BN53668

COUPLING

1" Female, HS SHK

6шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

6шт.

10

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

11

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

12

BN53746

HOSE,1.00" ID x 250.00"

EPDM

2шт.

13

BN66853

1" EPDM X 333.00"

2шт.

14

BN66854

HOSE

1" EPDM x 135.00"

2шт.

15

BN66855

HOSE

1" EPDM x 26.00"

2шт.

16

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

1-1/2 NPT X 1-1/4 HB

1шт.

17

BN66857

HOSE

1" EPDM x 15.00"

1шт.

18

BN66858

HOSE

1" EPDM X 31.00"

2шт.

19

BN16057

ELEC. TERMINAL PIN,8 mm

Male Packard

18шт.

20

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

6шт.

21

BN66859

HOSE

1" EPDM X 23.00"

1шт.

22

BN29999

HOSE

3/8" id EPDM x 260"

1шт.

23

BN75990

HOSE CLAMP

#16, Stainless Steel

25шт.

24

BN16056

SEAL

Packard Plug

18шт.

25

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

26

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

12шт.

27

BN67135

HOSE

1.25 EPDM x 90.00"

1шт.

28

BN73738

COUPLING

1 1/2" Poly Pipe

1шт.

29

BN73681

FILTER STRAINER

1"- 50 Mesh

6шт.

30

BN73648

NIPPLE

1" Short Poly Pipe

8шт.

29a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

31

BN53495

VALVE

PP-Ball (2-Way) ELE

6шт.

29b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

32

BN53665

BUSHING

1" x .75 Poly

1шт.

BN24224

HARNESS

Center Boom

1шт.

Not Shown

1шт.

BN67136

WIRE HARNESS

Booms 420"

2шт.

Not Shown

1шт.

BN67243

DECAL

Strainer Pressure (Not shown)

1шт.

Not Shown

1шт.

Выбрано товаров: 40
