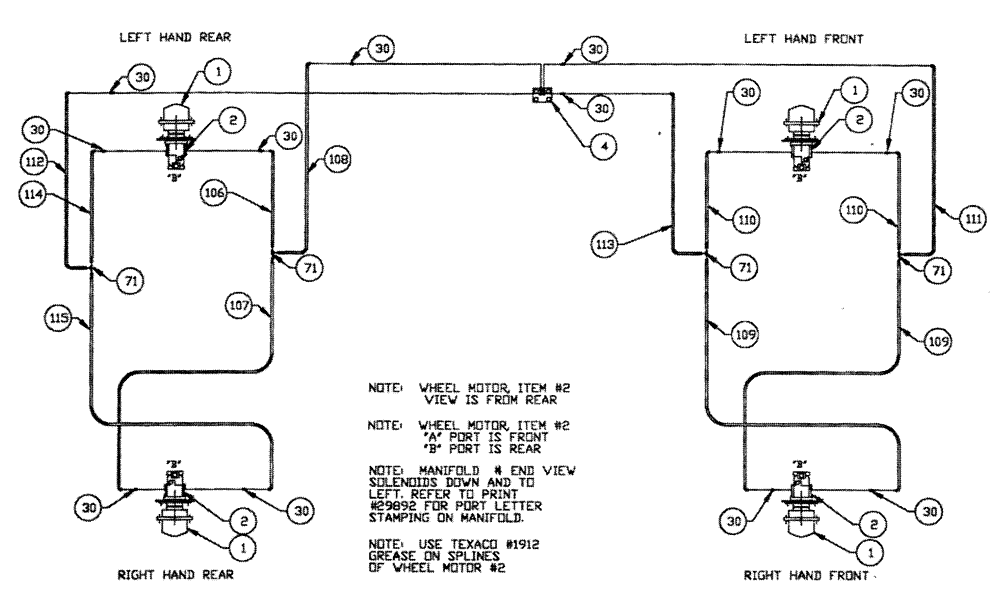

Запчасти Case IH PATRIOT 150 (06-009) - HYDRAULIC PLUMBING - WHEEL MOTORS & POWER SHIFT Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Hub - Planetary-Front Model #7

2шт.

See Fig. 05-002 for Seals & Repair Parts

1шт.

NSS

NOT SOLD SEPARAT

Hub - Planetary-Rear W/Brake Model #7

2шт.

See Fig. 05-002 for Seals & Repair Parts

1шт.

BN27372

CAP

hub cover

4шт.

2

BN54215

MOTOR

Wheel

4шт.

BN54215R

REMAN-HYD MOTOR

Patriot 150 (Old Cab) (1996-1997),

4шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

(Between Hub & Wheel Motor)

4шт.

BN98186

SEAL

lip, shaft

4шт.

4

NSS

NOT SOLD SEPARAT

Valve-Manifold

1шт.

See Fig. 06-013 for Seal & Repair Parts

1шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

12шт.

BN98019

O-RING

#6

12шт.

71

BN21422

TEE

7/16-20 JIC

4шт.

106

BN54233

HOSE

1/4" x 87"

1шт.

107

BN54232

HOSE

1/4" x 119", 100R1

1шт.

108

BN54149

HOSE,0.25" ID x 132.00", SAE 100R1

1шт.

109

BN54150

HOSE,0.25" ID x 110.00", SAE 100R1

2шт.

110

BN54177

HOSE

1/4" ID x 96", 100R1

2шт.

111

BN54152

HOSE,0.25" ID x 42.00", SAE 100R1

1шт.

112

BN54211

HOSE

1/4" x 132", long 90° elbow

1шт.

113

BN54212

HOSE

1 /4" x 42", long 90° elbow

1шт.

114

BN54230

HOSE

1/4" x 93"

1шт.

115

BN54217

HOSE

1/4" x 113"

1шт.
