Запчасти Case IH PATRIOT 150 (06-008) - HYDRAULIC PLUMBING - WHEEL MOTORS Hydraulic Plumbing

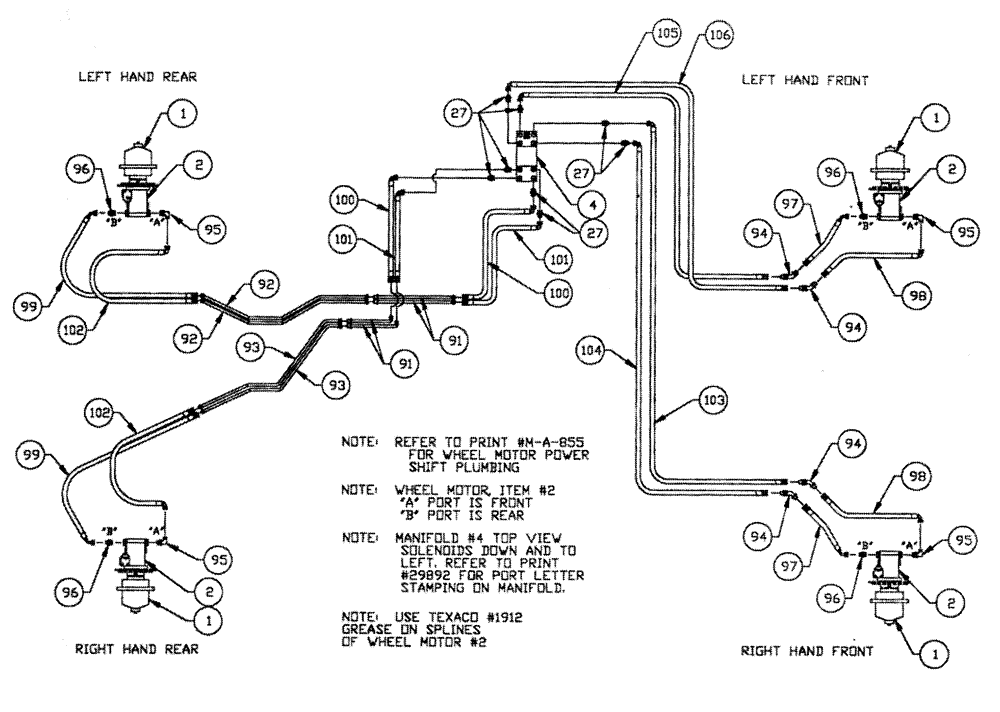

Схема запчастей Case IH PATRIOT 150 - (06-008) - HYDRAULIC PLUMBING - WHEEL MOTORS Hydraulic Plumbing
27
1
92
96
96
94
1
102
95
1
100
27
99
1
96
100
2
2
105
103
98
95
92
104
95
94
95
91
102
4
2
93
27
101
94
106
94
98
97
99
93
101
91
96
2
97

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hub-Planetary-Front Model #7

2шт.

See Fig. 04-002 for Seals Repair Parts

1шт.

NSS

NOT SOLD SEPARAT

Hub-Planetary-Rear W/Brake Model #7

2шт.

See Fig. 04-002 for Seals Repair Parts

1шт.

BN27372

CAP

hub cover

4шт.

2

BN54215

MOTOR

Wheel

4шт.

BN54215R

REMAN-HYD MOTOR

Patriot 150 (Old Cab) (1996-1997),

4шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

4шт.

Between Hub & Wheel Motor

1шт.

BN98186

SEAL

lip, shaft

4шт.

87268405

SNAP RING

4шт.

4

NSS

NOT SOLD SEPARAT

Valve - Manifold

1шт.

See Fig. 05-012 For Seal & Repair Parts

1шт.

27

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

8шт.

BN98016

O-RING

SAE-16 Buna N

8шт.

91

BN24931

TUBE

steel, 3/4" front

4шт.

92

BN24932

TUBE

steel, 3/4" LH, rear

2шт.

93

BN24933

TUBE

steel, 3/4" RH, rear

2шт.

94

BN53959

ELBOW

45° Bulkhead 3/4" JIC

4шт.

95

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

4шт.

96

BN21417

FITTING,1 5/16"-12 O-Ring x 1 1/16"-12, 37 Degree

4шт.

BN98016

O-RING

SAE-16 Buna N

4шт.

97

BN55229

HOSE

3/4" x 19"

2шт.

High Pressure

1шт.

98

BN55230

HOSE

3/4" x 25"

2шт.

High Pressure

1шт.

99

BN55231

HOSE,0.75" ID x 85.25"

2шт.

High Pressure

1шт.

100

BN53691

HOSE

3/4" x 22", high pressure

2шт.

High Pressure

1шт.

101

BN53694

HOSE

3/4" x 27", high pressure

2шт.

High Pressure

1шт.

102

BN55232

HOSE

3/4" x 89 1/4""

2шт.

High Pressure

1шт.

103

BN53695

HYDRAULIC HOSE,19.05mm ID x 2997.2mm L

1шт.

High Pressure

1шт.

104

BN53696

HYDRAULIC HOSE,19.05mm ID x 3098.8mm L

1шт.

High Pressure

1шт.

BN24219

High Pressure Hose

2шт.

BN50940

U-BOLT

(Hose Clamp)

4шт.

105

BN55233

HYDRAULIC HOSE,0.75" ID x 124.00"

1шт.

High Pressure

1шт.

106

BN55234

HYDRAULIC HOSE,19.05mm ID x 3251.2mm L

1шт.

High Pressure

1шт.

Выбрано товаров: 45
