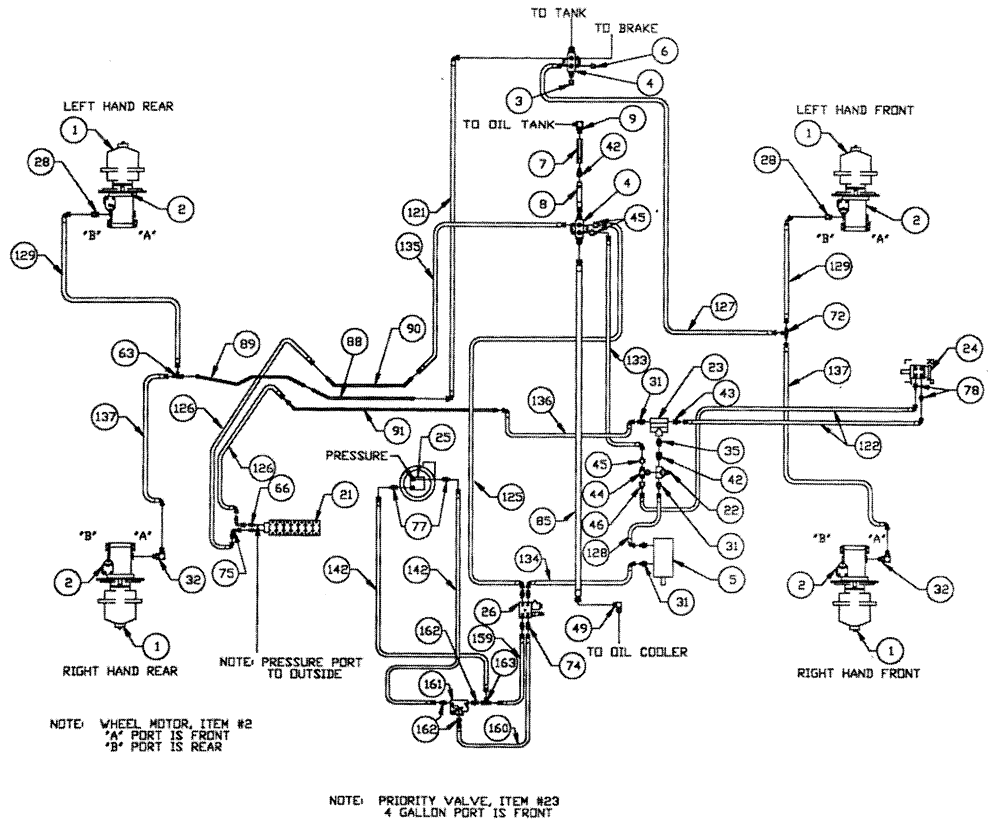

Запчасти Case IH PATRIOT 150 (06-002) - HYDRAULIC PLUMBING - BASIC UNIT Hydraulic Plumbing

1

NSS

NOT SOLD SEPARAT

Hub-PIanetary - Front Model 7

2шт.

See Fig. 05-002 for Seals & Repair Parts

1шт.

NSS

NOT SOLD SEPARAT

Hub-Planetary - Rear w/lntegral Brake Model 7

2шт.

See Fig. 05-002 for Seals & Repair Parts

1шт.

2

BN54215

MOTOR

Wheel

4шт.

BN54215R

REMAN-HYD MOTOR

Patriot 150 (Old Cab) (1996-1997),

4шт.

BN54215C

CORE-HYDRAULIC PUMP

Return Number

1шт.

BN54033

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

4шт.

Between Hub & Wheel Motor

1шт.

BN98186

SEAL

lip, shaft

4шт.

3

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

4

BN67245

MANIFOLD

Hyd. Return

2шт.

5

BN67039

PUMP

Hydraulic Tandem CW Rotation

1шт.

BN98608

SEAL

shaft, for BN27195

1шт.

BN98609

REPAIR KIT

W/Wear Plates & Seals

1шт.

BN67039

PUMP

Hydraulic Tandem CW Rotation

1шт.

BN98608

SEAL

shaft, for BN27195

1шт.

BN98609

REPAIR KIT

Repair 90º

1шт.

6

BN22431

CROWN NUT,3/4"-16, 37 Degree

1шт.

7

BN67312

CHECK VALVE

1шт.

8

BN67311

HOSE

3/4" ID x 110"

1шт.

9

BN67313

90° 3/4M x 12M-O-Ring

1шт.

21

86986492

HYDRAULIC VALVE

7 Bank

1шт.

See Fig. 06-015 for Seals & Repair Parts

1шт.

22

BN29234

VALVE PRESSURE RELIE,1-1/16" - 12

O-Ring Port

1шт.

23

BN29237

VALVE, PRESSURE RELI

EF Priority, 4.5 Gallons @ 150

1шт.

24

BN29233

HYDRAULIC STEERING

Control, Orbitrol

1шт.

BN98233

SEAL KIT

Seal Kit for BN29233

1шт.

25

NSS

NOT SOLD SEPARAT

Pump - Sprayer

1шт.

See Fig. 09-004 For Seal & Repair Parts

1шт.

26

BN29970

MANIFOLD

Solenoid & Relief Valve

1шт.

BN95962

KIT seal

1шт.

BN95744

CARTRIDGE

For 29970

1шт.

BN95745

COIL

solenoid valve

1шт.

BN98607

VALVE PRESSURE RELIE

for BN29970 (2000 PSI)

1шт.

28

BN51489

FITTING

STR.-1 1/16-12 O-Ring x 7/8-14 JIC

2шт.

BN98017

O-RING

SAE-12 Buna N

2шт.

31

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

5шт.

BN98017

O-RING

SAE-12 Buna N

5шт.

32

BN67865

ELBOW

90°, 1-1/16"-12 O-ring x 7/8"-14 JIC

2шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

35

BN444001

FITTING

STR.-1 1/16-12 O-Ring x 1 1/16-12JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

42

BN57224

FITTING

STR.-1 1/16-12 O-Ring x 1 1/16-12 JIC

2шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

43

BN57225

FITTING

STR.-1 1/16-12 O-Ring x 9/16-18 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

44

BN446032

TEE

1 1/16-12 O-Ring x 1 1/16-12 JIC

1шт.

BN98017

O-RING

SAE-12 Buna N

1шт.

45

BN53715

REDUCER

1-1/16"-12 Female JIC x 3/4-16 Male JIC

3шт.

46

BN53716

FITTING

1 1 /16-12 Female JIC x 9/16-18 Male JIC

1шт.

49

BN67881

ADAPTER

90º 1" NPT x #16 JIC

1шт.

63

BN53573

TEE

1 1/6-12 JIC Male-Female

1шт.

66

BN60440

ADAPTER

STR.-9/16-18 O-Ring x 3/4-16 JiC

2шт.

BN98019

O-RING

#6

2шт.

72

BN52289

HYD CONNECTOR

1 1/16-12 JIC

1шт.

74

BN444004

FITTING

4шт.

BN98018

O-RING

#8

4шт.

75

BN53707

FITTING

90° 3/4-16 JiC

2шт.

77

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

78

BN57226

ADAPTER

3/4-16 O-Ring x 9/16-18 JIC

2шт.

BN98018

O-RING

#8

2шт.

85

BN67876

HOSE

1" x 93", 100R3

1шт.

88

BN67650

HYD TUBE

Steel, 3/4", 2350 PSI

1шт.

90

BN66214

TUBE ASSY.

Steel, 1/2"

1шт.

91

BN65101

TUBE

steel, 1/2"

1шт.

121

BN67874

HOSE ASSY.

Assembly - 3/4" x 22"

1шт.

122

BN54173

HOSE

3/8" x 80"

2шт.

125

BN53968

HOSE

Assembly - 1 /2" x 20"

1шт.

126

BN53818

HOSE

1/2" ID x 66" 100R2

2шт.

127

BN67873

Assembly - 3/4" x 64"

1шт.

128

BN54163

HOSE,0.50" ID x 28.00", SAE 100R2

1шт.

129

BN67439

HOSE

Assembly - 1/2" x 116"

1шт.

133

BN54170

HOSE

1/2" x 74"

1шт.

134

BN54172

HOSE

1/2" ID x 90" 100R2

1шт.

135

BN53970

Assembly - 1/2" x 12"

1шт.

136

BN54186

HOSE

1/2" x 30"

1шт.

137

BN55185

HOSE

1 /2" x 77"

2шт.

142

BN54238

HOSE

1/2" x 42", 100R2

2шт.

159

BN53501

HOSE,0.50" ID x 30.00", SAE 100R2

1шт.

500 Gallon Tank

1шт.

BN53728

HOSE

1/2" x 56"

1шт.

700 S.S. & 750 Elliptical

1шт.

BN55327

HOSE

1 /2" x 26"

1шт.

750 SPH

1шт.

160

BN55327

HOSE

1 /2" x 26"

1шт.

500 Gallon Tank

1шт.

BN55328

112" x 39"

1шт.

700 S.S.

1шт.

BN55326

HOSE

Assembly - 1/2 x 16 100R2

1шт.

750 SPH

1шт.

BN55331

HOSE

1/2" x 60"

1шт.

750 Elliptical

1шт.

161

BN65468

REGULATOR

Flow Regulator

1шт.

162

BN444008

FITTING

Adapter - 37° Flare 10

3шт.

163

BN55452

JIC 3/4-16 Male - Female

1шт.
