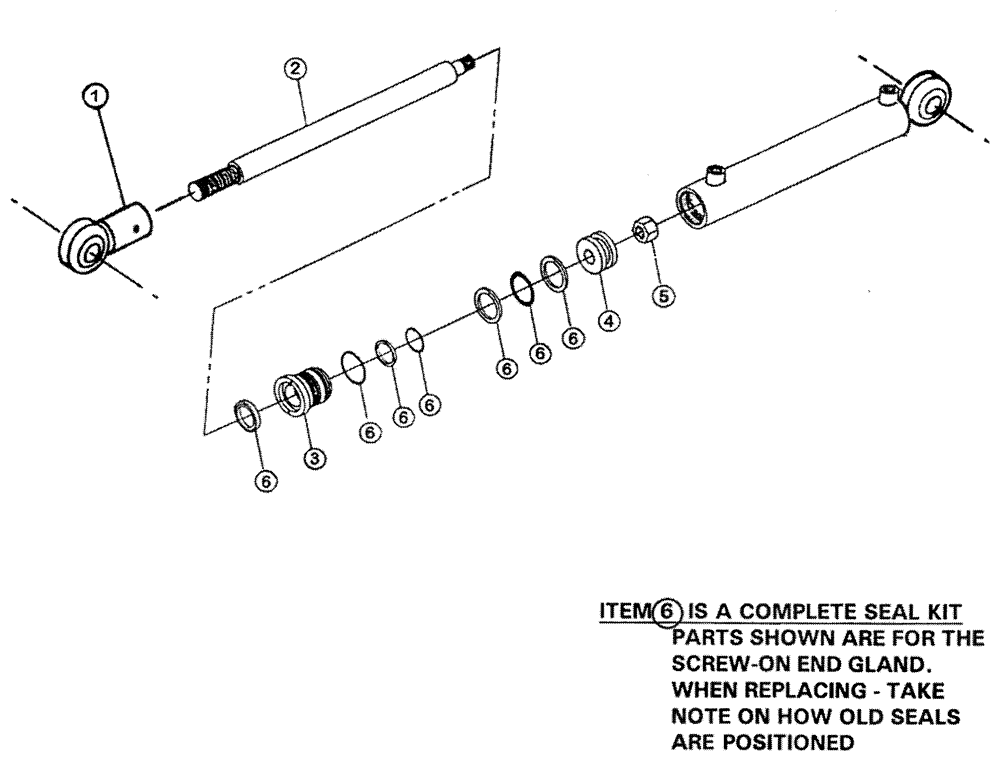

Запчасти Case IH PATRIOT 150 (07-003) - HYDRAULIC CYLINDER - BOOM INNER FOLD (2" X 20" - 1 1/4" DIA. ROD) Cylinders

0

87271296

CYLINDER

Hydraulic w/Clevis (Complete)

1шт.

87271296R

REMAN-HYD CYLINDER

PATRIOT 150 (OLD CAB) (1996-1997) (2/96-6/97)

1шт.

87271296C

CORE-HYD CYLINDER

Return Number

1шт.

2

BN98516

CLEVIS

Rod

1шт.

3

BN98522

GLAND

End, For Cylinder BN52305

1шт.

4

BN98523

PISTON

for cylinder BN52305

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

BN98178

SEAL KIT

1шт.
