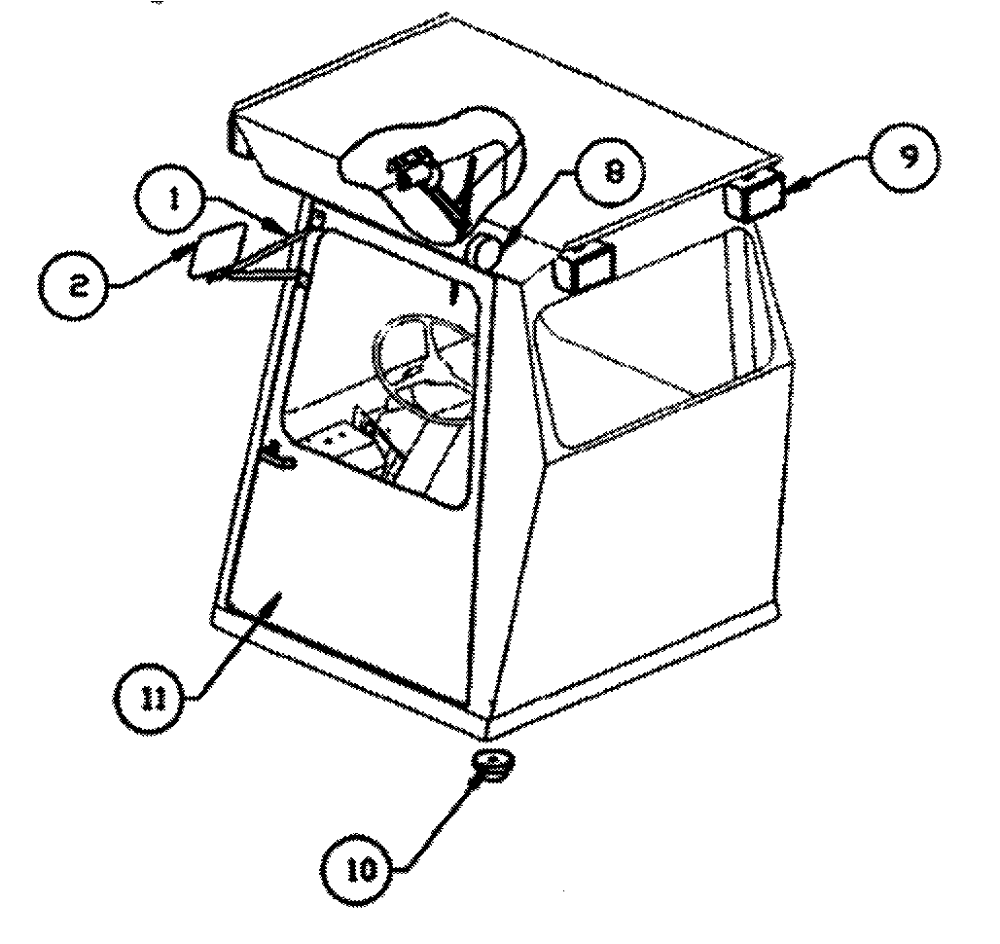

Запчасти Case IH PATRIOT 150 (01-003) - CAB - ACCESSORIES Cab Interior

1

BN63859

HYD TUBE

Mirror

4шт.

2

BN29251

REPLACEMENT MIRROR

Head, Black

2шт.

8

BN324281

LIGHT

Amber Flashing

2шт.

BN29973

LENS

Amber

4шт.

9

BN29252

LIGHT

Flood 900/H9406 12V

4шт.

BN98185

LENS

Sealed Beam - Flood

4шт.

10

BN29243

ISOLATOR

Rubber 1/2" Bore

4шт.

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

4шт.

11

BN29309

Door - Complete

1шт.

BN29113

DOOR

1шт.

BN29420

SEAL

Clip-On, 194"

1шт.

BN29287

LATCH

Door, Inside, RH

1шт.

BN29288

HANDLE

Locking, Outside, With Keys

1шт.

BN98412

WRENCH

KEY, LOCK Door Handle

1шт.

BN29290

STRIKER PLATE

Door

1шт.

BN29823

SHIM

14 ga 304 1" x 3"

3шт.

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

Part of BN29434

1шт.

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

Part of BN29434

1шт.

BN29101

Door Stop - Bottom, Serial Range: (Bolt-Floor)

1шт.

BN29906

Lifting Eye

2шт.

Not Shown

1шт.

BN25260

HOLDER

Pop Can

1шт.

Not Shown

1шт.

BN25313

MOUNTING PLATE

Pop Holder

1шт.

Not Shown

1шт.

BN25261

ASH TRAY

Self Leveler

1шт.

Not Shown

1шт.

BN25259

MOUNTING PLATE

Ash Tray

1шт.

Not Shown

1шт.

BN98808

FILTER

A/C Recirculation Filter, Not Shown

2шт.
