Запчасти Case IH PATRIOT 150 (01-001) - CAB Cab Interior

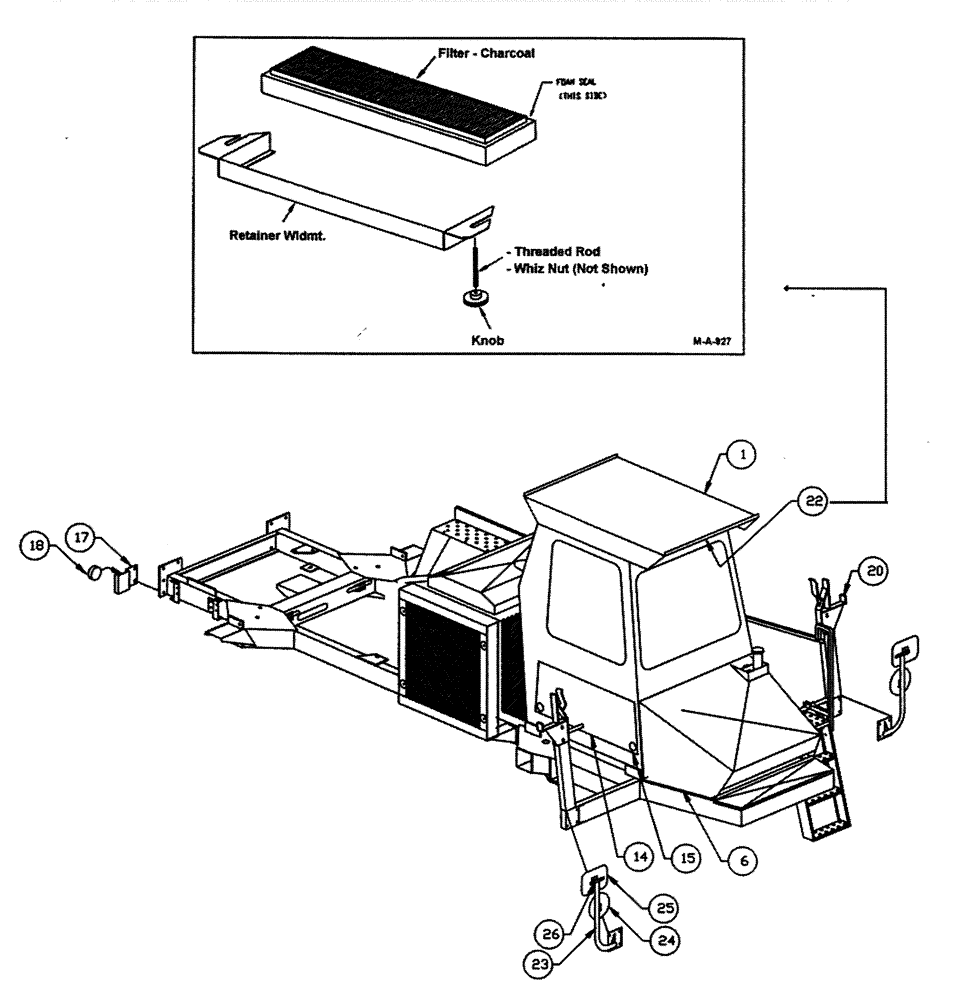

Схема запчастей Case IH PATRIOT 150 - (01-001) - CAB Cab Interior
15
22
1
18
2
25
23
17
6
20
26
14

Артикул

Название

Примечание

Количество

1

BN29102

Assembly - Complete

1шт.

See Figs. 01-002, 01-003 & 01-004 for more complete detail, See Ladder Assemblies for detail on ladders.

1шт.

6

BN29300

FUEL TANK

1шт.

BN27530

CAP

Gas, Vented

1шт.

BN29308

SENDER UNIT

Fuel Tank

1шт.

BN29631

Hose - 3/8" ID x 108"

1шт.

BN29632

Return Fuel Hose - 1/4" ID X 120"

1шт.

BN52300

ELBOW

90° 1/4"-18 NPT

1шт.

BN52303

FITTING

3/8" NPT x 1/4" 90°

1шт.

BN72017

HOSE

barb-1/4" NPTM x 3/8" steel

1шт.

BN76094

HOSE CLAMP

SS #M4

4шт.

BN94071

VALVE

Ball - 1 /4" NPT Bronze

1шт.

14

BN29111

PANEL

1шт.

BN29962

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 17 1/4"

2шт.

BN29963

RUBBER SEAL

Weatherstrip 1/4" x 3/4" x 39"

1шт.

BN29964

RUBBER SEAL

RUBBER SEAL Weatherstrip 1/4" x 3/4" x 41"

1шт.

BN29497

Mount - Fuse Holder

1шт.

BN29907

Edge Guard (Hole in Floor)

1шт.

15

BN29392

KNOB

3" With 3/8"-16 Female Thread

2шт.

17

BN29639

BRACKET, SUPPORTING

10 ga HRS 6" x 12"

2шт.

18

BN325828

TAIL LAMP

Red

2шт.

BN29972

LENS

Red

2шт.

20

BN24464

CRADLE

LH

1шт.

BN24465

CRADLE

RH

1шт.

22

NSS

NOT SOLD SEPARAT

Filter w/Retainer

1шт.

Not available as complete assembly.

1шт.

BN65271

RETAINER

Filter

1шт.

BN65448

KNOB

2шт.

BN22055

ROD

3/8"-16, x 2.38, SS, Threaded

2шт.

BN65288

FILTER

Air Element - (Charcoal)

1шт.

BN50052

LOCK NUT,1/4"-20, USR, SS

4шт.

Not Shown

1шт.

23

BN63857

ARM

Mirror

2шт.

24

BN63850

MIRROR

Convex

2шт.

25

BN63851

MIRROR

7 1/2 x 10 1/2

2шт.

26

BN306477

CLAMP

Assembly, Mirror

2шт.

Выбрано товаров: 36
