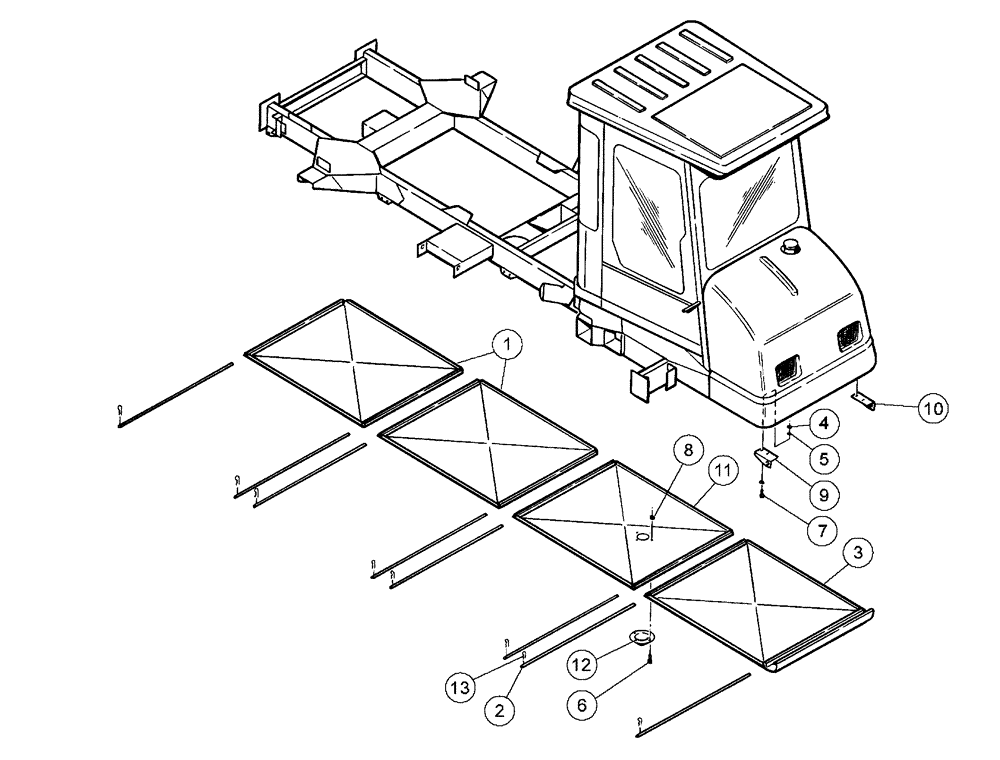

Запчасти Case IH PATRIOT 150 (11-001) - BELLYPAN ASSEMBLY Options

1

BN28493

PAN

belly

2шт.

2

BN28497

PIN,19.05mm OD x 1219.2mm L

3/4" CF Round x 48"

8шт.

3

BN28762

PAN

belly, front

1шт.

4

BN50131

LOCK NUT

3/8-16, CTR, PL

4шт.

5

BN50145

WASHER

3/8, G5

8шт.

6

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

7

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

8

280736

NUT,5/16"-18, GC

4шт.

9

BN69834

MOUNTING PLATE

RH Front Bellypan

1шт.

10

BN69835

MOUNTING PLATE

LH Front Bellypan

1шт.

11

BN69836

Bellypan with Hole

1шт.

12

BN69874

COVER Hole With Drain

1шт.

13

BN71006

COTTER PIN

1/8", #11

16шт.
