(09-045) - 90 6-BOOM SHUTOFF - DICKEY-JOHN™ LH BOOM

Запчасти Case IH PATRIOT 150 (09-045) - 90 6-BOOM SHUTOFF - DICKEY-JOHN™ LH BOOM Liquid Plumbing

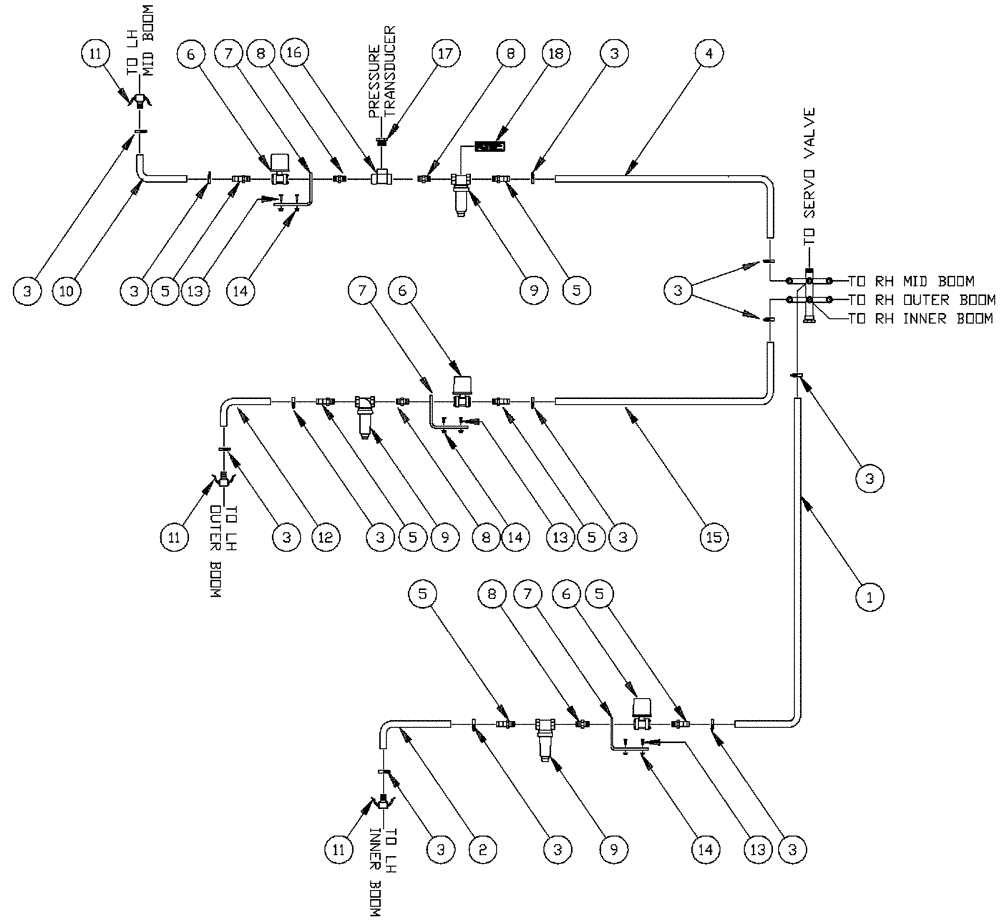

Схема запчастей Case IH PATRIOT 150 - (09-045) - 90 6-BOOM SHUTOFF - DICKEY-JOHN™ LH BOOM Liquid Plumbing
7
6
8
6
3
14
3
13
12
7
17
11
8
3
5
9
9
7
1
2
15
5
14
11
16
5
3
8
3
11
8
14
3
3
3
5
3
5
3
9
10
6
4
3
13
13
5
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN66857

HOSE

1" EPDM x 15.00"

1шт.

2

BN66858

HOSE

1" EPDM x 31.00"

1шт.

3

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

4

BN53746

HOSE,1.00" ID x 250.00"

EPDM

1шт.

5

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

6шт.

6

87389559

VALVE

Electric, 1" Ball

3шт.

7

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

3шт.

8

BN73648

NIPPLE

1" Short Poly Pipe

3шт.

9

BN73681

FILTER STRAINER

Assembly 1" 50 Mesh

3шт.

9a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

10

BN67565

HOSE

1" EPDM x 350.00"

1шт.

9b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

11

BN53668

COUPLING

1" Female, HS SHK

3шт.

12

BN66855

HOSE

1" EPDM x 26.00"

1шт.

13

BN50211

BOLT

1/4"-20 x .75, HH, G5, PI

6шт.

14

BN50051

NUT,1/4"-20, USR

6шт.

15

BN66854

HOSE

1" EPDM x 135.00"

1шт.

16

BN73629

TEE

1" Poly Pipe

1шт.

17

BN53665

BUSHING

1" x .75 Poly

1шт.

18

BN67243

DECAL

Strainer Pressure

1шт.
