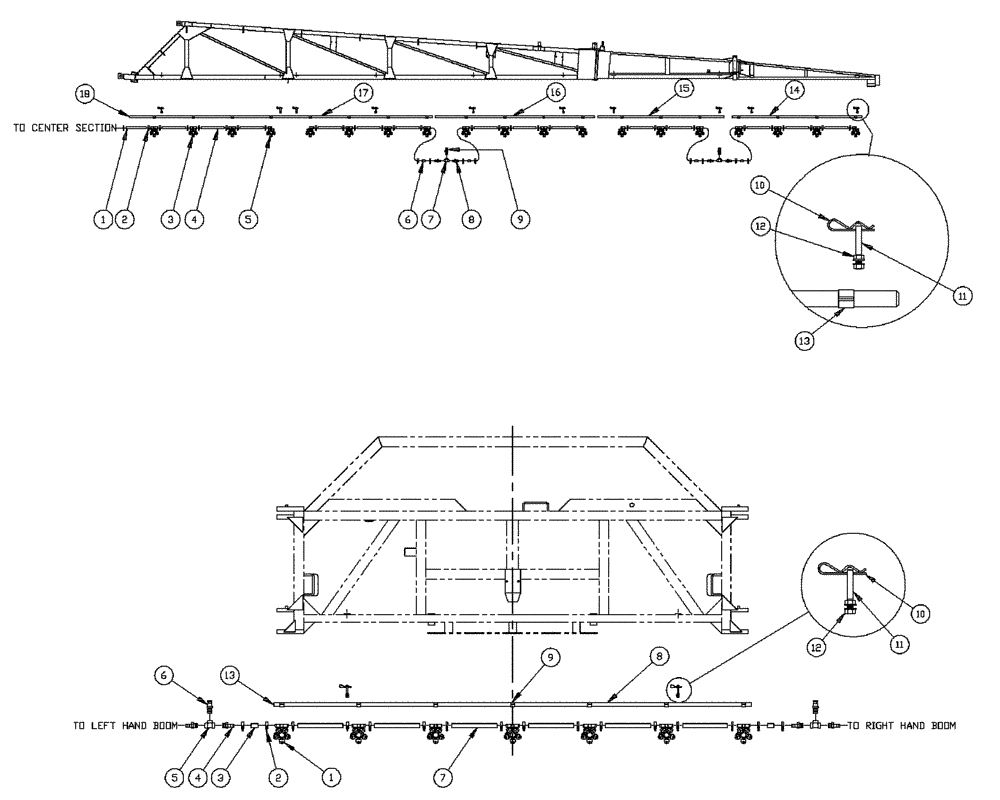

Запчасти Case IH PATRIOT 150 (09-035) - 75 3-BOOM SHUTOFF - 20" ON CENTER - NOZZLES Liquid Plumbing

1

BN53749

HOSE,0.75" ID x 36.00"

1шт.

LH & RH

1шт.

2

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

38шт.

LH & RH

1шт.

3

BN68699

NOZZLE

5 way double, 3/4" SHA

14шт.

Shown

1шт.

LH & RH

1шт.

3

BN74621

NOZZLE

3-Way Double 3/4" SHA

14шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

LH & RH

1шт.

3

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

14шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

LH & RH

1шт.

4

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

14шт.

LH & RH

1шт.

5

BN69475

NOZZLE

5 way single, 3/4" SHA

5шт.

Shown

1шт.

LH & RH

1шт.

5

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

LH & RH

1шт.

5

BN74618

Nozzle - 1-Way Single 3/4" SHA

5шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

LH & RH

1шт.

6

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

4шт.

LH & RH

1шт.

7

BN73629

TEE

1" Poly Pipe

2шт.

LH & RH

1шт.

8

BN53666

FITTING

1 NPT x 3/4 Hose

4шт.

LH & RH

1шт.

9

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

LH & RH

1шт.

10

BN71006

COTTER PIN

1/8", #11

10шт.

LH & RH

1шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

10шт.

LH & RH

1шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

20шт.

LH & RH

1шт.

13

BN74448

CLAMP

1" square tubing

19шт.

LH & RH

1шт.

14

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

1шт.

LH & RH

1шт.

15

BN25937

TUBE

1 x 1 x 12 ga x 66.5 Long

1шт.

LH & RH

1шт.

16

BN24477

TUBE

1" Sq x 81.5"

1шт.

LH & RH

1шт.

17

BN24478

TUBE

1" Sq x 155"

1шт.

LH & RH

1шт.

18

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

8шт.

LH & RH

1шт.

1

BN68699

NOZZLE

5 way double, 3/4" SHA

7шт.

Shown

1шт.

Center

1шт.

1

BN74621

NOZZLE

3-Way Double 3/4" SHA

7шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

Center

1шт.

1

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

7шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

Center

1шт.

2

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

16шт.

Center

1шт.

3

BN53843

HOSE,0.75" ID x 12.50"

2шт.

Center

1шт.

4

BN53666

FITTING

1 NPT x 3/4 Hose

4шт.

Center

1шт.

5

BN73629

TEE

1" Poly Pipe

2шт.

Center

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

2шт.

Center

1шт.

7

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

6шт.

Center

1шт.

8

BN24486

TUBE

1" Sq x 124"

1шт.

Center

1шт.

9

BN74448

CLAMP

1" square tubing

7шт.

Center

1шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

Center

1шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

Center

1шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

Center

1шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.

Center

1шт.
