(09-033) - 75 3-BOOM SHUTOFF - CENTER BOOM

Запчасти Case IH PATRIOT 150 (09-033) - 75 3-BOOM SHUTOFF - CENTER BOOM Liquid Plumbing

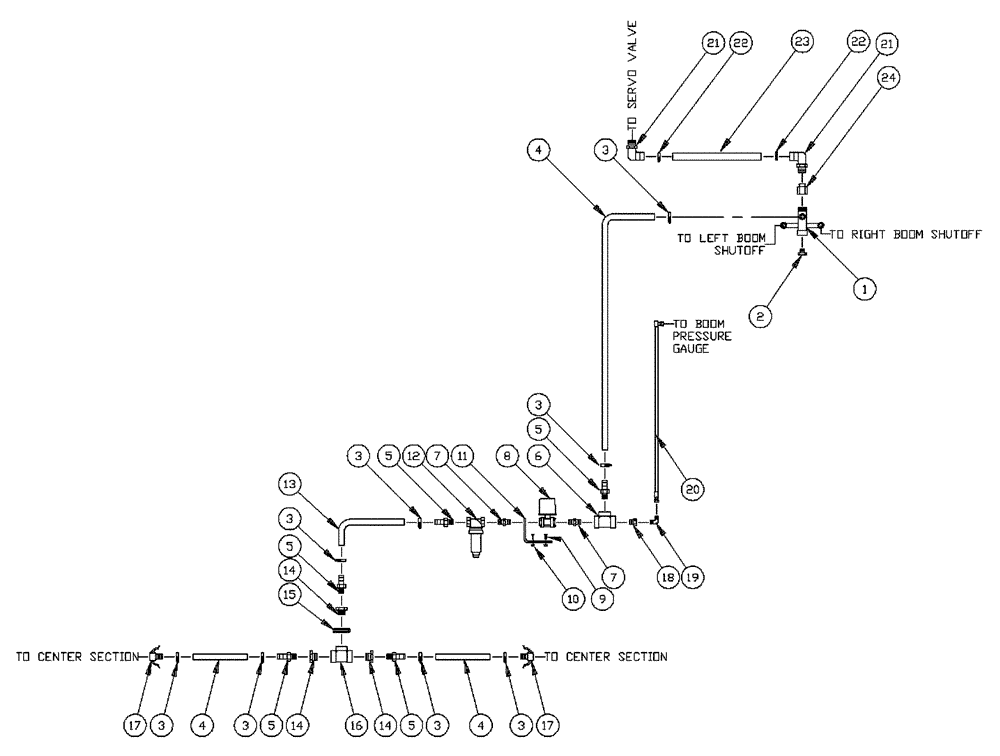

Схема запчастей Case IH PATRIOT 150 - (09-033) - 75 3-BOOM SHUTOFF - CENTER BOOM Liquid Plumbing
21
17
10
3
14
3
17
12
22
1
18
4
14
5
23
3
9
13
5
7
6
20
19
22
2
14
3
8
3
7
3
5
16
11
3
3
5
15
4
21
4
5
24
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN67246

MANIFOLD

3 Outlet

1шт.

2

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

3

BN75990

HOSE CLAMP

#16, Stainless Steel

8шт.

4

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

3шт.

5

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

5шт.

6

BN73629

TEE

1" Poly Pipe

1шт.

7

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

8

87389559

VALVE

Electric, 1" Ball

1шт.

9

BN50211

BOLT

1/4"-20 x .75, HH, G5, PI

2шт.

10

BN50051

NUT,1/4"-20, USR

2шт.

11

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

12

BN73681

FILTER STRAINER

Assembly 1" 50 Mesh

1шт.

12a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

13

BN53743

FLEXIBLE HOSE,1.00" ID x 33.00"

1шт.

12b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

14

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1", Reducer Poly

3шт.

15

BN21276

CLAMP

2 1/2" Muffler

1шт.

16

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

17

BN53668

COUPLING

1" Female, HS SHK

2шт.

18

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

19

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

20

BN67393

HOSE

3/8" ID EPDM x 278"

1шт.

21

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

2шт.

22

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

23

BN53887

HOSE,84.00"

1шт.

24

BN69960

REDUCER,1-1/2" x 1-1/4" Poly Reducing Coupling

1.5 - 1.25

1шт.
