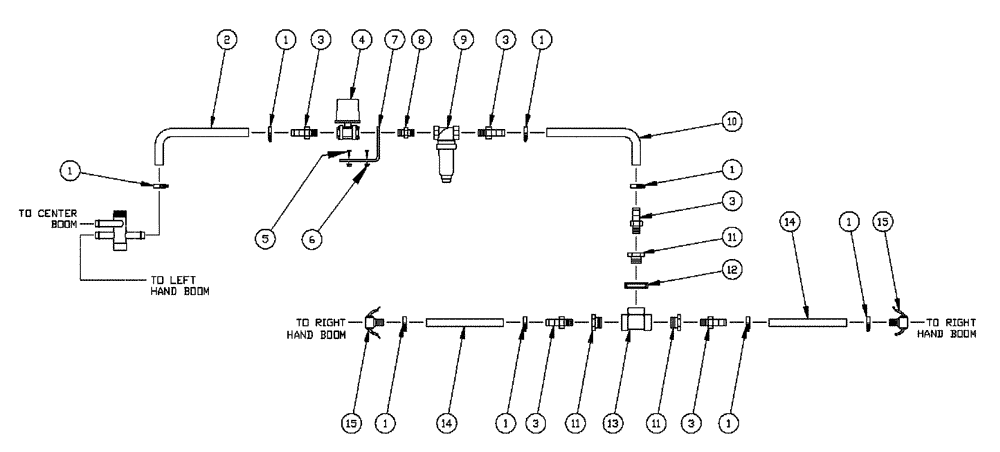

Запчасти Case IH PATRIOT 150 (09-032) - 75 3-BOOM SHUTOFF - RH BOOM Liquid Plumbing

1

BN75990

HOSE CLAMP

#16, Stainless Steel

8шт.

2

BN53758

HOSE,222.00"

1шт.

3

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

5шт.

4

87389559

VALVE

Electric, 1" Ball

1шт.

5

BN50211

BOLT

1/4"-20 x .75, HH, G5, PI

2шт.

6

BN50051

NUT,1/4"-20, USR

2шт.

7

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

8

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

9

BN73681

FILTER STRAINER

Assembly 1" 50 Mesh

1шт.

9a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

10

BN53844

HOSE

EPDM 1" ID x 120"

1шт.

9b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

11

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1.5 x 1", Reducer Poly

3шт.

12

BN21276

CLAMP

2 1/2" Muffler

1шт.

13

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

14

BN53744

FLEXIBLE HOSE,1.00" ID x 65.00"

2шт.

15

BN53668

COUPLING

1" Female, HS SHK

2шт.
