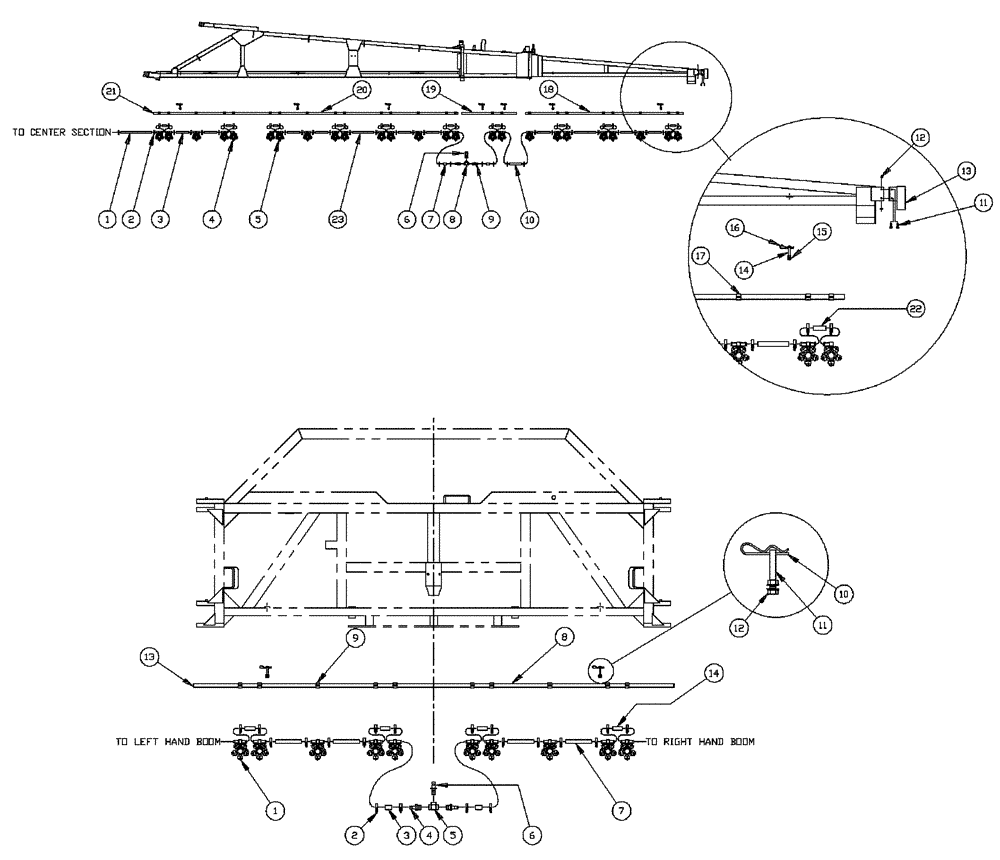

Запчасти Case IH PATRIOT 150 (09-029) - 60 3-BOOM SHUTOFF - 20"/30" ON CENTER - NOZZLES Liquid Plumbing

1

BN53748

HOSE,0.75" ID x 30.00"

EPDM

1шт.

2

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

50шт.

LH & RH

1шт.

3

BN53859

Hose - EPDM 3/4" ID x 13.5"

9шт.

LH & RH

1шт.

4

BN69475

NOZZLE

5 way single, 3/4" SHA

3шт.

Shown

1шт.

LH & RH

1шт.

4

BN74622

NOZZLE

3 way single, with cap, 3/4" SHA

3шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

LH & RH

1шт.

4

BN74618

Nozzle - 1-Way Single 3/4" SHA

3шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

LH & RH

1шт.

5

BN68699

NOZZLE

5 way double, 3/4" SHA

22шт.

Shown

1шт.

LH & RH

1шт.

5

BN74621

NOZZLE

3-Way Double 3/4" SHA

22шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

LH & RH

1шт.

5

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

22шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

LH & RH

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

LH & RH

1шт.

7

BN27905

HOSE,19.05mm ID x 304.8mm L

EPDM 3/4" ID x 12"

2шт.

LH & RH

1шт.

8

BN73629

TEE

1" Poly Pipe

1шт.

LH & RH

1шт.

9

BN53666

FITTING

Hose Barb - 1 NPT x 3/4

2шт.

LH & RH

1шт.

10

BN53749

HOSE,0.75" ID x 36.00"

1шт.

LH & RH

1шт.

11

BN50211

BOLT

1/4"-20 x .75, HH, G5, PI

2шт.

LH & RH

1шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

LH & RH

1шт.

13

BN9265

Foam Marker RH

1шт.

Shown

1шт.

LH & RH

1шт.

13

BN9266

Foam Marker LH

1шт.

Same Part Of Tube Foam Marker RH, P/N BN9265 But Opposite Side

1шт.

LH & RH

1шт.

14

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

7шт.

LH & RH

1шт.

15

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

14шт.

LH & RH

1шт.

16

BN71006

COTTER PIN

1/8", #11

7шт.

LH & RH

1шт.

17

BN74448

CLAMP

1" square tubing

25шт.

LH & RH

1шт.

18

BN89811

TUBE

1" x 1" x 12 GA x 85.25

1шт.

LH & RH

1шт.

19

BN89810

TUBE

1" x 1" 12 GA x 29.50

1шт.

LH & RH

1шт.

20

BN89813

TUBE

1 x 1 x 12 GA SQ x 164.5

1шт.

LH & RH

1шт.

21

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

6шт.

LH & RH

1шт.

22

BN53858

EPDM 3/4" ID x 4.25"

10шт.

LH & RH

1шт.

23

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

2шт.

LH & RH

1шт.

1

BN68699

NOZZLE

5 way double, 3/4" SHA

10шт.

Shown

1шт.

Center

1шт.

1

BN74621

NOZZLE

3-Way Double 3/4" SHA

10шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

Center

1шт.

1

BN74617

NOZZLE

1 way double, with cap, 3/4" SHA

10шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

Center

1шт.

2

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

20шт.

Center

1шт.

3

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

2шт.

Center

1шт.

4

BN53666

FITTING

1 NPTX 3/4

2шт.

Center

1шт.

5

BN73629

TEE

1" Poly Pipe

1шт.

Center

1шт.

6

BN53667

COUPLING

Camlock-Male, Serial Range: (Thd)-Male

1шт.

Center

1шт.

7

BN53859

EPDM 3/4" ID x 13.5"

4шт.

Center

1шт.

8

BN24486

TUBE

1" Sq x 124"

1шт.

Center

1шт.

9

BN74448

CLAMP

1" square tubing

10шт.

Center

1шт.

10

BN71006

COTTER PIN

1/8", #11

2шт.

Center

1шт.

11

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

2шт.

Center

1шт.

12

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

Center

1шт.

13

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

2шт.

Center

1шт.

14

BN53858

EPDM 3/4" ID x 4.25"

4шт.

Center

1шт.
