Запчасти Case IH PATRIOT 150 (09-025) - 60 3-BOOM SHUTOFF - RH BOOM Liquid Plumbing

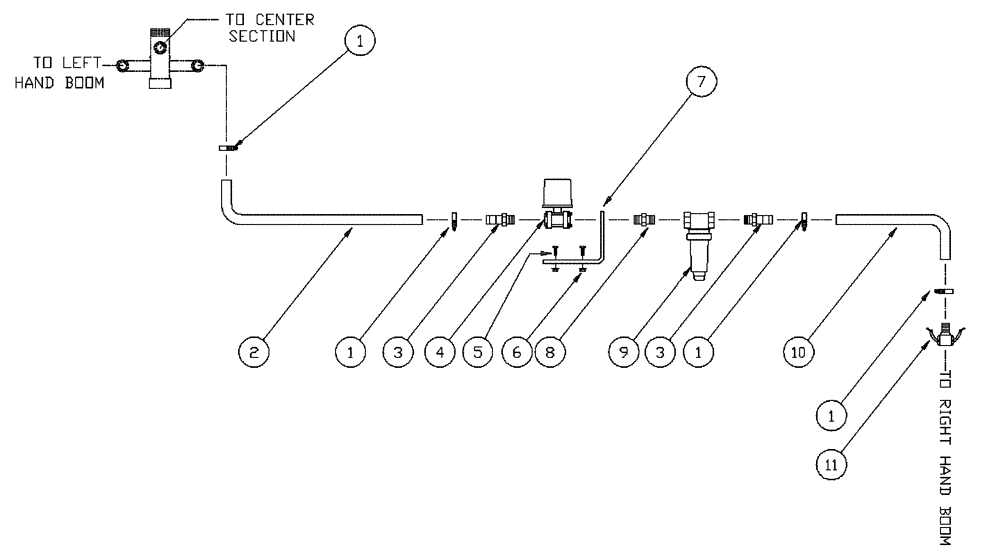

Схема запчастей Case IH PATRIOT 150 - (09-025) - 60 3-BOOM SHUTOFF - RH BOOM Liquid Plumbing
3
1
3
1
9
4
1
1
8
6
2
11
10
7
5

Артикул

Название

Примечание

Количество

1

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

2

BN53758

HOSE,222.00"

1шт.

3

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

4

87389559

VALVE

Electric, 1" Ball

1шт.

5

BN50211

BOLT

1/4"-20 x .75, HH, G5, PI

2шт.

6

BN50051

NUT,1/4"-20, USR

2шт.

7

BN24083

MOUNTING PLATE

7 GA HRS 3.0 x 5.75/2

1шт.

8

BN73648

NIPPLE

1" Short Poly Pipe

1шт.

9

BN73681

FILTER STRAINER

Assembly 1" 50 Mesh

1шт.

10

BN53871

Hose - 1" EPDM x 18.0"

1шт.

9a

BN73679

FILTER STRAINER

SCREEN, 50 MESH

1шт.

11

BN53668

COUPLING

1" Female, HS SHK

1шт.

9b

84222934

SCREEN,80 Mesh Screen

80 MESH

1шт.

Выбрано товаров: 13
