Запчасти Case IH PATRIOT 150 (09-020) - 750 GALLON SPHERICAL - PRODUCT TANK Liquid Plumbing

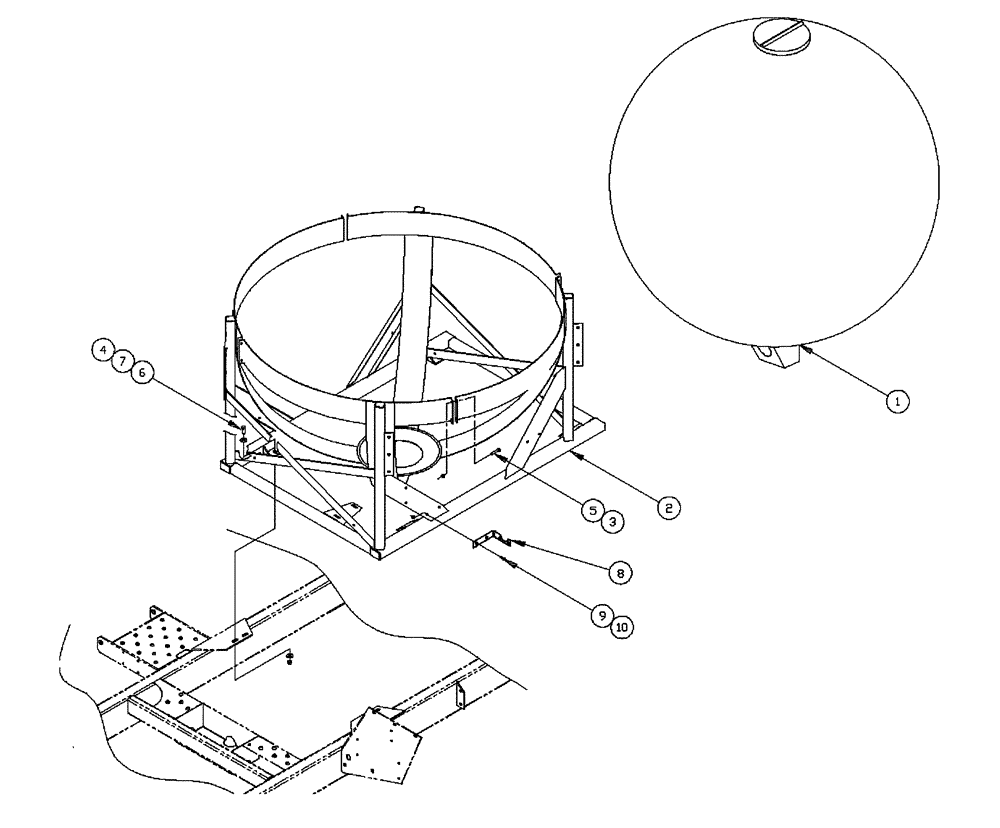

Схема запчастей Case IH PATRIOT 150 - (09-020) - 750 GALLON SPHERICAL - PRODUCT TANK Liquid Plumbing
10
6
3
7
4
9
2
1
5
8

Артикул

Название

Примечание

Количество

1

BN69135

TANK

750 Gallon Spherical

1шт.

1

BN98288

COVER

10", For 500-750 Tank

1шт.

Associated Part Of Tank - 750 Gallon Spherical P/N BN69135

1шт.

2

BN25393

BASKET ASSY

750 Gallon Spherical

1шт.

3

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

8шт.

4

50283

BOLT Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

5

BN50131

LOCK NUT

3/8-16, CTR, PI

8шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

8

BN69411

VALVE

Support 1.5" x 6" Angle

1шт.

9

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

BN50056

LOCK NUT

5/16"-18, Whiz

2шт.

Выбрано товаров: 12
