Запчасти Case IH PATRIOT 150 (09-018) - 750 GALLON SPHERICAL - HYDRAULIC Liquid Plumbing

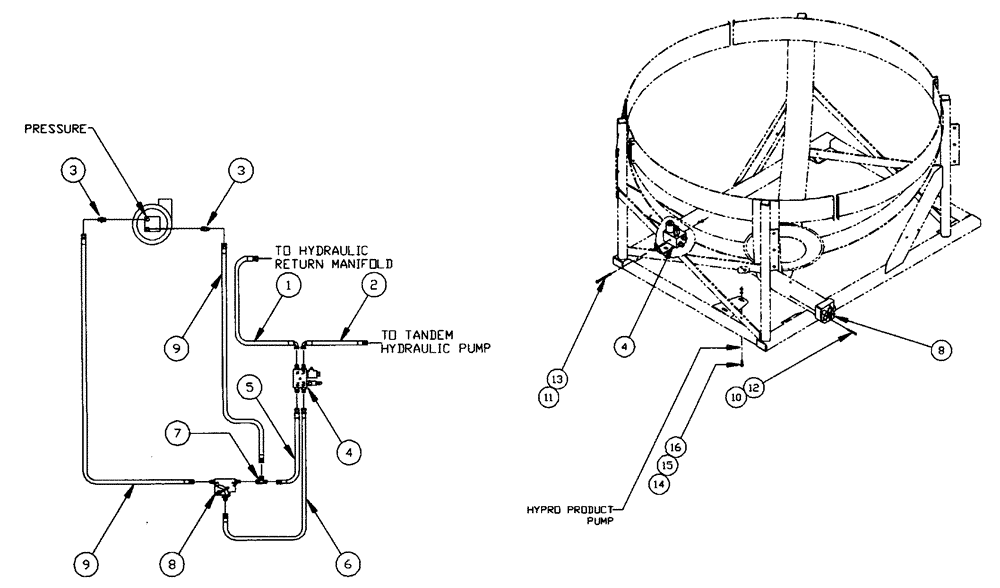

Схема запчастей Case IH PATRIOT 150 - (09-018) - 750 GALLON SPHERICAL - HYDRAULIC Liquid Plumbing
12
9
13
5
2
8
9
14
3
15
1
4
10
6
11
8
7
3
16
4

Артикул

Название

Примечание

Количество

1

BN53968

HOSE

1/2 x 26 100R2

1шт.

2

BN54172

HOSE

1/2" ID x 90" 100R2

1шт.

3

BN441006

ADAPTER

1/2 NPT-8 JIC

2шт.

4

NSS

NOT SOLD SEPARAT

Manifold - Solenoid & Relief Valve

1шт.

See Fig. 06-001

1шт.

5

BN55327

HOSE

1/2 x 26 100R2

1шт.

6

BN55326

HOSE

1/2 x 16 100R2

1шт.

7

BN53452

TEE

JIC - 3/4-16, MI Female

1шт.

8

BN65496

Assembly - Flow Regulator

1шт.

9

BN54238

HOSE

1/2" x 42", 100R2

2шт.

10

BN50534

BOLT

Hex, 1/4"-20 x 2 1/2", G5

2шт.

11

BN66740

SCREW,Hex, 5/16" - 18 x 4", SST

5/16-18 x 4, HH, SS

1шт.

12

BN50051

NUT,1/4"-20, USR

2шт.

13

BN50056

LOCK NUT

5/16"-18, Whiz

1шт.

14

BN50258

BOLT,3/8"-16 X 1.25", Stainless

1шт.

15

BN50146

WASHER,3/8", Stainless

1шт.

16

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

1шт.

Выбрано товаров: 17
