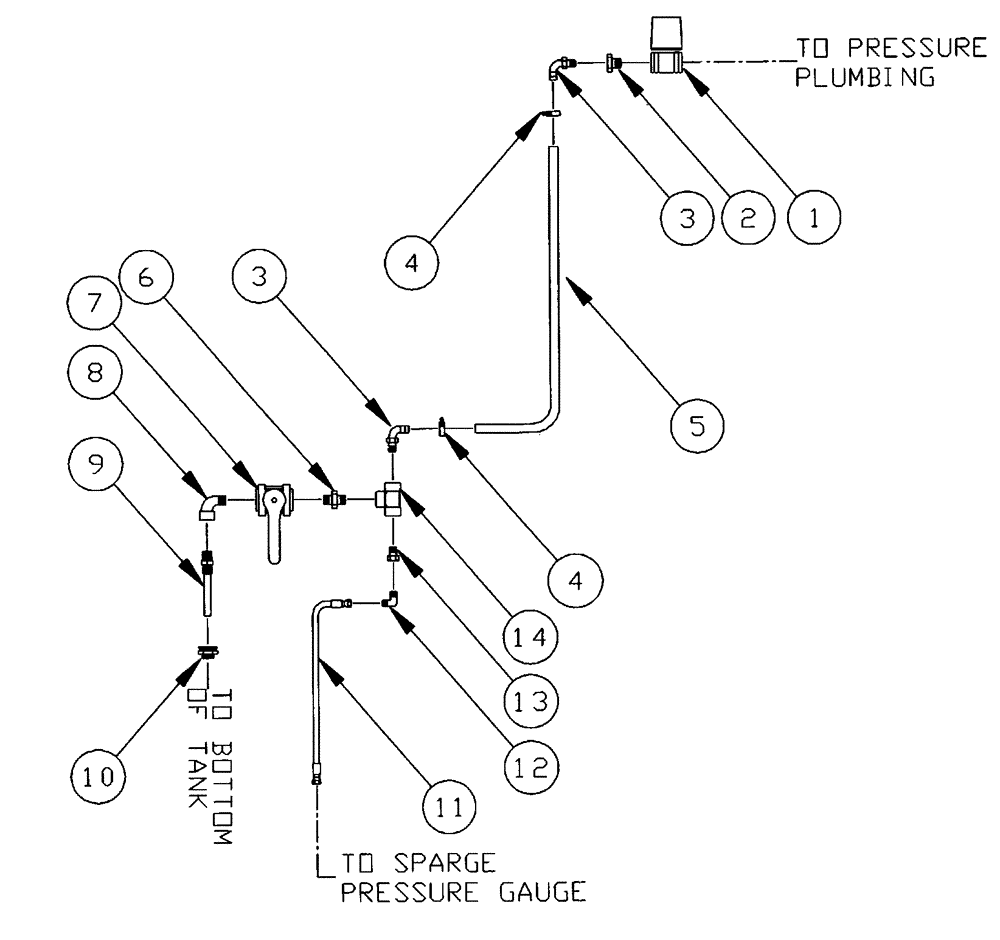

Запчасти Case IH PATRIOT 150 (09-017) - 750 GALLON SPHERICAL - SPARGE Liquid Plumbing

1

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

2

BN53665

BUSHING

1" x .75 Poly

1шт.

3

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

4

BN75978

HOSE CLAMP

SS - #12 ADJ HS .56-1.25

2шт.

5

BN53915

HOSE,0.75" ID x 32.00"

1шт.

6

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

7

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

8

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

9

BN53671

AGITATOR

1шт.

10

BN73563

BULKHEAD

1шт.

11

BN67392

HOSE

3/8" x 144" EPDM

1шт.

12

BN53734

ELBOW

90° 1/4" NPT x 9/16" JIC

1шт.

13

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

14

BN73560

TEE

3/4" NPT, Poly

1шт.
