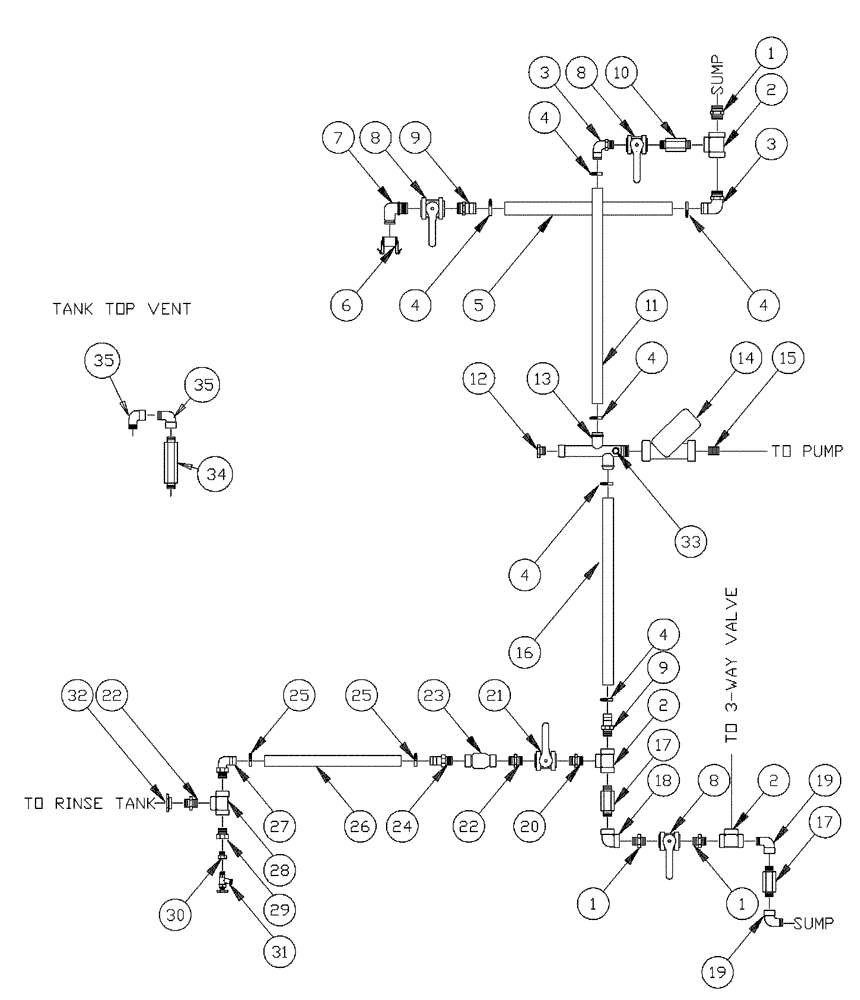

Запчасти Case IH PATRIOT 150 (09-011) - 700 GALLON STAINLESS STEEL - SUCTION Liquid Plumbing
№
Артикул
Название
Примечание
Количество
1
BN73783
NIPPLE
2" NPT Short Poly
3шт.
2
BN73779
TEE,2" Poly Tee
2" Poly Pipe
3шт.
3
401875A1
FITTING,2" Male Thread x 2" 90 Degree Hose Barb
2" MNPT x 2" Hose Barb, Poly
2шт.
4
BN76056
HOSE CLAMP
#36
6шт.
5
BN68378
HOSE,36.00"
EPDM
1шт.
6
BN22901
DUST CAP,2" Cam Lever Dust Cap
2" Cam Lever
1шт.
7
BN25262
ELBOW
90°, 2" NPT
1шт.
8
BN73761
VALVE,2" NPT x 2" NPT
Ball, 2" Full Port
3шт.
9
BN73781
FITTING,2" Male NPT x 2" Hose Barb, Poly
2" NPT x 2" Hose Barb
2шт.
10
BN73790
LUBE NIPPLE
2" NPT x 6" Poly
1шт.
11
BN53847
HOSE,2.00" ID x 23.50"
1шт.
12
BN73731
PLUG,1-1/2" Male NPT, Poly
1 1/2" Poly Pipe
1шт.
13
BN25332
MANIFOLD
2" Inlet SS
1шт.
14
BN73718A
FILTER STRAINER,1-1/2" x 1-1/2" Y Strainer
Assembly 1.5 - 30 Mesh
1шт.
15
BN73320
NIPPLE
1.5" NPT Close, SS
1шт.
16
BN53846
HOSE
2" ID x 18" Suction
1шт.
17
BN73786
NIPPLE
Pipe, Poly, 2" x 4"
2шт.
18
BN73789
FITTING
2" 90° Poly
1шт.
19
BN73785
ELBOW
90º Street 2" Poly
2шт.
20
BN73780
NIPPLE
2" x 1.5 Red Poly
1шт.
21
BN73711
VALVE,1-1/2" NPT x 1-1/2" NPT
1 1/2" Ball
1шт.
22
BN73727
NIPPLE,1-1/2" NPT x 1-1/4" NPT
1.5 x 1.25 Poly
2шт.
23
BN24567
CHECK VALVE
1 1/4" NPT
1шт.
24
87743696
FITTING
1-1/4" NPT X 1-1/4" Hose Barb, Poly
1шт.
25
BN76084
HOSE CLAMP
Adj. #24, SS
2шт.
26
BN24529
Hose-1 1/4 EPDM X 20
1шт.
27
BN73663
ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly
1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly
1шт.
28
BN73662
TEE
1-1/4", Poly
1шт.
29
BN73653
BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly
Reducer, 1-1/4" MPT x 3/4" FPT, Poly
1шт.
30
BN73552
BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing
Bushing - 3/4" x 1/2" NPT
1шт.
31
BN53817
DRAIN VALVE
Plastic 1/2" NPT
1шт.
32
BN73733
FITTING
1 1/2" Bulkhead
1шт.
33
BN73553
PLUG
3/4" NPT, Poly
1шт.
34
BN73685
LUBE NIPPLE
1" x 6" Poly
1шт.
35
BN53682
ELBOW
90 Street 1" Poly
2шт.
Выбрано товаров: 35
