Запчасти Case IH PATRIOT 150 (09-007) - 750 GALLON ELLIPTICAL - SUCTION Liquid Plumbing

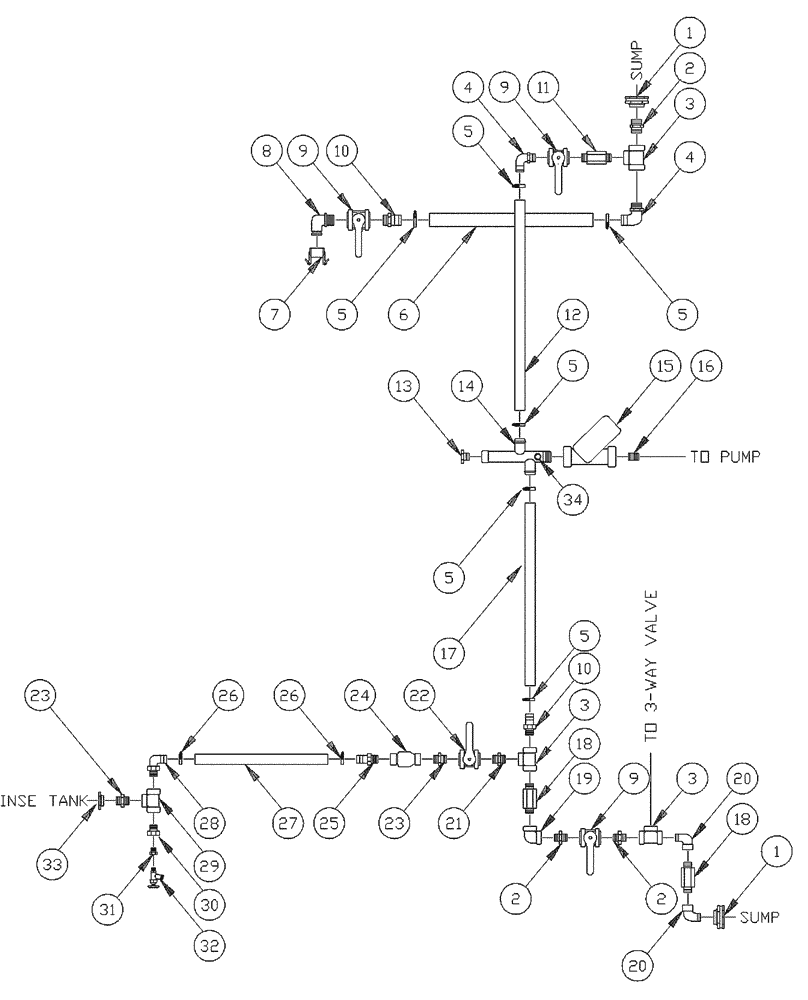

Схема запчастей Case IH PATRIOT 150 - (09-007) - 750 GALLON ELLIPTICAL - SUCTION Liquid Plumbing
9
11
1
17
3
4
12
28
20
31
7
27
24
29
5
8
22
9
19
2
25
5
30
34
10
21
18
1
2
13
26
5
3
16
15
26
4
5
23
33
3
18
9
10
20
5
6
23
2
5
32
14

Артикул

Название

Примечание

Количество

1

BN73784

FITTING

Bulkhead - 2"

2шт.

2

BN73783

NIPPLE

2" NPT Short Poly

3шт.

3

BN73779

TEE,2" Poly Tee

2" Poly Pipe

3шт.

4

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

2шт.

5

BN76056

HOSE CLAMP

#36

6шт.

6

BN68378

HOSE,36.00"

EPDM

1шт.

7

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

8

BN25262

ELBOW

90°, 2" NPT

1шт.

9

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

3шт.

10

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

11

BN73790

LUBE NIPPLE

2" NPT x 6" Poly

1шт.

12

BN53847

HOSE,2.00" ID x 23.50"

1шт.

13

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

14

BN73553

PLUG

3/4" NPT, Poly

1шт.

15

BN73718A

FILTER STRAINER,1-1/2" x 1-1/2" Y Strainer

Assembly 1.5 - 30 Mesh

1шт.

16

BN73320

NIPPLE

1.5" NPT Close, SS

1шт.

17

BN53846

HOSE

2" ID x 18" Suction

1шт.

18

BN73786

NIPPLE

Pipe, Poly, 2" x 4"

2шт.

19

BN73789

FITTING

2" 90° Poly

1шт.

20

BN73785

ELBOW

90º Street 2" Poly

2шт.

21

BN73780

NIPPLE

2" x 1.5 Red Poly

1шт.

22

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

1шт.

23

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

2шт.

24

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

25

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

26

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

27

BN24529

Hose-1 1/4 EPDM X 20

1шт.

28

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

29

BN73662

TEE

1-1/4", Poly

1шт.

30

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

31

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

Bushing - 3/4" x 1/2" NPT

1шт.

32

BN53817

DRAIN VALVE

Plastic 1/2" NPT

1шт.

33

BN73733

FITTING

1 1/2" Bulkhead

1шт.

Выбрано товаров: 33
