Запчасти Case IH PATRIOT 150 (09-003) - 500 GALLON ELLIPTICAL - SUCTION Liquid Plumbing

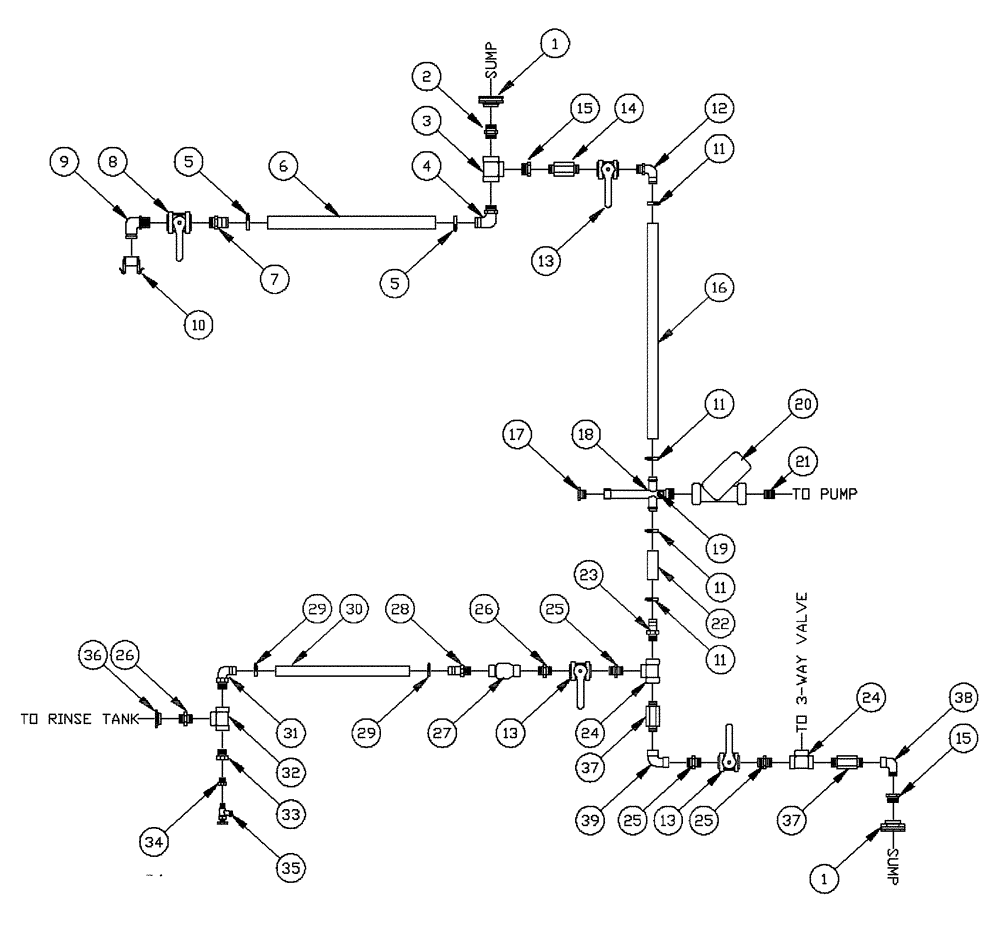

Схема запчастей Case IH PATRIOT 150 - (09-003) - 500 GALLON ELLIPTICAL - SUCTION Liquid Plumbing
17
37
36
16
38
11
19
25
34
30
25
29
27
11
20
37
15
3
13
35
2
15
21
1
33
23
13
10
12
28
8
32
9
5
7
26
18
1
39
24
4
11
26
6
25
24
14
22
5
13
11
29
31

Артикул

Название

Примечание

Количество

1

BN73784

FITTING

Bulkhead - 2"

2шт.

2

BN73783

NIPPLE

2" NPT Short Poly

1шт.

3

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

4

401875A1

FITTING,2" Male Thread x 2" 90 Degree Hose Barb

2" MNPT x 2" Hose Barb, Poly

1шт.

5

BN76056

HOSE CLAMP

#36

2шт.

6

BN68378

HOSE,36.00"

EPDM

1шт.

7

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

8

BN73761

VALVE,2" NPT x 2" NPT

Ball, 2" Full Port

1шт.

9

BN25262

ELBOW

90°, 2" NPT

1шт.

10

BN22901

DUST CAP,2" Cam Lever Dust Cap

2" Cam Lever

1шт.

11

BN76093

HOSE CLAMP

#28, SS

4шт.

12

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

13

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1 1/2" Ball

3шт.

14

BN73722

NIPPLE, LUBE,1-1/2" Male NPT x 1-1/2" Male NPT, 6" Long

NIPPLE 1-1/2" x 6" Poly

1шт.

15

BN73787

SLEEVE

Bushing - 2"-1 1/2"

2шт.

16

BN53763

1.5" EPDM x 14.0

1шт.

17

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

1шт.

18

BN22469

Manifold - 770 Inlet Production

1шт.

19

BN73553

PLUG

3/4" NPT, Poly

1шт.

20

BN73718A

FILTER STRAINER,1-1/2" x 1-1/2" Y Strainer

Assembly 1.5 - 30 Mesh

1шт.

21

BN73320

NIPPLE

1.5" NPT Close, SS

1шт.

22

BN53816

Hose - 1.5" EPDM x 16.5"

1шт.

23

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

1шт.

24

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

2шт.

25

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

3шт.

26

BN73727

NIPPLE,1-1/2" NPT x 1-1/4" NPT

1.5 x 1.25 Poly

2шт.

27

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

28

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

29

BN76084

HOSE CLAMP

Adj. #24, SS

2шт.

30

BN24529

Hose-1 1/4 EPDM X 20

1шт.

31

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

32

BN73662

TEE

1-1/4", Poly

1шт.

33

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

34

BN73552

BUSHING,3/4" MPT x 1/2"FPT Reducing Bushing

Bushing - 3/4" x 1/2" NPT

1шт.

35

BN53817

DRAIN VALVE

Plastic 1/2" NPT

1шт.

36

BN73733

FITTING

1 1/2" Bulkhead

1шт.

37

BN73732

LUBE NIPPLE

1.5" x 4" Poly

2шт.

38

BN73730

ELBOW,1-1/2", Poly

Straight, 1 1/2" Poly

1шт.

39

BN73713

ELBOW,90 Degree Elbow, 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

90° x 1-1/2" Poly

1шт.

Выбрано товаров: 39
