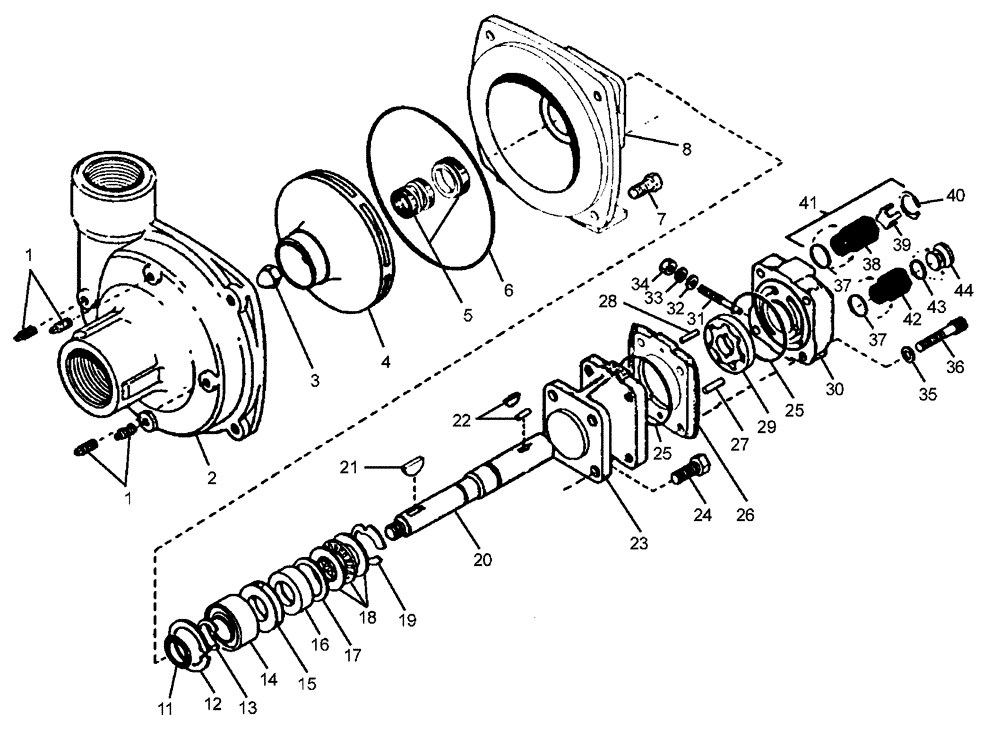

Запчасти Case IH PATRIOT 150 (09-002) - LIQUID PUMP SEAL & GEROTER KITS Liquid Plumbing
№
Артикул
Название
Примечание
Количество
0
BN311826
SEAL KIT
Pump (All Models)
1шт.
Service Parts For P/N BN53670
1шт.
Includes Refs. 3, 5, 6
1шт.
Seal and Geroter Kits
1шт.
0
BN53768
SEAL KIT
Shaft (All Models)
1шт.
Service Parts For P/N BN53670
1шт.
Includes Refs. 11, 12,13, 15, 16, 17, 18, 19 (Seal and Geroter Kits)
1шт.
Seal and Geroter Kits
1шт.
Service Parts For P/N BN53670
1шт.
Includes Refs. 25, 26, 29 (26 & 29 .5" Wide) (Seal and Geroter Kits)
1шт.
Seal and Geroter Kits
1шт.
0
BN53770
REPAIR KIT
Gerotor - HM4 Model
1шт.
Service Parts For P/N BN53670
1шт.
Includes Refs. 25, 26, 29 (26 & 29 .30" Wide) (Seal and Geroter Kits)
1шт.
Seal and Geroter Kits
1шт.
0
BN53692
IMPELLER
#4
1шт.
Service Parts For P/N BN53670
1шт.
0
BN53693
NUT
Impeller #3
1шт.
Service Parts For P/N BN53670
1шт.
0
BN53771
HYDRAULIC MOTOR
HM1
1шт.
Service Parts For P/N BN53670
1шт.
0
BN53772
MOTOR
Hydraulic HM4
1шт.
Service Parts For P/N BN53670
1шт.
1
NSS
NOT SOLD SEPARAT
Drain/Vent Plug (Liquid Pump)
4шт.
2
NSS
NOT SOLD SEPARAT
Pump Casing (Liquid Pump)
1шт.
3
NSS
NOT SOLD SEPARAT
Impeller Nut (Liquid Pump)
1шт.
4
NSS
NOT SOLD SEPARAT
Impeller (Liquid Pump)
1шт.
5
NSS
NOT SOLD SEPARAT
Mechanical Seal (Vitron) 9303 Models
1шт.
6
NSS
NOT SOLD SEPARAT
O-Ring (Liquid Pump)
1шт.
7
NSS
NOT SOLD SEPARAT
Hex Head Capscrew (Liquid Pump)
4шт.
8
NSS
NOT SOLD SEPARAT
Mounting Flange (Liquid Pump)
1шт.
11
NSS
NOT SOLD SEPARAT
Slinger Ring (Liquid Pump
1шт.
12
NSS
NOT SOLD SEPARAT
Retaining Ring (Liquid Pump)
1шт.
13
NSS
NOT SOLD SEPARAT
Snap Ring (Liquid Pump)
1шт.
14
NSS
NOT SOLD SEPARAT
Ball Bearing (Liquid Pump)
1шт.
15
NSS
NOT SOLD SEPARAT
Spacer (Liquid Pump)
1шт.
16
NSS
NOT SOLD SEPARAT
Shaft Seal (Liquid Pump)
1шт.
17
NSS
NOT SOLD SEPARAT
Seal Spacer (Liquid Pump)
1шт.
18
NSS
NOT SOLD SEPARAT
Thrust Bearing Assembly
1шт.
Consists of (1) Thrust Bearing (2) Thrust Bearing Races (Liquid Pump)
1шт.
19
NSS
NOT SOLD SEPARAT
Snap Ring (Liquid Pump)
1шт.
20
NSS
NOT SOLD SEPARAT
Shaft (Liquid Pump)
1шт.
21
NSS
NOT SOLD SEPARAT
Woodruff Key (Liquid Pump)
1шт.
22
NSS
NOT SOLD SEPARAT
Roll Pin (Liquid Pump)
1шт.
23
NSS
NOT SOLD SEPARAT
Front Motor Body (Includes Main Bearing) (Liquid Pump)
1шт.
24
NSS
NOT SOLD SEPARAT
Hex Head Capscrew (Liquid Pump)
4шт.
25
NSS
NOT SOLD SEPARAT
O-Ring (Liquid Pump)
2шт.
26
NSS
NOT SOLD SEPARAT
Gerotor Housing (Liquid Pump)
1шт.
27
NSS
NOT SOLD SEPARAT
Dowel Pin (Liquid Pump)
1шт.
28
NSS
NOT SOLD SEPARAT
Dowel Pin (Liquid Pump)
1шт.
29
NSS
NOT SOLD SEPARAT
Gerotor (Liquid Pump)
1шт.
30
NSS
NOT SOLD SEPARAT
Motor End Plate (Includes Main Bearing) (Liquid Pump)
1шт.
31
NSS
NOT SOLD SEPARAT
Bypass Adjusting Screw (Liquid Pump)
1шт.
32
NSS
NOT SOLD SEPARAT
Gasket (Liquid Pump)
1шт.
33
NSS
NOT SOLD SEPARAT
Washer (Liquid Pump)
1шт.
34
NSS
NOT SOLD SEPARAT
Lock Nut (Liquid Pump)
1шт.
35
NSS
NOT SOLD SEPARAT
Washer (Liquid Pump)
4шт.
36
NSS
NOT SOLD SEPARAT
Capscrew (Liquid Pump)
4шт.
37
NSS
NOT SOLD SEPARAT
O-Ring (Liquid Pump)
2шт.
38
NSS
NOT SOLD SEPARAT
Tank Port Adapter (Liquid Pump)
1шт.
39
NSS
NOT SOLD SEPARAT
Poppet (Liquid Pump)
1шт.
40
NSS
NOT SOLD SEPARAT
Retaining Ring (Liquid Pump)
1шт.
41
NSS
NOT SOLD SEPARAT
Tank Check Valve Assembly
1шт.
Consists of (1) O-Ring (1) Tank Port Adapter (1) Poppet (1) Retaining Ring (Liauid Pump)
1шт.
42
NSS
NOT SOLD SEPARAT
Pressure Port Adapter (Liquid Pump)
1шт.
43
NSS
NOT SOLD SEPARAT
Orifice O-Ring (Liquid Pump)
1шт.
44
NSS
NOT SOLD SEPARAT
Metering Orifice (Liquid Pump)
1шт.
Выбрано товаров: 68
