Запчасти Case IH PATRIOT 150 (06-013) - SHIFT BLOCK-REPLACEMENT PARTS S/N 1882 & BELOW Hydraulic Plumbing

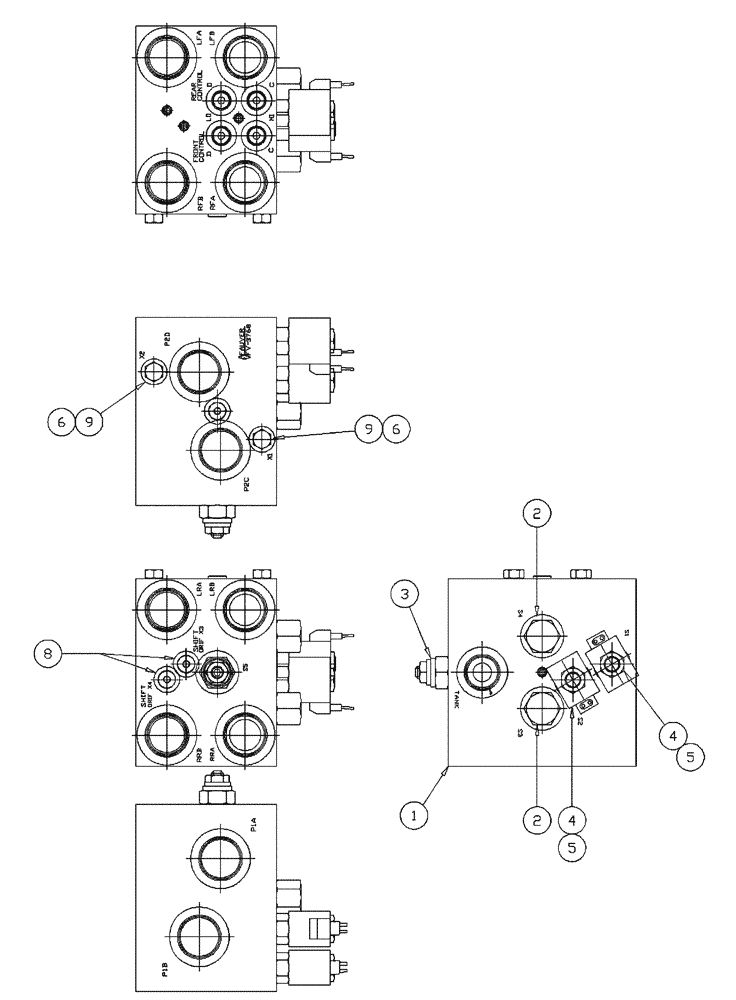

Схема запчастей Case IH PATRIOT 150 - (06-013) - SHIFT BLOCK-REPLACEMENT PARTS S/N 1882 & BELOW Hydraulic Plumbing
4
4
5
3
5
2
9
6
8
6
1
9
2

Артикул

Название

Примечание

Количество

1

BN98584

MANIFOLD

Swiss Cheese

1шт.

2

BN98209

HYDRAULIC VALVE

Shuttle

2шт.

2

BN98213

SEAL KIT

for BN98209

2шт.

Service Parts For Ref. 2

1шт.

3

BN98210

VALVE PRESSURE RELIE

1шт.

3

BN98214

SEAL KIT

for BN98210

1шт.

Service Parts For Ref. 3

1шт.

4

BN98585

CARTRIDGE

Solenoid

2шт.

4

BN98586

SEAL KIT

for BN98585

2шт.

Service Parts For Ref. 4

1шт.

5

BN98212

COIL

12 VDC Unloader Valve - W/Wire Leads & Packard Ends

2шт.

6

BN53991

PLUG

Hex, with O-Ring

5шт.

6

BN98469

O-RING

5шт.

Associated Part Of Hex Plug with O-Ring, P/N BN53991

1шт.

8

BN300314

ORIFICE

.020 shift

2шт.

9

BN300313

ORIFICE

.070 Load Share

2шт.

Выбрано товаров: 16
