Запчасти Case IH PATRIOT 150 (06-005) - HYDRAULIC PLUMPING-WHEEL MOTORS (S/N 571-1120) Hydraulic Plumbing

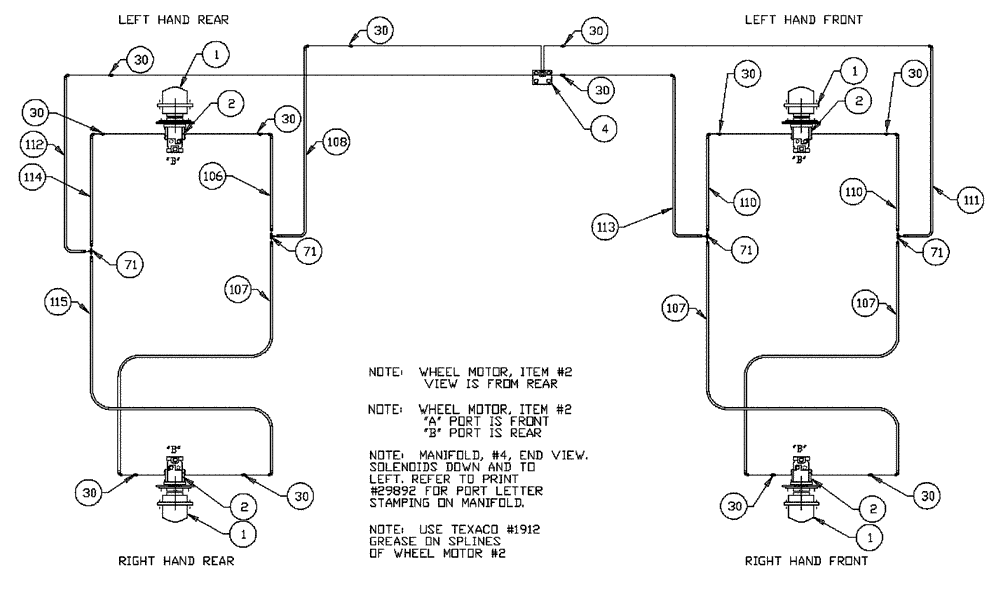

Схема запчастей Case IH PATRIOT 150 - (06-005) - HYDRAULIC PLUMPING-WHEEL MOTORS (S/N 571-1120) Hydraulic Plumbing
30
112
113
30
30
0
114
71
30
2
1
1
108
71
30
107
107
71
2
107
30
115
1
30
1
2
110
30
106
30
30
71
2
30
4
110
111

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hub-Planetary-Front Model #7

2шт.

See Fig. 05-001 for Seals & Repair Parts

1шт.

1

NSS

NOT SOLD SEPARAT

Hub-Planetary-Rear W/Brake Model #7

2шт.

Indicates Old Part Number Or Can Order Newer Part Number Listed Above

1шт.

See Fig. 05-001 for Seals & Repair Parts

1шт.

1a

NSS

NOT SOLD SEPARAT

Cap - Hub Cover

4шт.

Associated Part Of Hub - Planetary - Rear w/Brake Model #7

1шт.

2

NSS

NOT SOLD SEPARAT

Wheel Motor

4шт.

See Fig. 06-001

1шт.

4

BN69418

BLOCK

Valve-Manifold

1шт.

See Fig. 06-014 for Seals & Repair Parts

1шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

12шт.

30a

BN98019

O-RING

#6

12шт.

Associated Part Of Adapter STR - 9 /16-18 O-Ring 7/16-20 JIC, P/N BN51589

1шт.

71

BN21422

TEE

7/16-20 JIC

4шт.

106

BN54233

HOSE

1/4"x 87"

1шт.

107

BN54232

HOSE

1/4" x 119", 100R1

3шт.

108

BN54149

HOSE,0.25" ID x 132.00", SAE 100R1

1шт.

110

BN54177

HOSE

1/4" ID x 96", 100R1

2шт.

111

BN54152

HOSE,0.25" ID x 42.00", SAE 100R1

1шт.

112

BN54211

HOSE

1/4" x 132", long 90° elbow

1шт.

113

BN54212

HOSE

1 /4" x 42", long 90° elbow

1шт.

114

BN54230

HOSE

1/4"x 93"

1шт.

115

BN54217

HOSE

1/4"x 113"

1шт.

Выбрано товаров: 24
