Запчасти Case IH PATRIOT 150 (06-002) - HYDRAULIC PLUMPING-HYDROSTATIC PUMP-7 BANK VALVE Hydraulic Plumbing

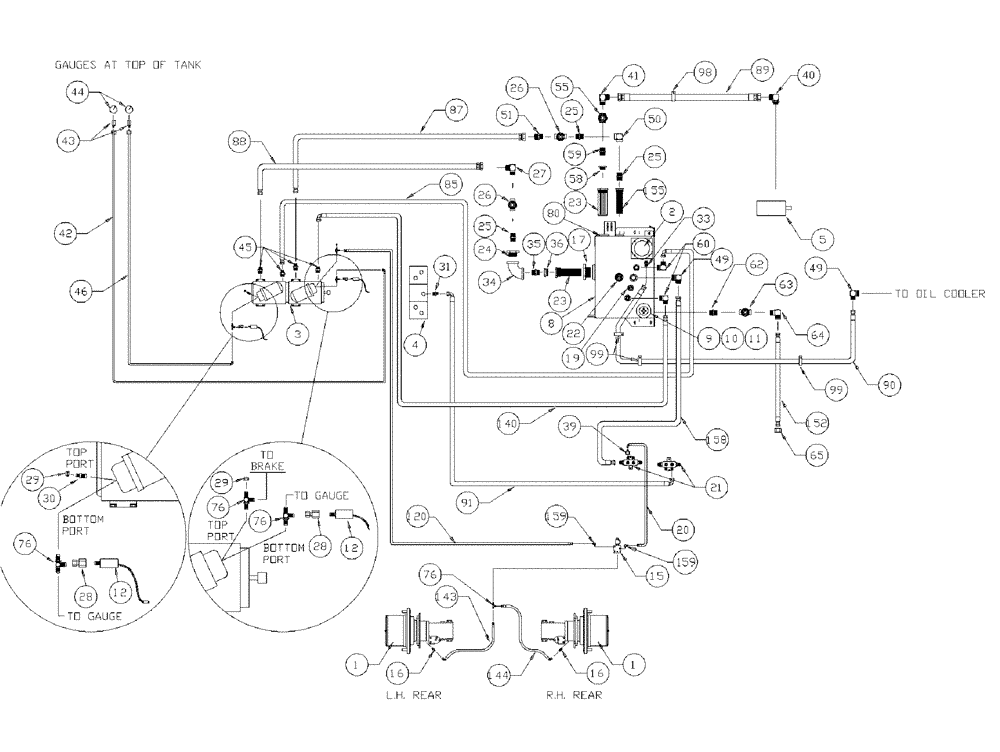

Схема запчастей Case IH PATRIOT 150 - (06-002) - HYDRAULIC PLUMPING-HYDROSTATIC PUMP-7 BANK VALVE Hydraulic Plumbing
9
17
89
25
49
28
65
90
55
30
28
40
88
76
10
11
16
1
43
31
29
60
50
99
2
26
19
45
43
87
39
36
58
29
5
76
159
158
44
1
159
22
98
76
20
26
20
41
27
49
23
63
76
55
80
3
35
51
64
33
40
62
23
16
21
85
12
15
46
12
42
8
91
25
99
44
4
25
24
59
152
34

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Hub-Power Wheel

2шт.

See Fig. 05-001

1шт.

1a

NSS

NOT SOLD SEPARAT

Cap-Hub Cover

2шт.

Associated Part Of Hub - Power Wheel

1шт.

See Fig. 05-001

1шт.

2

NSS

NOT SOLD SEPARAT

Filter - Intank (Complete)

1шт.

See Fig. 06-015

1шт.

3

BN66375

HYDROSTATIC PUMP

Tandem, Relief Valve Style

1шт.

3a

N14232

FILTER

Element, Spin On

2шт.

Service Parts For Ref. 3

1шт.

All 90 Series

1шт.

3b

BN300952

KIT

Charge Relief

2шт.

Service Parts For Ref. 3

1шт.

3c

BN67191

VALVE PRESSURE RELIE

Sundstrand #8510022-2

4шт.

Service Parts For Ref. 3

1шт.

All 90 Series

1шт.

3d

BN65541

O-RING

M/F Valve Upper

4шт.

Service Parts For Ref. 3

1шт.

All 90 Series

1шт.

3e

BN65542

O-RING

M/F Valve Lower

4шт.

Service Parts For Ref. 3

1шт.

All 90 Series

1шт.

3f

BN68558

GASKET

Control Body 55 CC

2шт.

Service Parts For Ref. 3

1шт.

3g

BN68559

RING

Shaft 55 CC

1шт.

Service Parts For Ref. 3

1шт.

3h

BN68560

SEAL

Lip - Shaft 55 CC

1шт.

Service Parts For Ref. 3

1шт.

3j

BN68561

CONTROL

(Complete) 55 CC

2шт.

Service Parts For Ref. 3

1шт.

3k

BN68470

O-RING

Filter Head

2шт.

Service Parts For Ref. 3

1шт.

All 90 Series

1шт.

3l

BN69597

FILTER HEAD

Filter, Head Only

2шт.

Service Parts For Ref. 3

1шт.

All 90 Series

1шт.

3m

BN67479

HANDLE

SS 90 Series Pump

2шт.

Service Parts For Ref. 3

1шт.

3n

BN68508

O-RING

control shaft

2шт.

Service Parts For Ref. 3

1шт.

All 90 Series

1шт.

4

BN69418

BLOCK

Valve - Manifold

1шт.

See Fig. 06-014 for Seals & Repair Parts

1шт.

5

BN66379

PUMP

Tandem/Steering & Spray Motor- LH Rotation

1шт.

See Fig. 06-001

1шт.

5a

BN98608

SEAL

shaft, for BN27195

1шт.

Service Parts For Ref. 5

1шт.

8

BN65567

TANK

HYD. Oil

1шт.

8a

BN53951

THERMOSTATIC SWITCH

N.C.180 Degree

1шт.

Associated Part Of Tank - Hydraulic Oil, P/N BN65567

1шт.

8b

BN52319

PLUG

Magnetic 1/2" NPT

1шт.

Service Parts For Ref. 8

1шт.

9

BN53958

BREATHER

Spin On, Breather

1шт.

10

BN54257

1 x 30

1шт.

11

BN75990

HOSE CLAMP

#16, Stainless Steel

1шт.

12

BN53950

SENSOR

Pressure, N.O.200 PSI

2шт.

15

BN29955

SOLENOID

Valve, Brake Actuator

1шт.

15a

BN98420

SEAL KIT

for BN29955

1шт.

Service Parts For Ref. 15

1шт.

15b

BN98421

CARTRIDGE

for BN29955

1шт.

Service Parts For Ref. 15

1шт.

15c

BN98422

COIL

solenoid valve

1шт.

Service Parts For Ref. 15

1шт.

15d

BN98423

VALVE BODY

for BN29955

1шт.

Service Parts For Ref. 15

1шт.

16

BN444005

FITTING

Adapter STR - 7/16-20 O-Ring x 7/16-20 JIC

2шт.

16a

BN98094

O-RING

#4

2шт.

Associated Part Of Adapter STR - 7/16-20 O-Ring x 7/16-20 JIC, P/N BN444005

1шт.

17

BN72540

Bushing - 3 x 4 Steel

1шт.

19

BN72220

PLUG

3/4" NPT Drain

1шт.

20

BN54236

HOSE,0.25" ID x 91.00", SAE 100R1

1шт.

21

BN67245

MANIFOLD

Hyd. Return

2шт.

22

BN65198

SWITCH

Level Assembly

1шт.

22a

BN16056

SEAL

Packard Plug

2шт.

Parts Of Switch Assembly, P/N BN65198

1шт.

22b

BN16057

ELEC. TERMINAL PIN,8 mm

Male Packard

2шт.

Parts Of Switch Assembly, P/N BN65198

1шт.

22c

BN16196

HYD CONNECTOR

2-Way

1шт.

Parts Of Switch Assembly, P/N BN65198

1шт.

22d

BN52326

RETAINER

Seal

1шт.

Parts Of Switch Assembly, P/N BN65198

1шт.

22e

BN53956

SWITCH

Float Level

1шт.

Parts Of Switch Assembly, P/N BN65198

1шт.

22f

BN64004

TUBE

Level Switch

1шт.

Parts Of Switch Assembly, P/N BN65198

1шт.

23

BN25877

FILTER STRAINER

In-Line 50 GPM 100 Mesh

2шт.

24

BN72470

FITTING

2" x 1 1/4" Reducer

1шт.

25

BN51952

COUPLING

male, 1-1/4"

3шт.

26

BN2006

Gate Valve, 1 1/4 NPT

2шт.

27

BN52318

ADAPTER

90° 1 1/4" NPT X 1 5/8" - 12 JIC

1шт.

28

BN53961

ADAPTER

Int. Pipe-37 Flare

2шт.

29

BN21531

NUT,7/16"-20, 37 Degree

2шт.

30

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

1шт.

30a

BN98019

O-RING

#6

1шт.

Associated Part Of Adapter STR - 9/16-18 O-Ring x 7/16-20 JIC, P/N BN51589

1шт.

31

BN444003

FITTING

Adapter Str.-1 1/16-12 O-Ring x 3/4-16 JIC

1шт.

31a

BN98017

O-RING

SAE-12 Buna N

1шт.

Associated Part Of Adapter STR - 7/16-20 O-Ring x 7/16-20 JIC, P/N BN444005

1шт.

31b

BN22432

FITTING

Barb Str 1" NPT x 1" Hose

1шт.

Associated Part Of Adapter STR - 1-1/16-12 O-Ring x 3/4-16 JIC, P/N BN444003

1шт.

33

BN55352

ADAPTER

1 5/8-12O-Ring x 1 1/16-12 JIC

1шт.

34

BN72459

2" NPT x 90°

1шт.

35

BN72450

LUBE NIPPLE

LUBRICATOR 2 X close BI

1шт.

36

58188

UNION

SPARE PART Adapter - 2" x 3"

1шт.

39

BN53714

FITTING

Reducer - 3/4-16 JIC F x 7/16-20 JIC M

1шт.

40

BN52037

ADAPTER

90º OR 37 FL20-24

1шт.

40a

BN98016

O-RING

SAE-16 Buna N

1шт.

Associated Part Of Adapter - 90°, P/N BN52037

1шт.

41

BN52036

FITTING

Adapter, 1 1/2" NPT X 1 7/8"-12 JIC

1шт.

42

BN58127

HOSE,0.25" ID x 46.00"

1шт.

43

BN53962

FITTING

Bulkhead

2шт.

44

BN13821

GAUGE

pressure 0-600 psi

2шт.

45

BN53918

ADAPTER

flat face x Or x 4.1

4шт.

45a

BN53730

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

Associated Part Of Adapter - Flat Face, P/N BN53918

1шт.

45b

BN98016

O-RING

SAE-16 Buna N

4шт.

Associated Part Of Adapter - Flat Face, P/N BN53918

1шт.

46

BN58128

HOSE,0.25" ID x 61.00"

1шт.

49

BN67881

ADAPTER

90º 1" NPT x #16 JIC

2шт.

50

BN51530

FITTING

90° 1 1/4" NPT x 1/4" NPT

1шт.

51

BN55325

ADAPTER

1 1/4" NPT x 1 5/8"-12 JIC

1шт.

55

BN51497

HYDRAULIC VALVE

Gate - 1" x 1 1/2 NPT

1шт.

58

BN72471

BUSHING

2" x 1 1/2"

1шт.

59

BN52034

1 1/2"

1шт.

60

BN442004

FITTING

90° 3/4" NPT x 1 1/16-12 JIC

2шт.

62

BN51656

ADAPTER

STR

1шт.

63

BN21372

VALVE

Gate, 1" NPT

1шт.

64

BN53809

ELBOW

Adaptor, 90°

1шт.

65

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

76

BN21866

TEE,9/16"-18 O-Ring x 7/16:-20, 37 Degree

4шт.

76a

BN98019

O-RING

#6

4шт.

Associated Part Of Adapter, P/N BN21866

1шт.

80

BN53957

GAUGE

Sight

1шт.

85

BN53583

HOSE,0.75" ID x 48.00"

1шт.

87

BN52043

HOSE,1.25" ID x 30.00"

1шт.

88

BN52041

HOSE

1 1/4" x 35"

1шт.

89

BN52044

HOSE,38.1mm ID x 1828.8mm L

1 1/2" x 72"

1шт.

90

BN69757

HOSE

1" x 46"

1шт.

91

BN53967

HOSE ASSY.

1/2" x 60"

1шт.

98

BN52035

CLAMP

2" Dia., Vinyl Coated

1шт.

99

BN570018

CLAMP

vinyl coated 1-7/16

3шт.

120

BN54184

HOSE

1/4" x 124"

1шт.

140

BN53443

HOSE,19.05mm ID x 1778mm L

1шт.

143

BN54151

Hose Assembly, 1/4" x 82"

2шт.

144

BN54176

HOSE

1/4" x 125"

1шт.

152

BN54199

HOSE,0.75" ID x 30.00", SAE 100R1

1шт.

155

BN24148

FILTER STRAINER

25 gpm, 100 Mesh

1шт.

158

BN67876

HOSE

1" x 93", 100R3

1шт.

159

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

2шт.

Выбрано товаров: 149
