(07-007) - HYDRAULIC CYLINDER-BOOM LEVEL (60 & 75 BOOM)

Запчасти Case IH PATRIOT 150 (07-007) - HYDRAULIC CYLINDER-BOOM LEVEL (60 & 75 BOOM) Cylinders

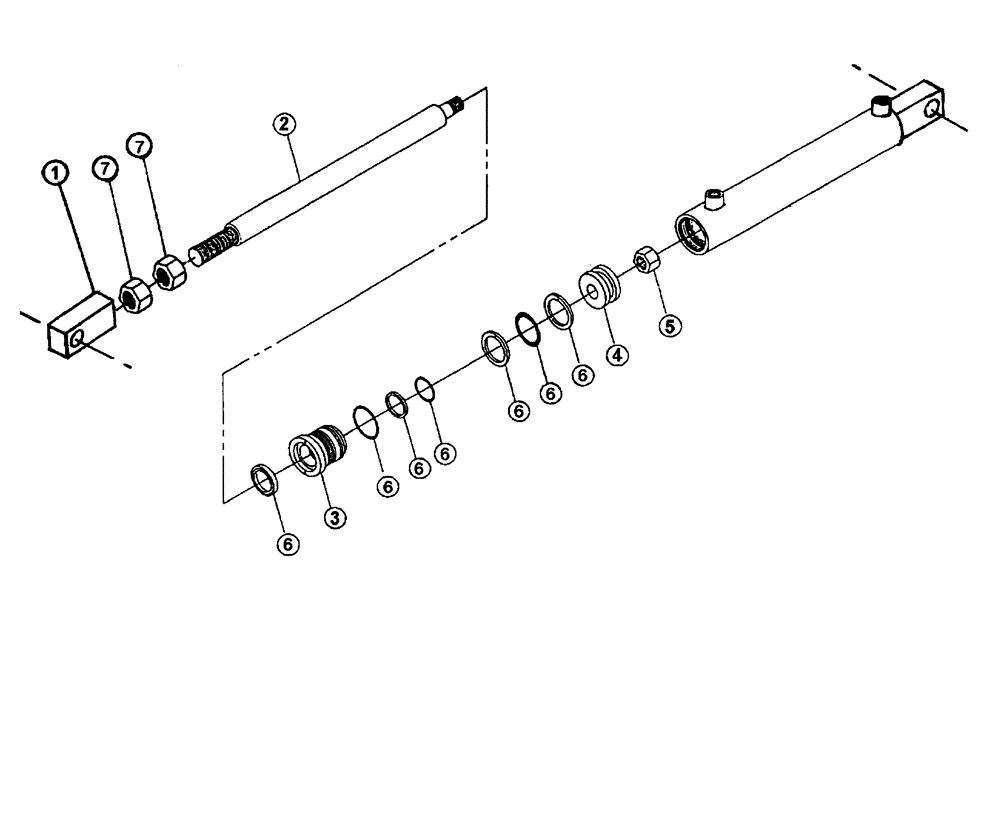

Схема запчастей Case IH PATRIOT 150 - (07-007) - HYDRAULIC CYLINDER-BOOM LEVEL (60 & 75 BOOM) Cylinders
2
6
6
6
1
6
4
3
5
6
6
7
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

BN53806

CYLINDER

Hydraulic w/Clevis (Complete)

1шт.

1

BN98519

CLEVIS

for cylinder BN53806

1шт.

2

BN98520

ROD

for cylinder BN53806

1шт.

3

BN98517

GLAND

end

1шт.

4

BN98518

PISTON

for cylinder BN53806

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

BN98340

SEAL KIT

1шт.

Parts Shown In This Kit Are For The Screw On End Gland. When Replacing - Take Note On How Old Seals Are Positioned

1шт.

7

BN98521

Nut

2шт.
