Запчасти Case IH PATRIOT 150 (07-004) - HYDRAULIC CYLINDER-INNER BOOM FOLD (90BOOM) Cylinders

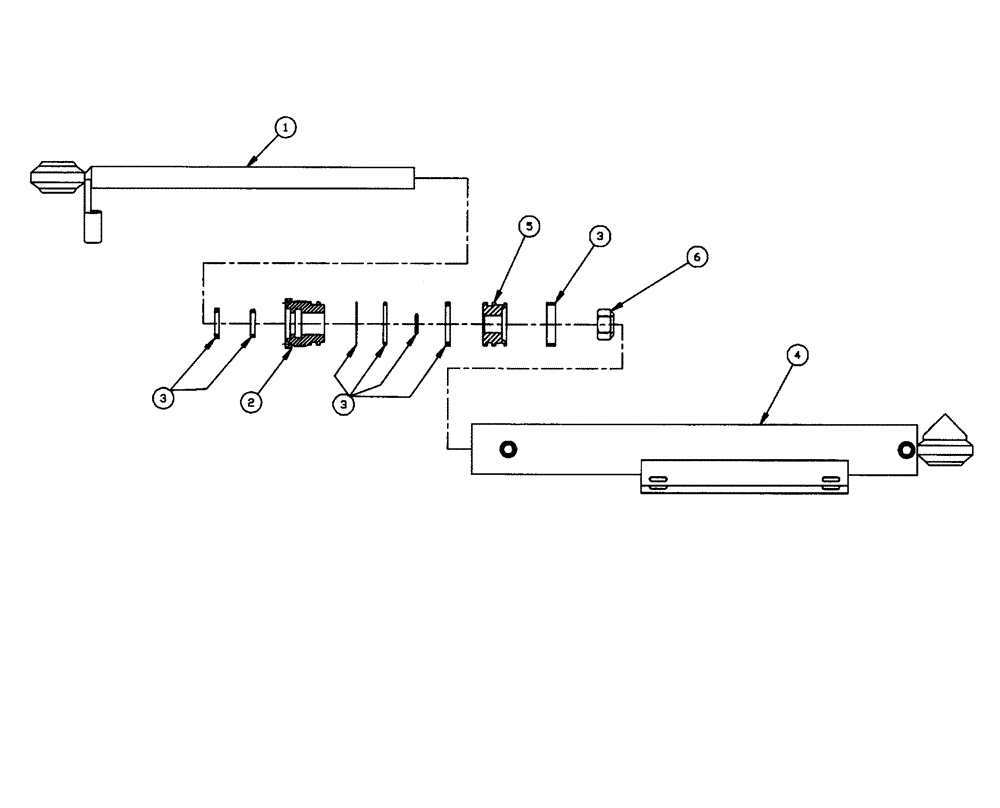

Схема запчастей Case IH PATRIOT 150 - (07-004) - HYDRAULIC CYLINDER-INNER BOOM FOLD (90BOOM) Cylinders
4
3
2
3
6
5
3
1

Артикул

Название

Примечание

Количество

0

BN324159

CYLINDER

Hydraulic (Complete) RH

1шт.

0

BN68750

CYLINDER ASSY.

Hydraulic (Complete) LH

1шт.

1

BN69903

SHAFT

RH

1шт.

1

BN69904

SHAFT

LH

1шт.

Same Part Of Rod - RH, P/N BN69903 But Opposite Side

1шт.

2

BN69786

GLAND

End

1шт.

3

BN69787

SEAL KIT

1шт.

Parts Shown In This Kit Are For The Screw On End Gland. When Replacing - Take Note On How Old Seals Are Positioned

1шт.

4

BN69908

TUBE RH

1шт.

4

BN69905

TUBE LH

1шт.

Same Part Of Tube, RH, P/N BN69908 But Opposite Side

1шт.

5

BN69789

PISTON

1шт.

6

BN69790

LOCK NUT

Lock

1шт.

Выбрано товаров: 13
