(07-003) - HYDRAULIC CYLINDER-INNER BOOM FOLD (60 AND 75 BOOM)

Запчасти Case IH PATRIOT 150 (07-003) - HYDRAULIC CYLINDER-INNER BOOM FOLD (60 AND 75 BOOM) Cylinders

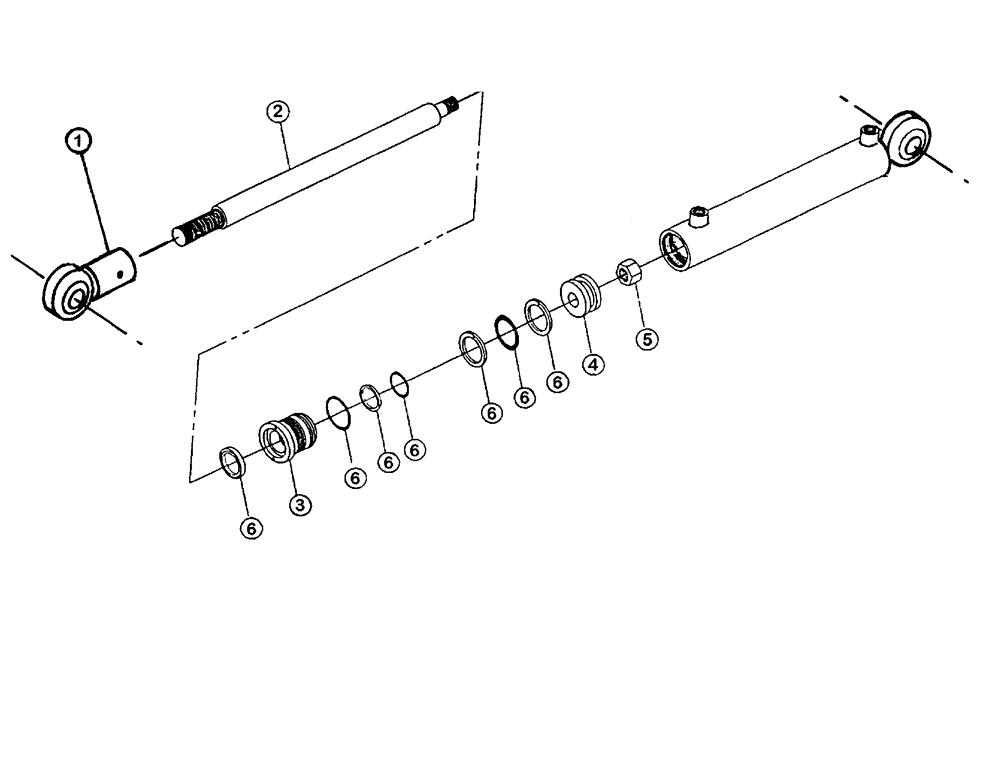

Схема запчастей Case IH PATRIOT 150 - (07-003) - HYDRAULIC CYLINDER-INNER BOOM FOLD (60 AND 75 BOOM) Cylinders
6
3
2
1
6
4
6
6
6
6
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

87271296

CYLINDER

Hydraulic w/Clevis (Complete)

1шт.

87271296R

REMAN-HYD CYLINDER

PATRIOT 150 (6/97-7/98)

1шт.

87271296C

CORE-HYD CYLINDER

Return Number

1шт.

1

BN98291

ASSEMBLY

1шт.

2

BN98515

SHAFT

Cylinder

1шт.

3

BN98522

GLAND

End, For Cylinder BN52305

1шт.

4

BN98523

PISTON

for cylinder BN52305

1шт.

5

BN98093

LOCK NUT

Jam, 3/4"-16

1шт.

6

BN68490

SEAL KIT

1шт.

Parts Shown In This Kit Are For The Screw On End Gland. When Replacing - Take Note On How Old Seals Are Positioned

1шт.
